Description

Price

3

Flat Washer

224061201

$1.37

4

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

5

Hex. Flange Screw M6 X 20, Scotch Grip

250000331

$2.11

7

Oetiker Gear Clamp

293650043

$3.39

8

Crimp Clamp

293650099

$4.29

9

Spring Clamp

414415200

$0.88

10

Spring Clamp

414420700

$0.72

11

Spring Clamp

414554800

$0.88

12

Tubing 10 MM 1000MM Long

219704407

$2.79

15

NOTICE DECAL, OIL - Call your local BRP dealership

516005528

Unavailable

18

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

20

Bracket

519000179

$10.49

21

Spring

519000196

$9.69

23

Polyurethane Hose 10000Mm Long

219704410

$56.99

25

Cap

519000216

$7.29

29

Oil Filter

519000242

$13.77

30

Oil Filter

519000242

$13.77

32

Cap

519000273

$28.99

38

Oil Tank Ass'y

519000298

Unavailable

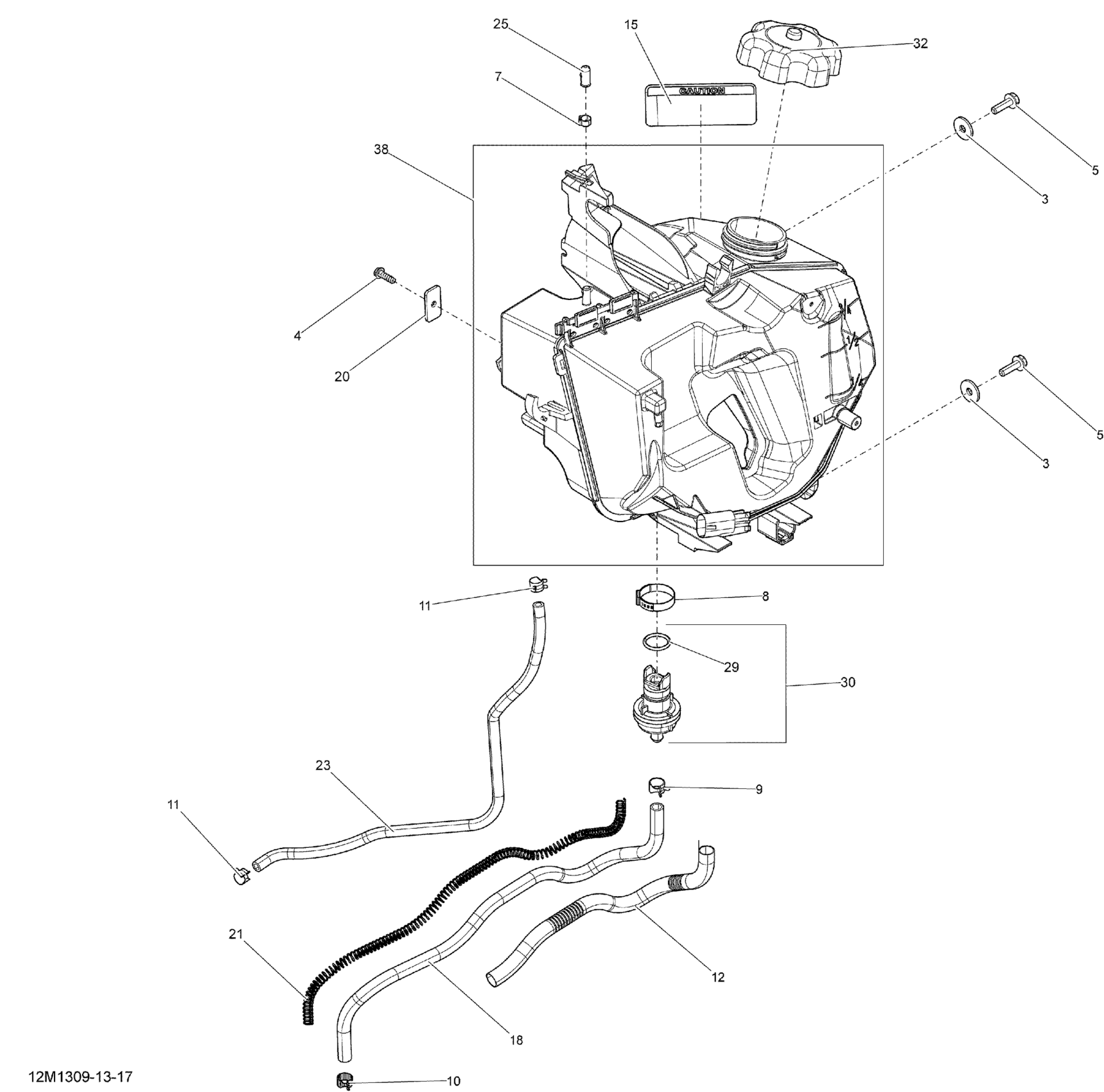

Ski-Doo SUMMIT SPORT 600, 2013 02- Oil System Diagram

Flat Washer

Hex. Flange Screw K50 X 2.24 X 16

Hex. Flange Screw M6 X 20, Scotch Grip

Oetiker Gear Clamp

Crimp Clamp

Spring Clamp

Spring Clamp

Spring Clamp

Tubing 10 MM 1000MM Long

NOTICE DECAL, OIL - Call your local BRP dealership

Polyurethane Hose, 8 Mm 3000Mm Long

Bracket

Spring

Polyurethane Hose 10000Mm Long

Cap

Oil Filter

Oil Filter

Cap

Oil Tank Ass'y
