Description

Price

1

Pop Rivet 3/16"

390402400

$0.35

2

Cross Member S Module | Includes 300a to 300b

518328320

$499.99

3

Front Suspension Support

518327487

$289.99

4

Hex. Flange Screw M6 X 20

207662044

$2.00

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Front Member

518326970

$299.99

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

8

Hex. Flange Screw M6 X 20

207662044

$2.00

9

Hex. Flange Elastic Nut M8

233281414

$1.47

10

Hex. Flange Screw M6 X 16

210261650

$1.67

11

Hex. Flange Screw M6 X 25

207662544

$0.64

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

13

Monobolt Rivet, 4.8 mm

293150191

$0.99

14

Monobolt Rivet 6.4

293150182

$3.09

15

Hex. Flange Screw M6 X 16

207661644

$0.74

16

Full Moon Dart 5 mm

293730042

$2.21

17

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

18

Not Available As Spare Parts

XXX

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

$1.47

20

Rear Member

518326559

$264.99

21

Hex. Flange Elastic Nut M8

233281414

$1.47

22

Upper Lateral Column Support

518325114

$22.49

23

Hex. Flange Screw M6 X 20

207662044

$2.00

24

Elastic Flange Nut M6 X 1.0

233261416

$2.11

25

Center Column Support

518325115

$22.49

26

Hex. Flange Screw M6 X 25

207662544

$0.64

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

28a

Rear Bumper, 146"

518325374

$111.49

28b

Not Available As Spare Parts

XXX

Unavailable

28c

Clear Rear Bumper, 154" | 800R PTEK 154"

518324982

$111.49

28d

Not Available As Spare Parts

XXX

Unavailable

29a

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

29b

Not Available As Spare Parts

XXX

Unavailable

29c

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

29d

Not Available As Spare Parts

XXX

Unavailable

30

Not Available As Spare Parts

XXX

Unavailable

31

Full Moon Cap

520000567

$10.99

31

Full Moon Cap

520000567

$10.99

32

Not Available As Spare Parts

XXX

Unavailable

33

Not Available As Spare Parts

XXX

Unavailable

34

Full Moon Dart 8 mm

293730041

$2.21

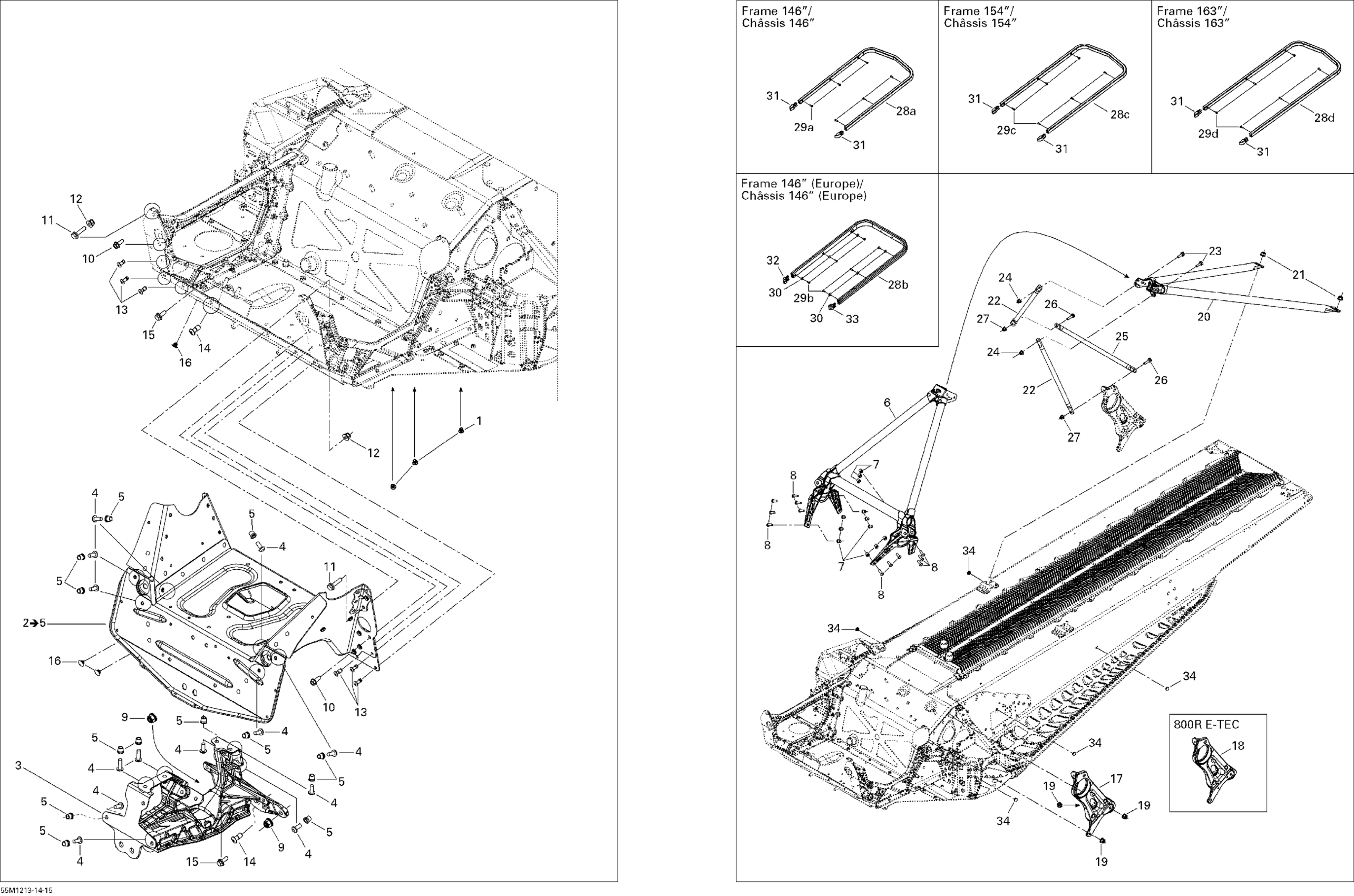

Ski-Doo Summit SPORT 600, 2012 09- Frame and Components 600 Diagram

Pop Rivet 3/16"

Cross Member S Module | Includes 300a to 300b

Front Suspension Support

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Front Member

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M8

Hex. Flange Screw M6 X 16

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Monobolt Rivet, 4.8 mm

Monobolt Rivet 6.4

Hex. Flange Screw M6 X 16

Full Moon Dart 5 mm

Driven Pulley Support This part replaces 518327133.

Not Available As Spare Parts

Hex. Flange Elastic Nut M8

Rear Member

Hex. Flange Elastic Nut M8

Upper Lateral Column Support

Hex. Flange Screw M6 X 20

Elastic Flange Nut M6 X 1.0

Center Column Support

Hex. Flange Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Rear Bumper, 146"

Not Available As Spare Parts

Clear Rear Bumper, 154" | 800R PTEK 154"

Not Available As Spare Parts

Torx Screw M6 X 1.0 X 18, Scotch Grip

Not Available As Spare Parts

Torx Screw M6 X 1.0 X 18, Scotch Grip

Not Available As Spare Parts

Not Available As Spare Parts

Full Moon Cap

Full Moon Cap

Not Available As Spare Parts

Not Available As Spare Parts

Full Moon Dart 8 mm
