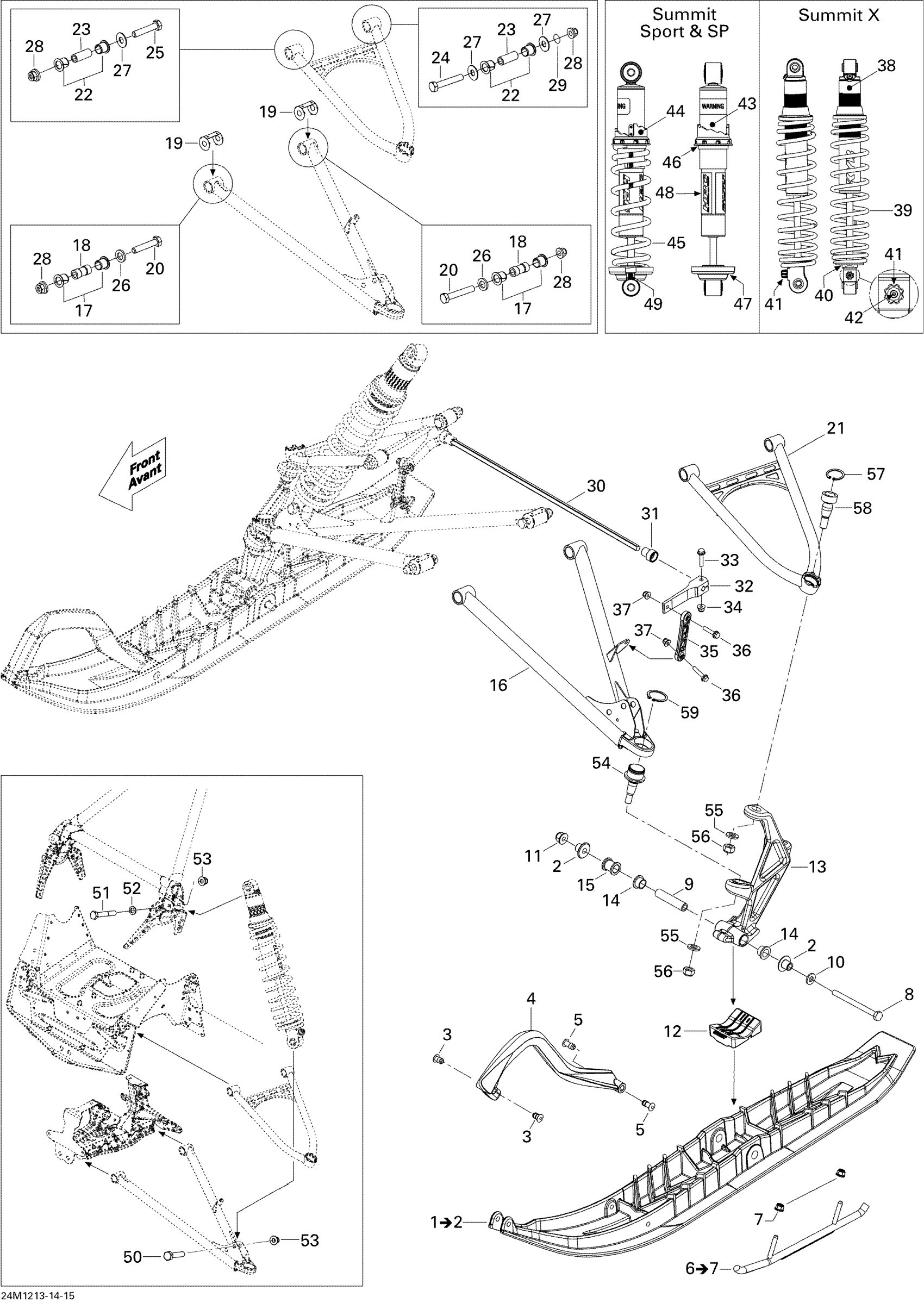

Ski-Doo Summit SPORT 600, 2012 07- Front Suspension And Ski 600 Diagram

#

Description
Price

1

Black Pilot Ski Ass'y | Includes 1 To 2

505073100

$179.99

2

Ski Bushing

505071781

$16.18

3

Retainer 17mm long

505071812

$5.95

4

Yellow Handle

505073107

$35.99

5

Retainer 23mm Long

505072133

$6.78

6

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

9

Spacer

506133300

$23.99

10

Washer

732900049

$0.58

11

Hex. Flange Elastic Nut M10

233201414

$1.58

12

Ski Stopper

505072594

$18.49

13

Clear LH Ski Leg This part replaces 505073043.

505073011

$199.99

13

Clear RH Ski Leg

505073012

$249.99

14

Leg Bushing

505072690

$12.49

15

Spacer

505071999

$14.99

16

Black, RH Lower Arm

505072497

$204.99

16

Black, LH Lower Arm

505072498

$204.99

17

Bushing

505072208

$3.28

18

Sleeve

505072209

$17.84

19

Wear Plate

505072634

$6.29

20

Screw Hex. M10 X 70

250001024

$2.11

21

LH Upper Arm 39"

505073468

$154.99

21

RH UPPER ARM - Call your local BRP dealership

505073076

Unavailable

22

Bushing

505072250

$3.28

23

Sleeve

505072143

$9.00

24

Screw Hex. M10 X 60

250001023

$2.11

25

Screw Hex. M10 X 50

250001022

$1.69

26

Washer

503189564

$0.74

27

Washer

505072392

$4.76

28

Hex. Flange Elastic Nut M10

250100165

$0.85

29

O-Ring

505072448

$2.32

30

STABILISATOR - Call your local BRP dealership

505072785

Unavailable

31

Bushing

505072786

$9.23

32

STABILISATOR LEVER - Call your local BRP dealership

505072787

Unavailable

33

Hex. Flange Screw M6 X 30

207663046

$1.69

34

Elastic Flange Nut M6 X 1.0

233261416

$2.11

35

Sway Bar Double Joint Link

505072204

$21.99

36

Hex. Flange Screw M6 X 30

207663046

$1.69

37

Elastic Flange Nut M6 X 1.0

233261416

$2.11

38

Not Available As Spare Parts

XXX

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Front Shock

505073181

$164.49

44

Adjustment Cam

505073625

$12.99

45

YELLOW SPRING - Call your local BRP dealership | 600 SPORT

505072667

Unavailable

46

Spring Guide

503187500

$10.49

47

Spring Stopper

706200881

$12.99

48

SHOCK DECAL - Call your local BRP dealership

516004534

Unavailable

49

Not Available As Spare Parts

XXX

Unavailable

50

Hex. Screw M10 X 55

207005544

$2.22

51

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

52

Washer

503189564

$0.74

53

Hex. Flange Elastic Nut M10

233201414

$1.58

54

Ball Joint

505073636

$51.99

55

Flat Washer 12 mm

234021410

$0.72

56

Hex. Elastic Hex. Nut M12

250100089

$0.46

57

Circlip

293370070

$8.99

58

Upper Ball Joint

505072913

$72.99

59

Circlip

293370035

$2.64
