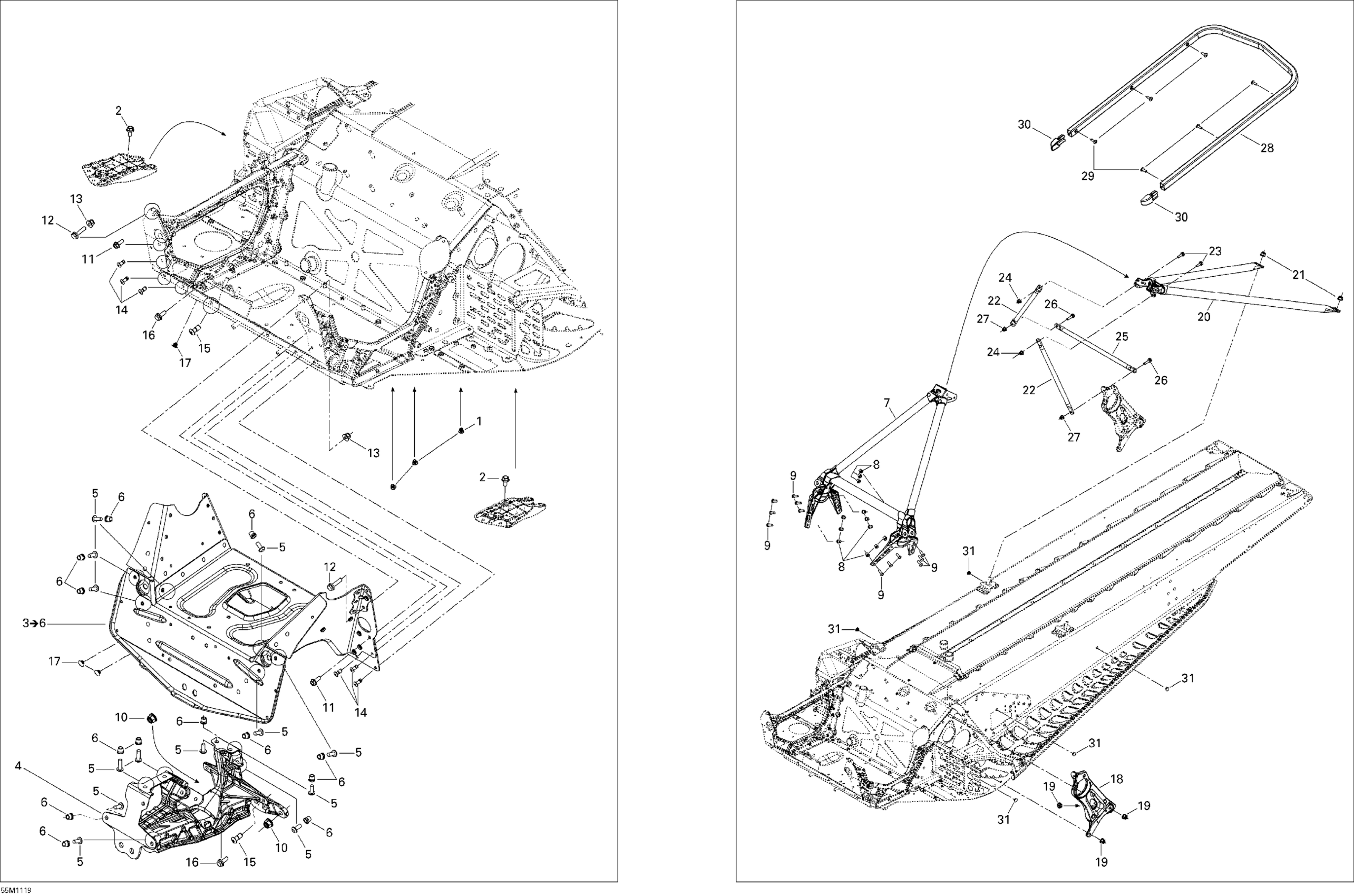

Ski-Doo Summit SPORT 600, 2011 Frame and Components Diagram

#

Description
Price

1

Pop Rivet 3/16"

390402400

$0.25

2

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

3

Cross Member S Module | Includes 300a to 300b

518328320

$459.20

4

Front Suspension Support

518327487

$267.66

5

Hex. Flange Screw M6 X 20

207662044

$1.66

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

7

Front Member

518326970

$276.12

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

9

Hex. Flange Screw M6 X 20

207662044

$1.66

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Hex. Flange Screw M6 X 16

210261650

$1.22

12

Hex. Flange Screw M6 X 25

207662544

$0.53

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

14

Monobolt Rivet, 4.8 mm

293150191

$0.95

15

Monobolt Rivet 6.4

293150182

$2.91

16

Hex. Flange Screw M6 X 16

207661644

$0.61

17

Full Moon Dart 5 mm

293730042

$2.12

18

Driven Pulley Support This part replaces 518327133.

518327460

$102.28

19

Hex. Flange Elastic Nut M8

233281414

$1.14

20

Rear Member

518326559

$244.58

21

Hex. Flange Elastic Nut M8

233281414

$1.14

22

Upper Lateral Column Support

518325114

$20.74

23

Hex. Flange Screw M6 X 20

207662044

$1.66

24

Elastic Flange Nut M6 X 1.0

233261416

$1.74

25

Center Column Support

518325115

$20.74

26

Hex. Flange Screw M6 X 25

207662544

$0.53

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

28

Rear Bumper, 146"

518325374

$109.97

29

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

30

Full Moon Cap

520000567

$8.62

31

Full Moon Dart 8 mm

293730041

$2.12
