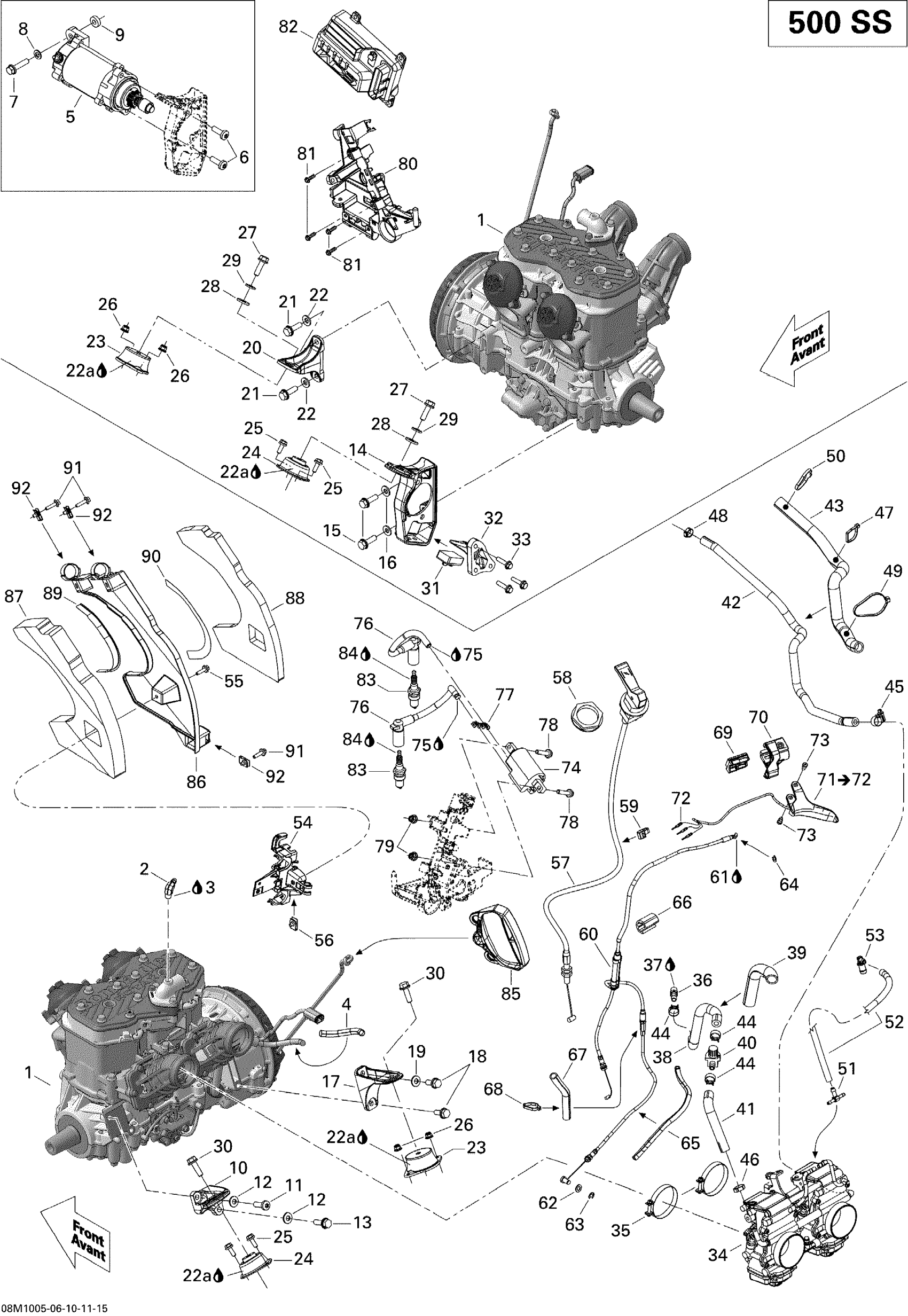

Ski-Doo Summit Sport 600, 2010 01- Engine And Engine Support 500SS Diagram

#

Description
Price

1

Engine 600

400509789

Unavailable

2

ELBOW FITTING 90 - Call your local BRP dealership

293700045

Unavailable

3

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

4

Tubing 10 MM 1000MM Long

219704407

$2.79

5

Not Available As Spare Parts

XXX

Unavailable

6

Not Available As Spare Parts

XXX

Unavailable

7

Not Available As Spare Parts

XXX

Unavailable

8

Not Available As Spare Parts

XXX

Unavailable

9

Not Available As Spare Parts

XXX

Unavailable

10

Rear Support, PTO

512060478

$31.99

11

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

12

Conical Spring Washer M8

234281474

$1.48

13

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

14

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

15

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

16

Conical Spring Washer M8

234281474

$1.48

17

Rear Support, MAG

512060559

$31.99

18

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

19

Conical Spring Washer M8

234281474

$1.48

20

Front Support, MAG

512060469

$31.99

21

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

22

Conical Spring Washer M8

234281474

$1.48

22a

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

23

Rubber Mount

512060729

$65.99

24

Rubber Mount

512060387

$46.99

25

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.44

28

Yellow, Washer

503183200

$3.19

29

Conical Spring Washer M8

234281474

$1.48

30

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.11

31

STOPPER - Call your local BRP dealership

512060179

Unavailable

32

Stopper Support

512060576

$29.49

33

Hex. Flange Screw M6 X 25

207562544

$1.69

34

Carburetor Kit, TM40-B418

403138815

$1.00

35

Gemi Clamp

512059835

$11.60

36

Male Connector 1/8"-27 NPT

512060196

$10.33

37

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

38

Hose Formed

512060355

$24.49

39

Tubing 16 Mm 1000Mm Long

219704408

$7.49

40

Valve 5/16” | Grand Touring 500.

512059324

$44.99

41

Hose Formed

512060353

$23.49

42

Hose Formed

512060347

$31.99

43

Tubing 16 Mm 1000Mm Long

219704408

$7.49

44

Spring Clamp

414655700

$0.72

45

Norma Clamp

293650084

$4.12

46

Oetiker Clamp

293650125

$3.29

47

Tie-Rap 180 mm

414115200

$0.11

48

Oetiker Clamp

293650046

$2.89

49

Tie Wrap 368 mm

293750008

$1.04

50

Tie-Rap 180 mm

414115200

$0.11

51

T-Fitting

572045500

$7.51

52

Polyurethane Hose 10000Mm Long

219704410

$56.99

53

Male Connector

414580700

$4.12

54

Solenoid Support

512060298

$14.22

55

Hex.Flange Screw M5 X 20

207652044

$1.90

56

Panel Nut M5 X 0.8

250000958

$4.23

57

Choke Cable

512060672

$44.49

58

Plastic Nut

512060671

$1.01

59

Tie-Rap 180 mm

414115200

$0.11

60

Throttle Cable

512060893

$78.49

61

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

62

Flat Washer 8 mm, Nylon

234081100

$1.39

63

Circlip

414753500

$0.71

64

Circlip

414274500

$0.90

65

Tubing 6 Mm 3000Mm Long

219704425

$13.75

66

Protector

512060313

$10.33

67

Tubing 10 MM 1000MM Long

219704407

$2.79

68

Tie-Rap 180 mm

414115200

$0.11

69

Upper Housing Ass'y

512060198

Unavailable

70

Lower Housing

512060860

$17.53

71

Throttle Handle Ass'y

512061252

$124.99

72

Male Terminal

515175232

$1.58

73

Flange Screw

732601143

$4.12

74

Ignition Coil

512059968

$51.99

75

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

76

Cable

512060291

$51.99

77

Plastic Clip, Spark Plug Wire

410914600

$5.61

78

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

79

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

80

Coils Support

512060924

$10.33

81

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

82

Calibrated Module, 600

512060680

$739.99

83

Spark Plug NGK BR10ECS

512060354

$10.59

84

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

85

Starter Grip

512060136

$14.83

86

Noise Shield

512060338

$18.49

87

Inner Noise Foam

512060341

$19.99

88

Outer Noise Foam

512060342

$19.99

89

Heat Shield

512060574

$7.79

90

Heat Shield

512060575

$8.59

91

Hex.Flange Screw M5 X 20

207652044

$1.90

92

Panel Nut M5 X 0.8

250000958

$4.23
