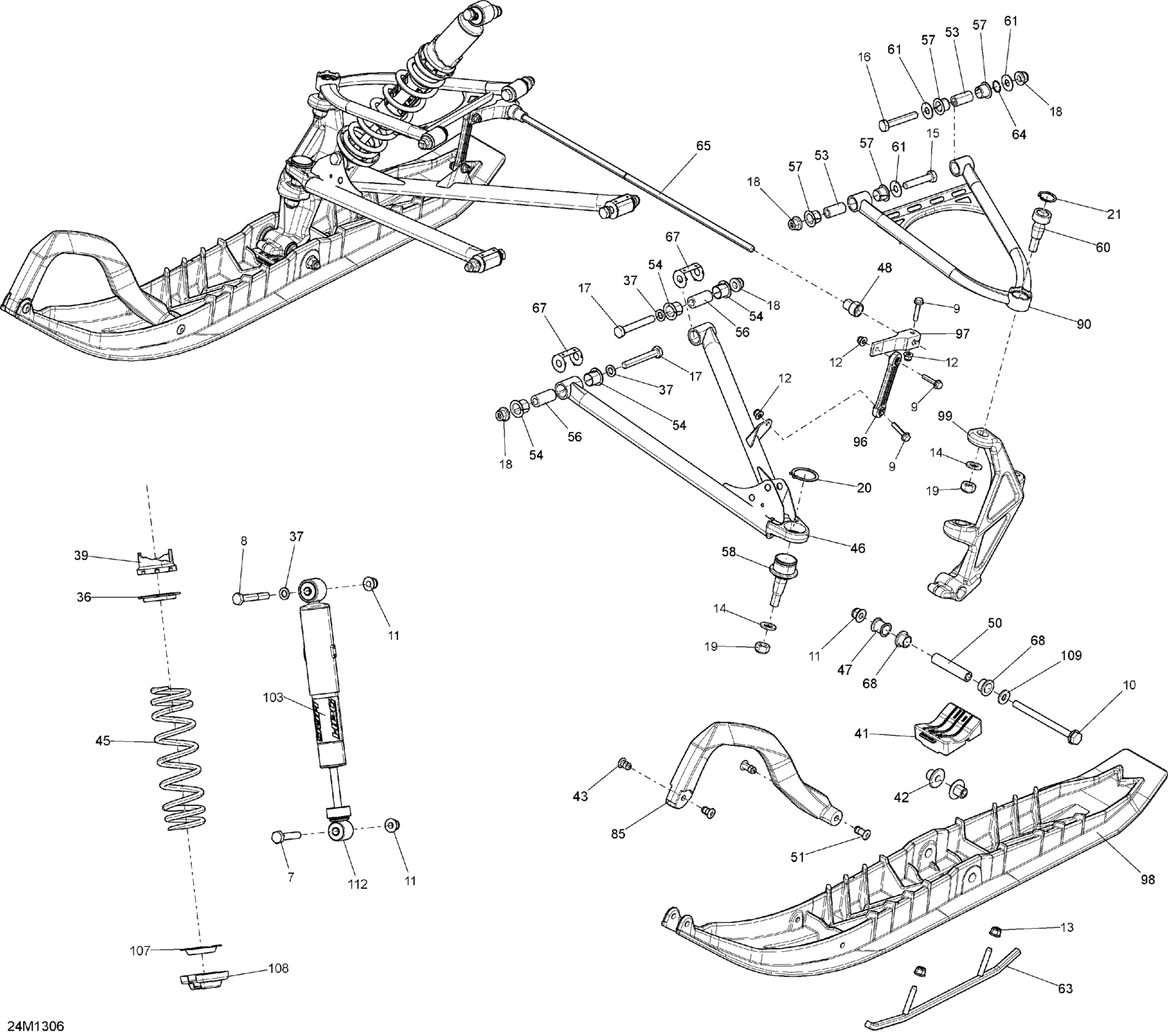

Ski-Doo SUMMIT SP 800RE XM, 2013 Front Suspension And Ski Diagram

#

Description
Price

7

Hex Screw M10 X 1.5 X 55

207005554

$6.18

8

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

9

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

11

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

12

Hex. Flange Elastic Nut M6

233261466

$1.66

13

Hex. Flange Elastic Nut M8

233281414

$1.14

14

Washer

503192491

$4.38

15

Screw Hex. M10 X 50

250001022

$1.42

16

Screw Hex. M10 X 60

250001023

$1.74

17

Screw Hex. M10 X 70

250001024

$1.74

18

Hex. Flange Elastic Nut M10

250100165

$0.70

19

Hex Elastic Nut M12 X 1.25

232521464

$1.74

20

Circlip

293370035

$2.55

21

Circlip

293370070

$7.02

36

Spring Guide

503187500

$7.37

37

Washer

503189564

$0.72

39

Adjustment Cam

505073625

$12.18

41

Ski Stopper

505072594

$17.66

42

Ski Bushing

505071781

$15.35

45

Black Spring

505072792

$77.66

46

Black, Lower Arm RH

505073040

$193.82

46

Black, LH Lower Arm

505073039

$193.82

47

Spacer

505071999

$12.69

48

Bushing

505072786

$2.22

50

Spacer

506133300

$19.97

51

Retainer 23mm Long

505072133

$5.03

53

Sleeve

505072143

$8.62

54

Bushing

505072208

$3.14

56

Sleeve

505072209

$14.38

57

Bushing

505072250

$3.14

58

Ball Joint

505073636

$49.97

60

Upper Ball Joint

505072913

$69.97

61

Washer

505072392

$4.65

63

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

64

O-Ring

505072448

Unavailable

65

STABILISATOR - Call your local BRP dealership

505072785

Unavailable

67

Wear Plate

505072634

$4.45

68

Leg Bushing

505072690

Unavailable

85

Black, Handle

505072976

$35.35

90

LH UPPER ARM - Call your local BRP dealership

505073013

Unavailable

90

RH UPPER ARM - Call your local BRP dealership

505073014

Unavailable

96

Double Ball Joint Link

505073172

$54.58

97

Stabilisator Lever

505073176

$16.12

98

Black, Ski

505073227

$175.35

99

BLACK LH SKI LEG - Call your local BRP dealership | Package-SP Black-Black

505073238

Unavailable

99

BLACK RH SKI LEG - Call your local BRP dealership | Package-SP Black-Black

505073239

Unavailable

102

Shock Decal "HPG" | Europe Models

516005533

$12.65

107

Cap

706200785

$4.42

108

Spring Stopper

706200881

$10.30

109

Washer

503192496

$0.75

112

Front Shock HPG

505073236

$238.43
