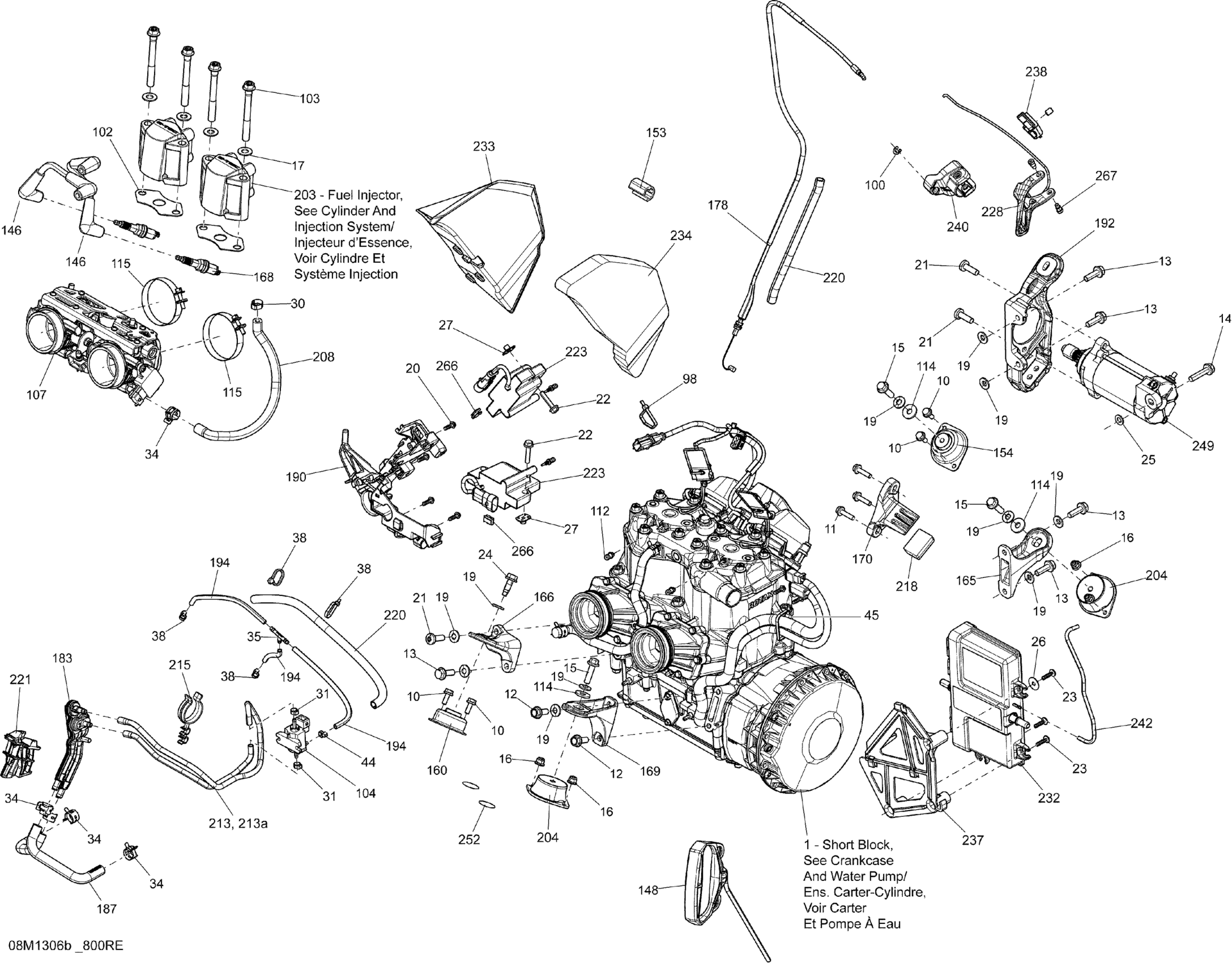

Ski-Doo SUMMIT SP 800RE XM, 2013 Engine And Engine Support 800 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

10

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

11

Hex. Flange Screw M6 X 25

207562544

$1.39

12

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

13

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.26

14

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.28

15

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

17

Flat Washer 10 mm

234001410

$0.98

19

Conical Spring Washer M8

250200146

$0.83

20

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

21

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

21

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

22

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.18

23

Truss Head Torx Screw K50 X 20

250000297

$2.06

24

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

25

Flat Washer With Teflon 8 mm

250200008

$3.12

26

Flat Washer

250200040

$1.82

27

Nut Welded, M6

293100003

$6.32

30

Oetiker Clamp

293650046

$2.33

31

Oetiker Gear Clamp

293650043

$2.70

34

Norma Spring Clamp

293650214

$15.35

34

Norma Spring Clamp

293650214

$15.35

35

T-Fitting

293710068

$6.59

38

Tie Wrap 94 mm | 4X4

293750001

$0.83

45

Tie Wrap 368 mm

293750008

$0.85

98

Tie-Rap 180 mm

414115200

$0.09

100

Circlip

414274500

$0.74

102

Gasket

420430930

$4.60

103

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.66

104

Solenoid Valve

270600005

$39.62

107

Throttle Body

420889202

$1,254.58

112

Hose Nipple

420924724

$12.29

114

Yellow, Washer

503183200

$3.00

115

GEMI CLAMP - Call your local BRP dealership | 800RE

508000007

Unavailable

146

Ignition Cable, 177mm long

512061126

$27.66

148

Starter Grip

512060136

$14.54

153

Protector

512060313

$9.31

154

Rubber Mount

512060387

$42.28

160

Rubber Mount

512060448

$42.28

165

Front Support, MAG

512060469

$31.51

166

Rear Support, PTO

512060478

$29.97

168

Spark Plug NGK PFR7AB | 800-TEC This part replaces 512060553.

415129484

$32.28

169

Rear Support, MAG

512060559

$29.97

170

Stopper Support

512060576

$28.43

178

Throttle Cable

512060851

$74.58

183

Manifold

512060692

$43.05

187

RH Formed Hose

512060694

$7.80

187

LH Formed Hose

512060695

$7.80

190

SUPPORT COILS - Call your local BRP dealership | SUMMIT

512060856

Unavailable

192

Front Support, PTO

512060714

$85.35

194

Was 420660574 Pressure Hose 280 mm

219704352

$208.43

203

Fuel Injector | Includes 13 to 16

512061054

$339.99

204

Rubber Mount

512060729

$69.97

208

Bleeder's Collector Outlet Hose

512060944

$26.89

213

Polyurethane Hose 10000Mm Long

219704410

$46.12

213a

SPRING - Call your local BRP dealership

512060814

Unavailable

215

HOSE SUPPORT - Call your local BRP dealership

512060762

Unavailable

218

Stopper

512060766

$9.31

220

Was 409901700 Tubing (9 mm)

219704399

$79.97

221

Manifold Support

512060822

$10.52

223

Ignition Coil

512060953

$129.97

228

Handle Ass'y

512061250

$117.66

232

Calibrated Module

512060756

$769.99

233

Noise Shield

512060847

$14.54

234

Inner Acoustic Foam

512060958

$18.43

237

Calibrated Module Support

512060858

$12.52

238

Upper Housing

512060859

$8.38

240

Lower Housing

512060860

$16.89

242

Was 415080100 Fuel Line Primer 3,2mm

219704409

$9.15

249

Starter

515178473

$319.49

252

Adhesive Patch

518325560

$4.34

266

Clip

710000992

$4.00

267

Flange Screw

732601143

$4.02
