Description

Price

3

Socket Screw M8 X 25

205082554

$2.11

4

Socket Head Screw M10 X 35

205503554

$7.51

5

Socket Set Screw M6 X 8

206260844

$1.48

6

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

7

Hex. Screw M8 X 1.25 X 40

207084056

$3.17

10

Hex. Flange Screw M6 X 25

207662556

$4.44

11

Hex. Flange Screw M5 X 25

207652544

$0.50

12

Hex. Flange Screw M6 X 70

207667056

$4.44

13

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

14

Hex. Flange Screw M8 X 40

207684044

$1.48

15

Hex. Flange Screw

207688544

$1.69

16

Phillips Screw M6 X 25

208562531

$2.11

17

Hex Screw M10 x 100

230100054

$6.45

20

Elastic Stop Nut M6

232561414

$0.55

21

Hex. Flange Elastic Nut M5

233251414

$1.04

22

Hex. Flange Elastic Nut M6

233261466

$2.00

23

Elastic Flange Nut M8

233281466

$1.01

24

Elastic Locking Nut M10 X 1.5

233601416

$1.69

25

Elastic Locking Nut M10

233601466

$2.11

26

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$4.44

27

Hex. Screw S.Grip M10 X 55

250000605

$8.11

28

Hex Screw M6 X 25

250000619

$1.01

29

Washer

250200032

$5.08

30

Flat Washer 8 mm

250200128

$4.44

31

Washer

250200138

$2.11

32

Washer

250200140

$1.01

33

Pop Rivet 3/16"

293150013

$1.37

35

E-Circlip

293370013

$0.65

38

INNER CIRCLIP - Call your local BRP dealership

293370090

Unavailable

39

Grease Fitting

408200700

$3.49

40

Retaining Ring

415129371

$12.01

41

Retaining Ring

415129780

$15.79

43

Retaining Ring

503168800

$14.99

46

Urethane Bushing

503189117

$8.19

47

Pivot Arm Axle

503189156

$21.99

48

Spacer

503189265

$4.99

49

Bushing

503189271

$13.99

50

Bushing | Includes 240d to 240d1

503189282

$4.34

53

Spring Stopper

503194270

$19.99

54

Ball Bearing | Package-STD

503190396

$14.30

55

Rear Wheel Spacer

503190428

$8.14

57

Labyrinth Seal

503190434

$6.09

59

Rubber Stopper

503190576

$12.99

60

Axle Bar (Long)

503190643

$17.39

62

Spring Support Kit

861805547

$10.49

66

Spring Support Kit

861805547

$10.49

68

Upper Shaft

503191215

$38.99

70

Center Bushing

503191259

$11.49

71

Axle Strap

503191260

$30.99

72

Bushing

503191262

$15.79

73

Rear Spacer

503191263

$18.49

74

Washer

503191273

$1.35

75

FRONT ARM ASS'Y - Call your local BRP dealership

503193803

Unavailable

77

Black, Spring

503191882

$62.49

81

Slider Shoe 163" | 163"

503191501

$42.49

82

Swivel Bushing

503191555

$7.83

83

Extended Bushing

503191556

$7.83

84

LH Cam Adjuster

503191565

$16.49

85

RH Cam Adjuster

503191566

$16.49

93

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$48.49

94

Wheel Cup M6

503191820

$4.99

98

Ball Bearing

503193548

$17.99

99

Black, LH Spring Square

503193003

$90.99

99

Black, RH Spring Square

503193002

$90.99

101

REAR WHEEL AXLE - Call your local BRP dealership

503192276

Unavailable

102

Runner Protector

503192299

$24.99

103

Stopper Strap

503192360

$20.99

104

Bolt M8 X 248mm

503192440

$30.49

107

Washer

503192494

$3.17

108

Washer

503192496

$0.77

109

Axle Shock Absorber

503196509

$12.58

111

Black, Wheel Cap

503192771

$2.39

114

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$48.49

115

Tensioner

503192583

$8.29

116

Acceleration Link Rod

503192900

$28.49

119

Bushing

503193037

$16.18

127

Casted Support

503193894

$16.49

128

Bushing

503193097

$18.49

131

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

$51.99

132

REAR ARM - Call your local BRP dealership

503193118

Unavailable

134

Pivot Axle

503193435

$39.99

136

SPHERICAL BEARING - Call your local BRP dealership

503193148

$68.99

145

Bushing

503193218

$12.58

146

Bolt M10 X 251MM

503193227

$17.29

147

STRAP AXLE - Call your local BRP dealership

503193332

Unavailable

150

Black Runner 163"

503193833

$309.99

150

RAIL_SUSPENSION 163 B-337 - Call your local BRP dealership

503193347

Unavailable

154

Rocker

503193464

$83.99

156

Rubber Stopper

503193504

$14.99

160

Pivot Arm

503193699

$129.99

161

Lower Axle

503193702

$65.99

165

LOCK TAB - Call your local BRP dealership

503194073

Unavailable

166

Washer 10 mm

506150000

$2.74

169

Adjustment Cam

505073625

$12.99

171

Leg Cushion

505072663

$9.23

173

Not Available As Spare Part - Friction Washer

Unavailable

174

Runner Decal

516006381

$14.99

175

Spring Guide

503191872

$2.29

183

Rear Shock

503193189

$248.99

186

Central Shock

503193207

$248.99

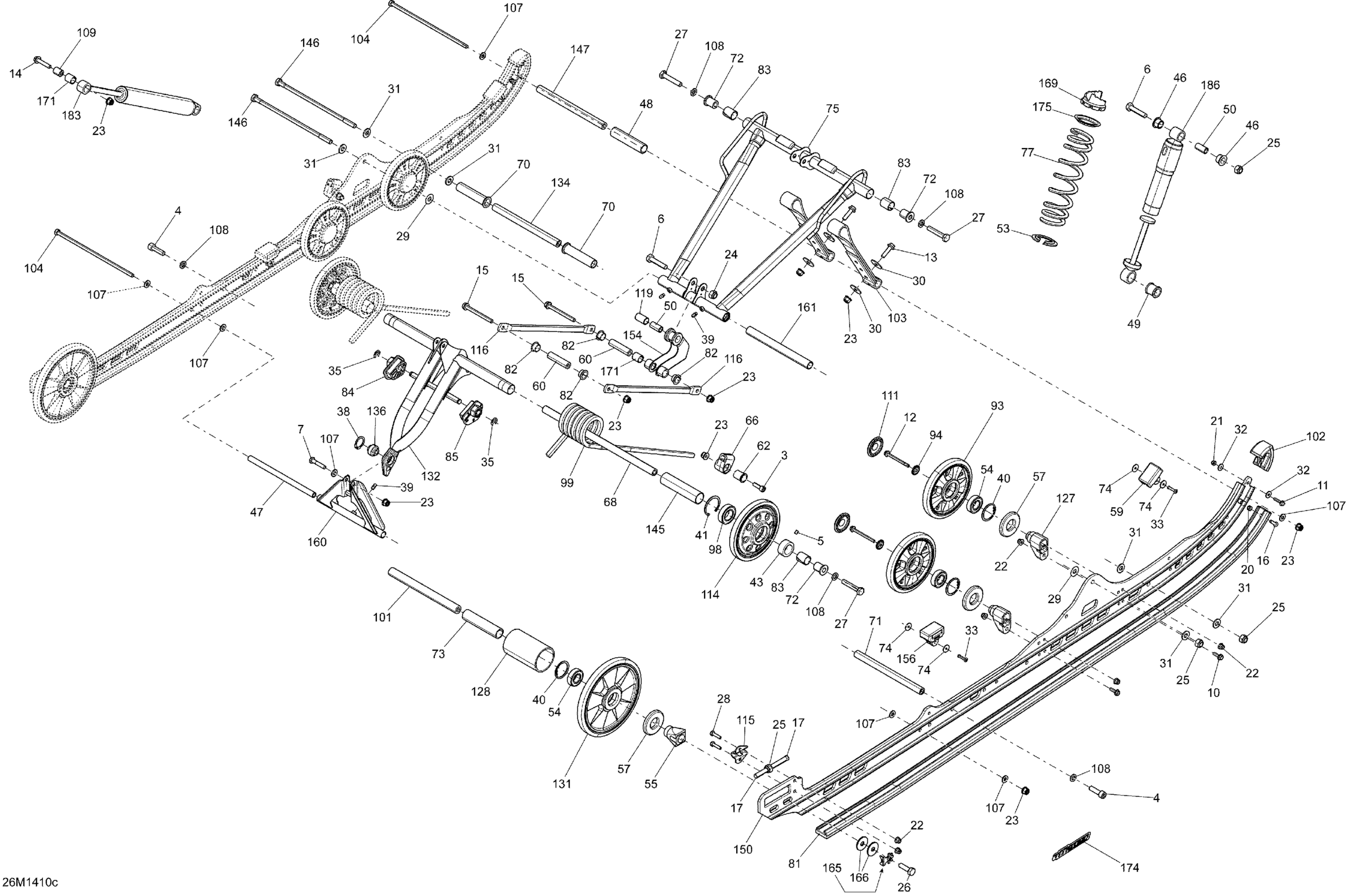

Ski-Doo SUMMIT SP 800RE XM 163, 2014 08- Rear Suspension 163 Diagram
