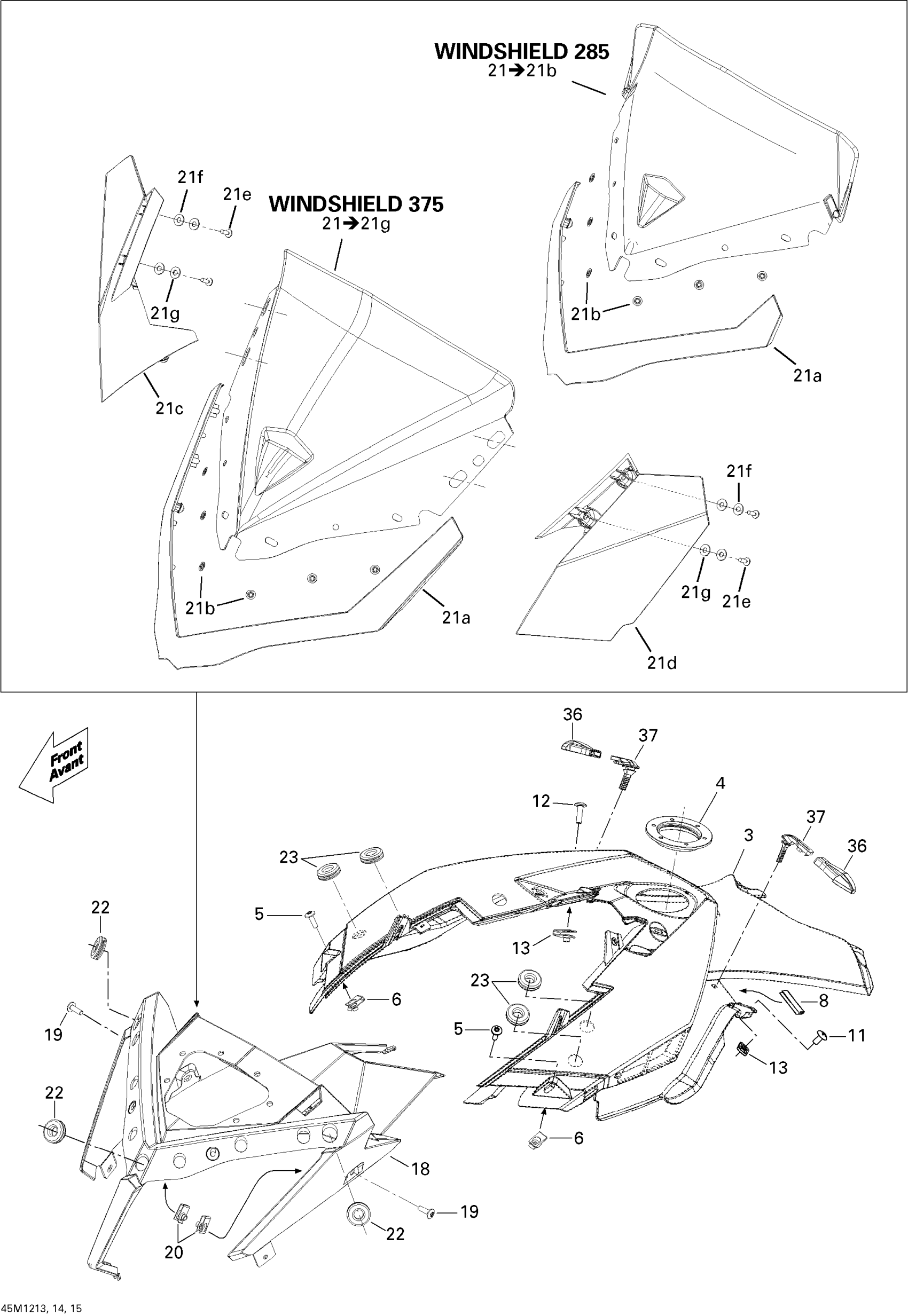

Ski-Doo Summit SP 800R E-TEC, 2012 Windshield And Console 800R ETEC Diagram

#

Description
Price

3

CONSOLE, DEEP BLACK - Call your local BRP dealership | 800R

517304672

Unavailable

4

Console Nut

517304518

$13.37

5

Torx Screw M6 X 20

250000722

$1.54

6

JACK NUT M6 - Call your local BRP dealership

732610057

Unavailable

11

Torx Truss Screw M6 X 16

250000721

$1.60

12

Torx Screw M6 X 20

250000722

$1.54

13

Panel Nut M6 X 1.0

250100198

$1.99

18

Gauge Support

517304575

$63.40

19

Torx Screw M6 X 20

250000722

$1.54

20

Panel Nut M6 X 1.0

250100198

$1.99

21

Windshield 285 Ass'y | Includes 800 to 800b

517304390

$126.84

21a

Windshield Support Kit

860200089

$23.85

21b

Push Nut

732610072

$1.97

21

Not Available As Spare Part - Friction Washer

Unavailable

21a

Windshield Support

517303607

$32.06

21b

Push Nut

732610072

$1.97

21c

RH Air Deflector

517303604

$39.52

21d

LH Air Deflector

517303605

$39.52

21e

Torx Screw K50 X 16

250000720

$1.60

21f

Washer M5

250200025

$0.70

21g

Rubber Washer 5 mm

250200024

$2.03

22

Grommet

517303756

$3.61

23

Grommet

517303756

$3.61

36

Black Latch Kit | Includes 390 to 400

860200239

$15.64

36

END PIECE LATCH - Call your local BRP dealership

517304435

Unavailable

37

Panel Latch

517303981

$9.49
