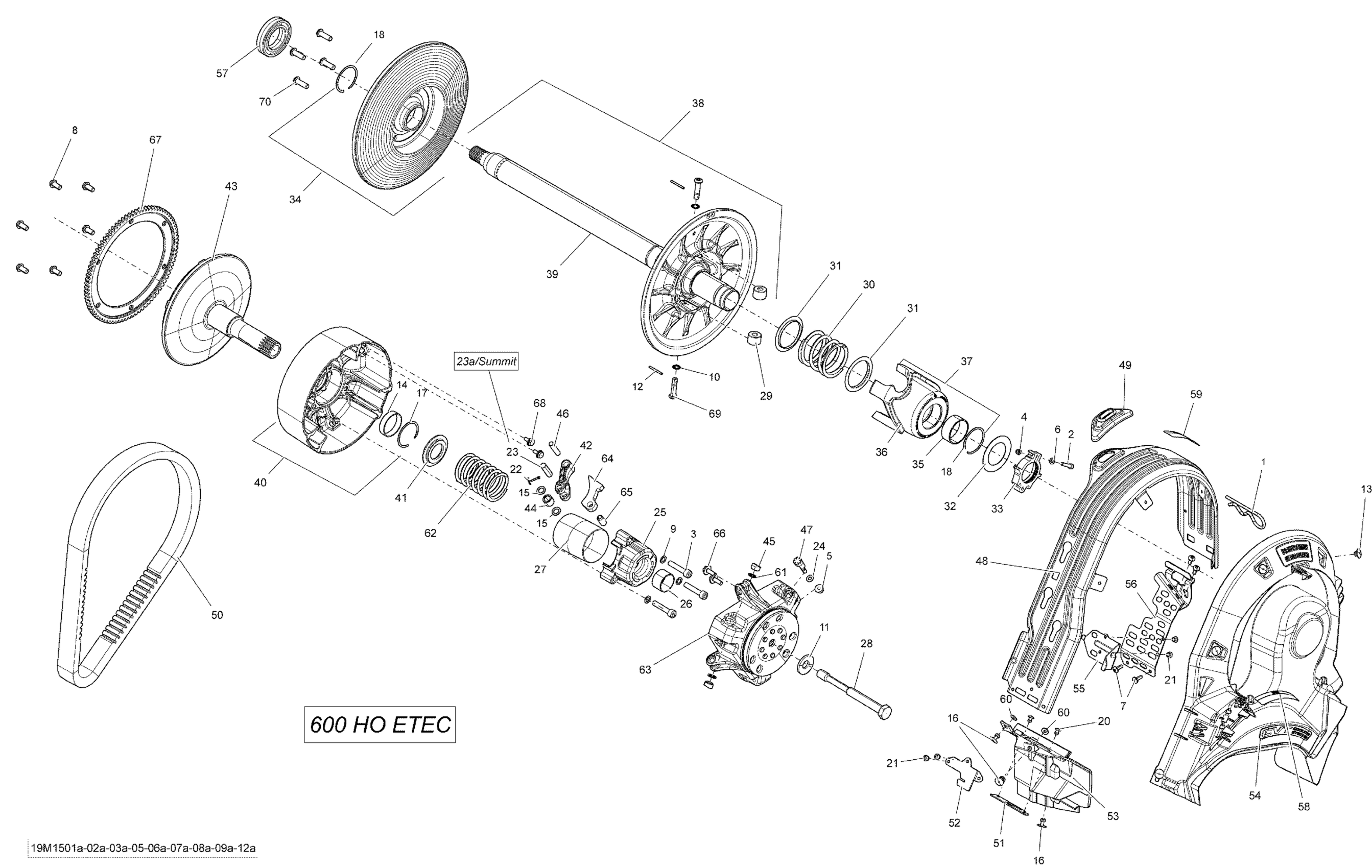

Ski-Doo Summit SP 600HOETEC XM-146, 2015 Pulley System 600HOETEC_19M1512a Diagram

#

Description
Price

1

Hair Pin

114045200

$10.69

2

Socket Screw M5 X 25

205052544

$1.34

3

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

4

Elastic Stop Nut M5

232551414

$0.72

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

6

Flat Washer M5

234051410

$0.44

7

Torx Screw M5 X 14

250000742

$1.20

8

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.37

9

Lock Washer 8 mm

250200009

$2.06

11

Conical Spring Washer M14

250200144

$3.63

12

Spring Pin M3 X 30

250400063

$1.74

13

Pop Rivet 3/16"

293150103

$0.54

14

Bushing

417222758

$20.74

15

Stopper Washer

417004302

$15.99

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

17

Circlip

293370037

$3.02

18

Circlip

293370049

$4.71

20

Avex Rivet

390909100

$0.29

21

Avex Rivet

390909200

$0.29

22

Cotter Pin

250400060

$1.60

23

Pin

417004308

$13.18

23

Threaded Pin

417222477

$24.58

23a

Socket Set Screw M6 X 1.0 X 16

250000410

$3.86

24

Washer

417005600

$3.86

25

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

26

Bushing

417009204

$16.12

27

Guard

417009205

$16.89

28

Drive Pulley Bolt

417120000

$63.82

29

Pulley Roller

417127016

$23.05

30

Black, Return Spring

417127039

$45.35

31

Swivel Abutment

417127116

$8.06

32

Washer

417127155

$8.03

33

Calibration Ass'y

415129604

$22.49

34

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$152.28

35

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.66

36

Cam Ass'y | Includes 100c to 100c2

417127376

$134.99

37

Not Available As Spare Parts

XXX

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable

39

Fix Flange Ass'y | Includes 100a to 100a4

417127389

$507.66

40

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

41

Spring Seat

417222312

$8.28

42

Lever | Includes 10f to 10g

417222671

$32.28

43

Fixed Flange Ass'y

417222937

$226.12

44

Roller

417222947

$19.97

45

Slider Shoe

417222992

$4.59

45

Slider Shoe

417223271

$8.59

46

Lever Axle

417223164

$4.25

47

Calibration Screw

417223501

$27.66

48

Belt Guard

417300357

$86.12

49

Guide

417300381

$9.23

50

Drive Belt

417300551

$170.99

51

Reinforcement Plate

417300421

$4.14

52

Front Bracket

417300423

$5.17

53

Front Support

417300430

$11.20

54

CVT Air Duct Pulley

417300440

$27.66

55

Stopper

417300445

$8.08

56

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$29.20

57

Ball Bearing

504152574

Unavailable

58

Decal English

516005503

Unavailable

59

Safety Belt Guard Decal

516005509

Unavailable

60

Flat Washer

517225900

$0.17

61

O-Ring

732401030

$0.95

62

Spring, Blue/green

414817700

$14.75

62

Spring, Violet/green | High Altitude

415015400

$14.75

63

Governor Cup Ass'y

417223669

$456.89

64

Ramp 412

417222515

$32.28

64

Ramp 440 | High Altitude

417223096

$32.28

65

Spring Pin M10 X 22

250400050

$2.38

66

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

67

Ring Gear_Starter This part replaces 417223738.

417225070

$223.05

68

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

69

Pivot Stud

417127294

$13.58

70

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61
