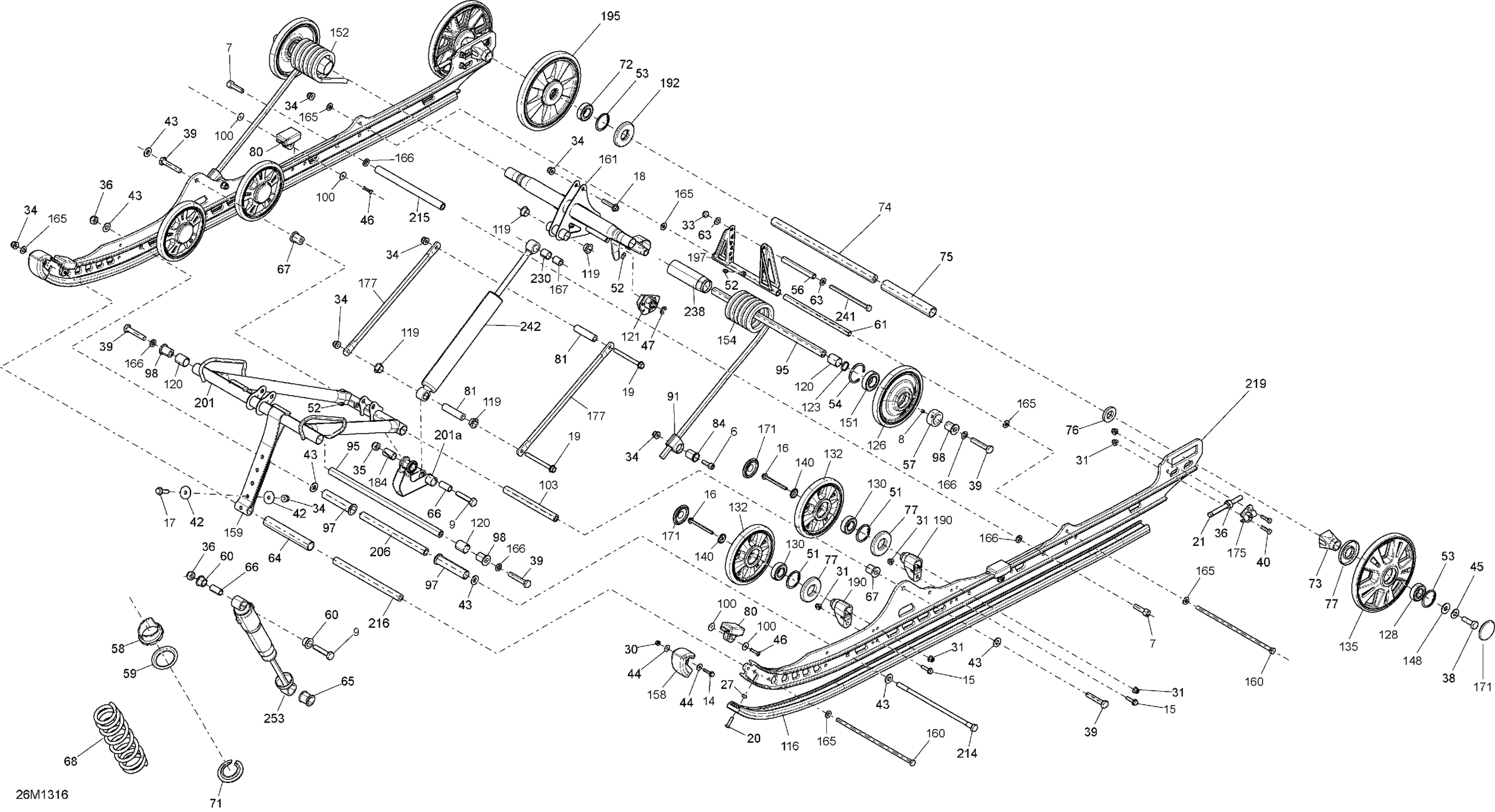

Ski-Doo SUMMIT SP 600HOE XP, 2013 08- Rear Suspension Diagram

#

Description
Price

6

Socket Screw M8 X 25

205082554

$2.11

7

Socket Head Screw M10 X 35

205503554

$7.51

8

Socket Set Screw M6 X 8

206260844

$1.48

9

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

9

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

14

Hex. Flange Screw M5 X 25

207652544

$0.50

15

Hex. Flange Screw M6 X 25

207662556

$4.44

16

Hex. Flange Screw M6 X 70

207667056

$4.44

17

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

18

Hex. Flange Screw M8 X 40

207684044

$1.48

19

Hex. Flange Screw

207688544

$1.69

20

Phillips Screw M6 X 25

208562531

$2.11

20

Phillips Screw M6 X 25

208562531

$2.11

21

Hex Screw M10 x 100

230100054

$6.45

27

Elastic Stop Nut M6

232561414

$0.55

27

Elastic Stop Nut M6

232561414

$0.55

30

Hex. Flange Elastic Nut M5

233251414

$1.04

31

Hex. Flange Elastic Nut M6

233261466

$2.00

31

Hex. Flange Elastic Nut M6

233261466

$2.00

33

Hex. Elastic Stop Nut M8

232581414

$0.56

34

Elastic Flange Nut M8

233281466

$1.01

34

Elastic Flange Nut M8

233281466

$1.01

34

Elastic Flange Nut M8

233281466

$1.01

34

Elastic Flange Nut M8

233281466

$1.01

34

Elastic Flange Nut M8

233281466

$1.01

34

Elastic Flange Nut M8

233281466

$1.01

35

Elastic Locking Nut M10 X 1.5

233601416

$1.69

36

Elastic Locking Nut M10

233601466

$2.11

36

Elastic Locking Nut M10

233601466

$2.11

36

Elastic Locking Nut M10

233601466

$2.11

38

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$4.44

39

Hex. Screw S.Grip M10 X 55

250000605

$8.11

39

Hex. Screw S.Grip M10 X 55

250000605

$8.11

39

Hex. Screw S.Grip M10 X 55

250000605

$8.11

40

Hex Screw M6 X 25

250000619

$1.01

42

Flat Washer 8 mm

250200128

$4.44

43

Washer

250200138

$2.11

43

Washer

250200138

$2.11

44

Washer

250200140

$1.01

45

Conical Spring Washer 10 mm

234201474

$1.69

46

Pop Rivet 3/16"

293150142

$2.29

47

E-Circlip

293370013

$0.65

51

Retaining Ring

415129371

$12.01

52

Grease Fitting

408200700

$3.49

52

Grease Fitting

408200700

$3.49

53

Retaining Ring

415129371

$12.01

53

Retaining Ring

415129371

$12.01

54

Retaining Ring

415129780

$15.79

56

Upper Axle, Pivot Arm

503144300

$11.65

57

Retaining Ring

503168800

$14.99

58

Adjustment Cam

505073625

$12.99

59

Spring Guide

503191872

$2.29

60

Urethane Bushing

503189117

$8.19

61

Pivot Arm Axle

503189156

$21.99

63

Washer

503189157

$3.28

64

Spacer

503191448

$11.99

65

Bushing

503189271

$13.99

66

Bushing | Includes 240d to 240d1

503189282

$4.34

66

Bushing | Includes 240d to 240d1

503189282

$4.34

67

Bushing

503189324

$14.15

68

Black, Spring

503191882

$62.49

71

Spring Stopper

503194270

$19.99

72

Ball Bearing | Package-STD

503190396

$14.30

73

Rear Wheel Spacer

503190428

$8.14

74

Rear Axle

503190429

$59.99

75

Spacer

503196317

$18.49

76

Washer

503190432

$14.22

77

Labyrinth Seal

503190434

$6.09

77

Labyrinth Seal

503190434

$6.09

80

Rubber Stopper

503190576

$12.99

81

Axle Bar (Long)

503190643

$17.39

84

Spring Support Kit

861805547

$10.49

91

Spring Support Kit

861805547

$10.49

95

Upper Shaft

503191215

$38.99

95

Upper Shaft

503191215

$38.99

97

Center Bushing

503191259

$11.49

98

Bushing

503191262

$15.79

98

Bushing

503191262

$15.79

100

Washer

503191273

$1.35

103

Lower Shaft

503191279

$28.99

116

Black, Slider 154

503191198

$34.99

116

Black, Slider 146

503191499

$34.99

119

Swivel Bushing

503191555

$7.83

120

Extended Bushing

503191556

$7.83

121

LH Cam Adjuster

503191565

$16.49

121

RH Cam Adjuster

503191566

$16.49

123

Washer

503191651

$8.32

126

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$48.49

128

Ball Bearing | Package-STD

503190396

$14.30

130

Ball Bearing | Package-STD

503190396

$14.30

132

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$48.49

135

Wheel 200, Black | Includes 600 to 600b

503191741

$51.99

140

Wheel Cup M6

503191820

$4.99

148

Washer

503191910

$2.32

151

Ball Bearing

503193548

$17.99

152

Black, RH Spring Square

503193002

$90.99

154

Black, LH Spring Square

503193003

$90.99

158

Runner Protector

503192299

$24.99

159

Stopper Strap

503192360

$20.99

160

Bolt M8 X 248mm

503192440

$30.49

160

Bolt M8 X 248mm

503192440

$30.49

161

Rear Arm | Includes 3000a to 3000a7

503192464

$201.49

165

Washer

503192494

$3.17

165

Washer

503192494

$3.17

166

Washer

503192496

$0.77

166

Washer

503192496

$0.77

166

Washer

503192496

$0.77

167

Axle Shock Absorber

503196509

$12.58

171

Black, Wheel Cap

503192771

$2.39

171

Black, Wheel Cap

503192771

$2.39

175

Tensioner

503192583

$8.29

177

Acceleration Link Rod

503192900

$28.49

184

Bushing

503193037

$16.18

190

Casted Support

503193894

$16.49

192

Labyrinth Seal

503190682

$6.19

195

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

$51.99

197

Pivot Arm | Includes 3000j to 3000j3

503191209

$124.99

201

Front Arm Ass'y | XP

503193463

$153.49

201a

Rocker

503193464

$83.99

206

Pivot Axle

503193435

$39.99

214

Bolt M10 X 251MM

503193227

$17.29

215

LOWER SHAFT - Call your local BRP dealership

503193322

Unavailable

216

STRAP AXLE - Call your local BRP dealership

503193332

Unavailable

219

Orange Runner 154"

503193349

$309.99

219

RAIL_SUSPENSION 146 B-337 - Call your local BRP dealership

503193351

Unavailable

230

Leg Cushion

505072663

$9.23

238

Bushing

572080700

$17.39

241

Bolt M8, Short

732601197

$15.36

242

Rear Shock

503193189

$248.99

253

Central Shock

503193207

$248.99
