Description

Price

3

Hair Pin

114045200

$11.11

5

Socket Screw M5 X 25

205052544

$1.68

6

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

8

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$4.09

9

Elastic Stop Nut M5

232551414

$0.87

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

11

Flat Washer M5

234051410

$0.53

13

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

14

Torx Screw M5 X 14

250000742

$1.47

15

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

16

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.99

17

Spring Washer 14 mm

250200006

$6.99

18

Lock Washer 8 mm

250200009

$2.11

20

Spring Pin M10 X 22

250400050

$2.99

21

Spring Pin M3 X 18

250400061

$2.11

23

Pop Rivet 3/16"

293150103

$0.55

25

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

26

Circlip

293370037

$3.19

27

Circlip

293370049

$4.99

30

Avex Rivet

390909100

$0.30

31

Avex Rivet

390909200

$0.30

34

Spring, Violet/green | High Altitude

415015400

$43.49

35

Threaded Pin

417222477

$25.99

37

Washer

417005600

$4.09

38

Spring Cover Ass'y | Includes 10r to 10t

417007500

$45.99

42

Guard

417009205

$21.99

43

Drive Pulley Bolt

417120000

$65.49

45

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

48

Pulley Roller

417127016

$24.49

49

Black, Return Spring

417127039

$46.49

51

Cam Ass'y | Includes 100c to 100c2

417127377

$159.49

53

Cam Ass'y

417127105

$132.99

55

Swivel Abutment

417127116

$9.39

56

Washer

417127155

$8.26

59

Calibration Ass'y

415129604

$21.49

63

Fix Flange Ass'y | Includes 100a to 100a4

417127389

$539.99

65

Pivot Stud

417127294

$14.49

68

Not Available As Spare Parts

XXX

Unavailable

70

Not Available As Spare Parts

XXX

Unavailable

72

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$219.99

74

Not Available As Spare Parts

XXX

Unavailable

78

Spring Seat

417222312

$9.59

81

Ramp 440 | High Altitude

417223096

$33.99

83

Lever | Includes 10f to 10g

417222671

$49.99

84

Ring Gear_Starter This part replaces 417223738.

417225070

$239.99

85

Fixed Flange Ass'y

417222937

$439.99

88

Roller

417222947

$21.99

91

Slider Shoe

417223271

$8.26

92

Stopper Washer

417004302

$15.90

93

Lever Axle

417223164

$4.49

94

Governor Cup Ass'y

417223669

$489.99

96

Calibration Screw

417223501

$13.99

97

Not Available As Spare Part - Friction Washer

Unavailable

98

Belt Guard

417300357

$91.99

99

Guide

417300381

$11.99

100

Drive Belt

417300551

$179.99

101

Reinforcement Plate

417300421

$4.39

102

Front Bracket

417300423

$7.29

103

Front Support

417300430

$14.49

104

CVT Air Duct Pulley

417300440

$28.99

105

Stopper

417300445

$10.49

106

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

107

Ball Bearing

504152574

$35.99

108

Decal English

516005503

Unavailable

109

Safety Belt Guard Decal

516005509

Unavailable

110

Flat Washer

517225900

$0.18

112

O-Ring

732401030

$0.98

113

Cotter Pin

250400060

$2.00

35a

Socket Set Screw M6 X 1.0 X 16

250000410

$4.09

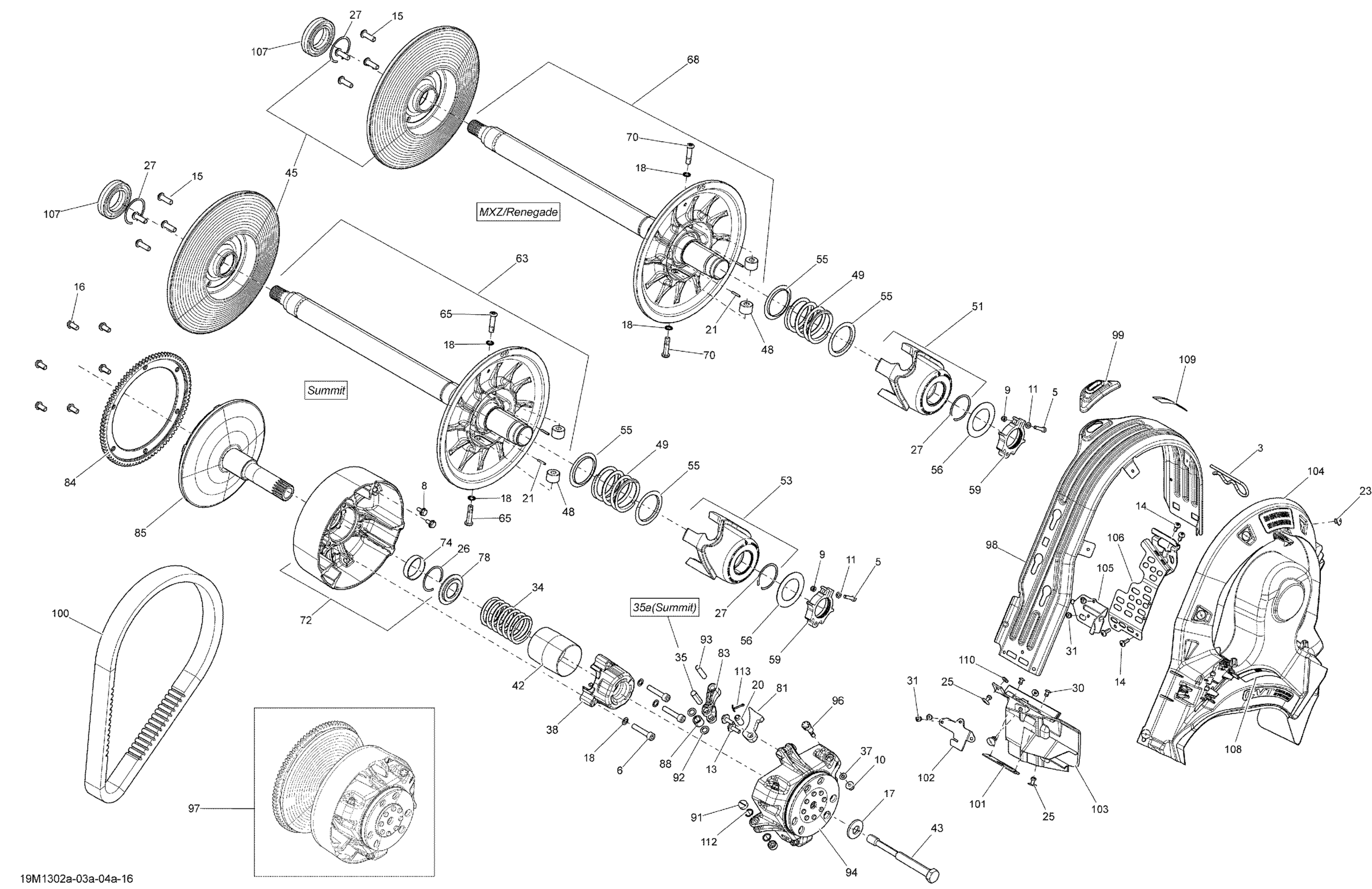

Ski-Doo SUMMIT SP 600HOE XP, 2013 05- Pulley System Diagram
