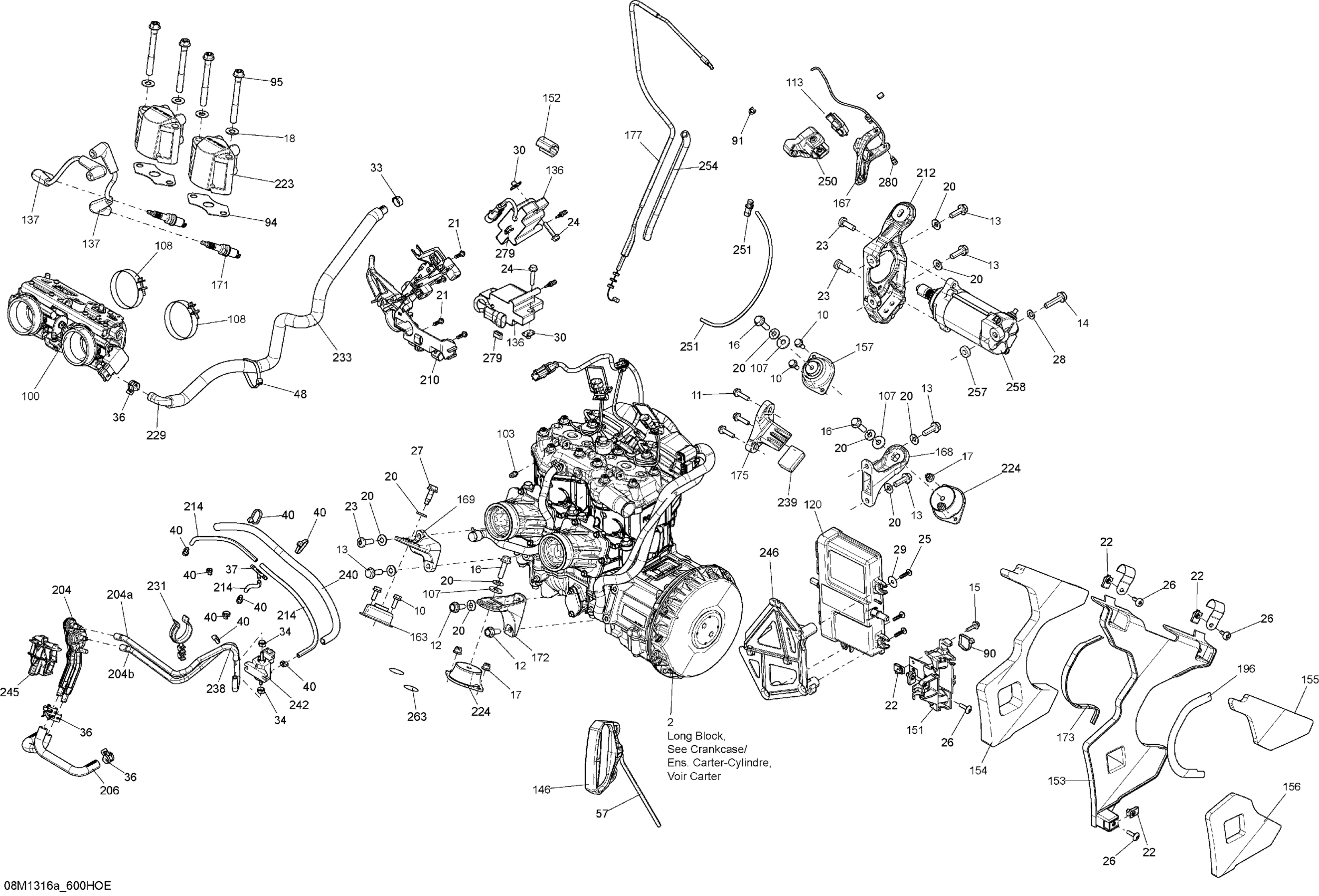

Ski-Doo SUMMIT SP 600HOE XP, 2013 01- Engine And Engine Support 600 Diagram

Not Available As Spare Part - Friction Washer

Unavailable

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex. Flange Screw M6 X 25

207562544

$1.69

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.44

Hex.Flange Screw M5 X 20

207652044

$1.90

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Flat Washer 10 mm

234001410

$1.26

Conical Spring Washer M8

250200146

$1.01

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

Panel Nut M5 X 0.8

250000958

$4.23

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.22

Truss Head Torx Screw K50 X 20

250000297

$2.11

Torx Screw M5 X 20

250000528

$2.11

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.11

Flat Washer With Teflon 8 mm

250200008

$3.80

Flat Washer

250200040

$1.90

Nut Welded, M6

293100003

$9.12

Oetiker Clamp

293650046

$2.89

Oetiker Gear Clamp

293650043

$3.39

Norma Spring Clamp

293650214

$15.89

T-Fitting

293710068

$8.29

Tie Wrap 94 mm | 4X4

293750001

$1.03

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 180 mm

414115200

$0.11

Circlip

414274500

$0.90

Male Connector

414814100

$2.22

Gasket

420430930

$4.99

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$19.99

Throttle Body

420889201

$1.00

Hose Nipple

420924724

$14.83

Yellow, Washer

503183200

$3.19

Gemi Clamp

293650158

$8.57

Upper Housing

512060859

$8.89

Calibrated Module

512060780

$749.99

Ignition Coil

512060953

$132.49

Ignition Cable, 177mm long

512061126

$28.49

Starter Grip

512060136

$14.83

Solenoid Support

512060298

$14.22

Protector

512060313

$10.33

NOISE SHIELD - Call your local BRP dealership

512060339

Unavailable

Interior Noise Foam

512060343

$20.99

Upper Exterior Noise Foam

512060344

$10.33

LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership

512060362

Unavailable

Rubber Mount

512060387

$46.99

Rubber Mount

512060448

$51.99

Handle Ass'y

512061250

$124.99

Front Support, MAG

512060469

$31.99

Rear Support, PTO

512060478

$31.99

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

$30.49

Rear Support, MAG

512060559

$31.99

Heat Shield

512060574

$7.79

Stopper Support

512060576

$29.49

Throttle Cable

512060633

$110.99

Heat Shield

512060575

$8.59

Manifold

512060692

$45.99

SPRING - Call your local BRP dealership

512060814

Unavailable

SPRING - Call your local BRP dealership

512060807

Unavailable

LH Formed Hose

512060695

$8.29

RH Formed Hose

512060694

$8.29

Ignition Coils Support

512060888

$11.60

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

Was 420660574 Pressure Hose 280 mm

219704352

$224.99

Fuel Injector | Includes 13 to 16b This part replaces 512060727.

512061233

$339.99

Rubber Mount

512060729

$65.99

Formed Hose, Output

512060740

$31.99

HOSE SUPPORT - Call your local BRP dealership

512060762

Unavailable

Tubing 16 Mm 1000Mm Long

219704408

$7.49

Polyurethane Hose 10000Mm Long

219704410

$56.99

Stopper

512060766

$10.33

Tubing 10 MM 1000MM Long

219704407

$2.79

Solenoid Valve

270600005

$116.49

Manifold Support

512060769

$11.60

Calibrated Module Support

512060858

$14.22

Lower Housing

512060860

$17.53

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

Was 409901700 Tubing (9 mm)

219704399

$84.99

Washer

515176500

$11.12

Starter

515178473

$319.49

Adhesive Patch

518325560

$4.69

Clip

710000992

$4.29

Flange Screw

732601143

$4.12
