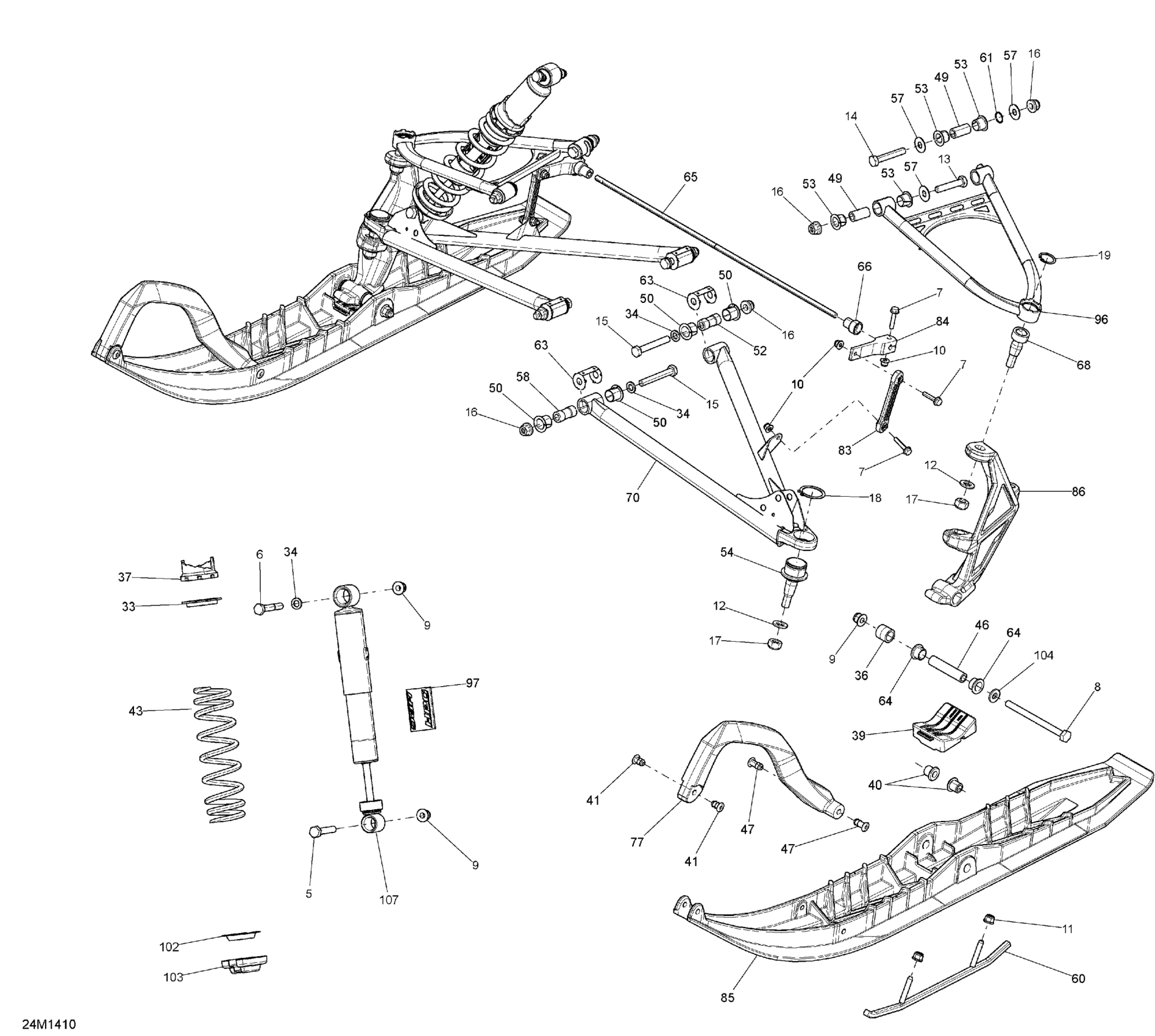

Ski-Doo SUMMIT SP 600HOE XM 146, 2014 07- Front Suspension And Ski Diagram

#

Description
Price

5

Hex Screw M10 X 1.5 X 55

207005554

$7.51

6

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

7

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

10

Hex. Flange Elastic Nut M6

233261466

$2.00

11

Hex. Flange Elastic Nut M8

233281414

$1.47

12

Washer

503192491

$4.54

13

Screw Hex. M10 X 50

250001022

$1.69

14

Screw Hex. M10 X 60

250001023

$2.11

15

Screw Hex. M10 X 70

250001024

$2.11

16

Hex. Flange Elastic Nut M10

250100165

$0.85

17

Hex Elastic Nut M12 X 1.25

232521464

$2.11

18

Circlip

293370035

$2.64

19

Circlip

293370070

$8.99

33

Spring Guide

503187500

$10.49

34

Washer

503189564

$0.74

36

Spacer

503193651

$9.69

37

Adjustment Cam

505073625

$12.99

39

Ski Stopper

505072594

$18.49

40

Ski Bushing

505071781

$16.18

41

Retainer 17mm long

505071812

$5.95

43

Black Spring

505072792

$79.49

46

Spacer

506133300

$23.99

47

Retainer 23mm Long

505072133

$6.78

49

Sleeve

505072143

$9.00

50

Bushing

505072208

$3.28

53

Bushing

505072250

$3.28

54

Ball Joint

505073636

$51.99

57

Washer

505072392

$4.76

58

Sleeve

505072209

$17.84

60

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

61

O-Ring

505072448

$2.32

63

Wear Plate

505072634

$6.29

64

Leg Bushing

505072690

$12.49

65

STABILISATOR - Call your local BRP dealership

505072785

Unavailable

66

Bushing

505072786

$9.23

68

Upper Ball Joint

505072913

$72.99

70

Black, LH Lower Arm

505073039

$204.99

70

Black, Lower Arm RH

505073040

$204.99

77

Black, Handle

505072976

$35.99

83

Double Ball Joint Link

505073172

$56.99

84

Stabilisator Lever

505073176

$18.73

85

Black, Ski

505073227

$179.99

86

BLACK LH SKI LEG - Call your local BRP dealership | Package-SP Black-Black

505073238

Unavailable

86

BLACK RH SKI LEG - Call your local BRP dealership | Package-SP Black-Black

505073239

Unavailable

96

Black Upper Arm LH 36"

505073466

$154.99

96

Black Upper Arm RH 36"

505073467

$154.99

97

Shock Decal "HPG" | Europe Models

516005533

$14.99

102

Cap

706200785

$4.69

103

Spring Stopper

706200881

$12.99

107

Front Shock HPG

505073236

$248.99
