Description

Price

1

Speedometer | Includes 10 to 10c

515177910

$659.99

2

Speedometer Button | XTP

415129355

$15.80

3

Gauge Ring

415129348

$13.99

4

Lens | XTP

415129349

$24.49

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

6

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Cap

515176498

$12.99

10

Rubber Cap Protector

219800280

$19.49

11

Torx Screw M6 X 20

250000722

$1.68

12

Panel Nut M6 X 1.0

250100198

$2.11

13

DESS Switch

515177249

$114.99

14

Male Terminal

515175232

$1.58

15

Male Housing, 3 Circuits

515175494

$16.18

16

Tubing 12 mm

409902000

Unavailable

17

Safety Nut (DESS Switch)

278002963

$3.28

18

DESS

515178284

$84.99

21

Voltage Regulator

515176364

$153.49

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

23

Temperature Sensor This part replaces 420664508.

420664509

$149.99

24

Female Terminal Housing, 2 Circuits

515175670

$8.39

25

Female Terminal

278000632

$2.09

26

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

27

Air Temperature Sensor

515176366

$19.99

28

Push Nut

389804300

$0.53

29

WIRING HARNESS MAIN - Call your local BRP dealership | 800R PTEK

515176833

Unavailable

30

Lock

515176681

$20.99

31

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

32

Ground Wire

515176358

$27.99

33

Black, Dart

414644300

$0.98

34

Tie Rap Mount (screwable)

515176795

$5.39

35

Insert

293450275

$12.99

36

Hex. Flange Screw M6 X 20

207662044

$2.00

37

Lock Washer Serrated M6

250200041

$1.15

38

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

39

Tie Wrap 94 mm | 4X4

293750001

$1.03

39

Tie Wrap 142 mm

293750002

$1.25

39

Tie-Rap 180 mm

414115200

$0.11

39

Tie Wrap 368 mm

293750008

$1.04

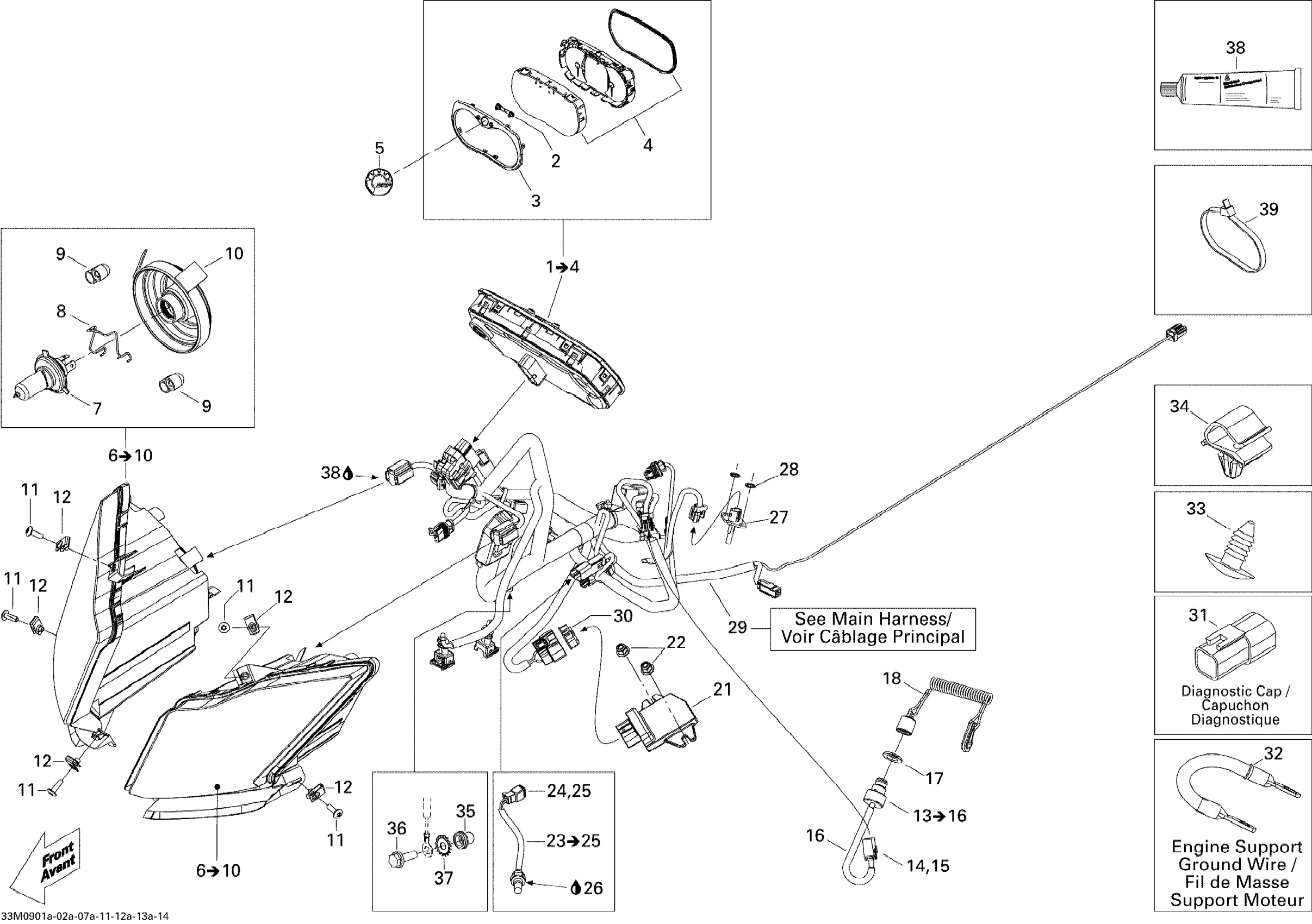

Ski-Doo Summit HillClimb Edition, 2009 10- Electrical System Diagram
