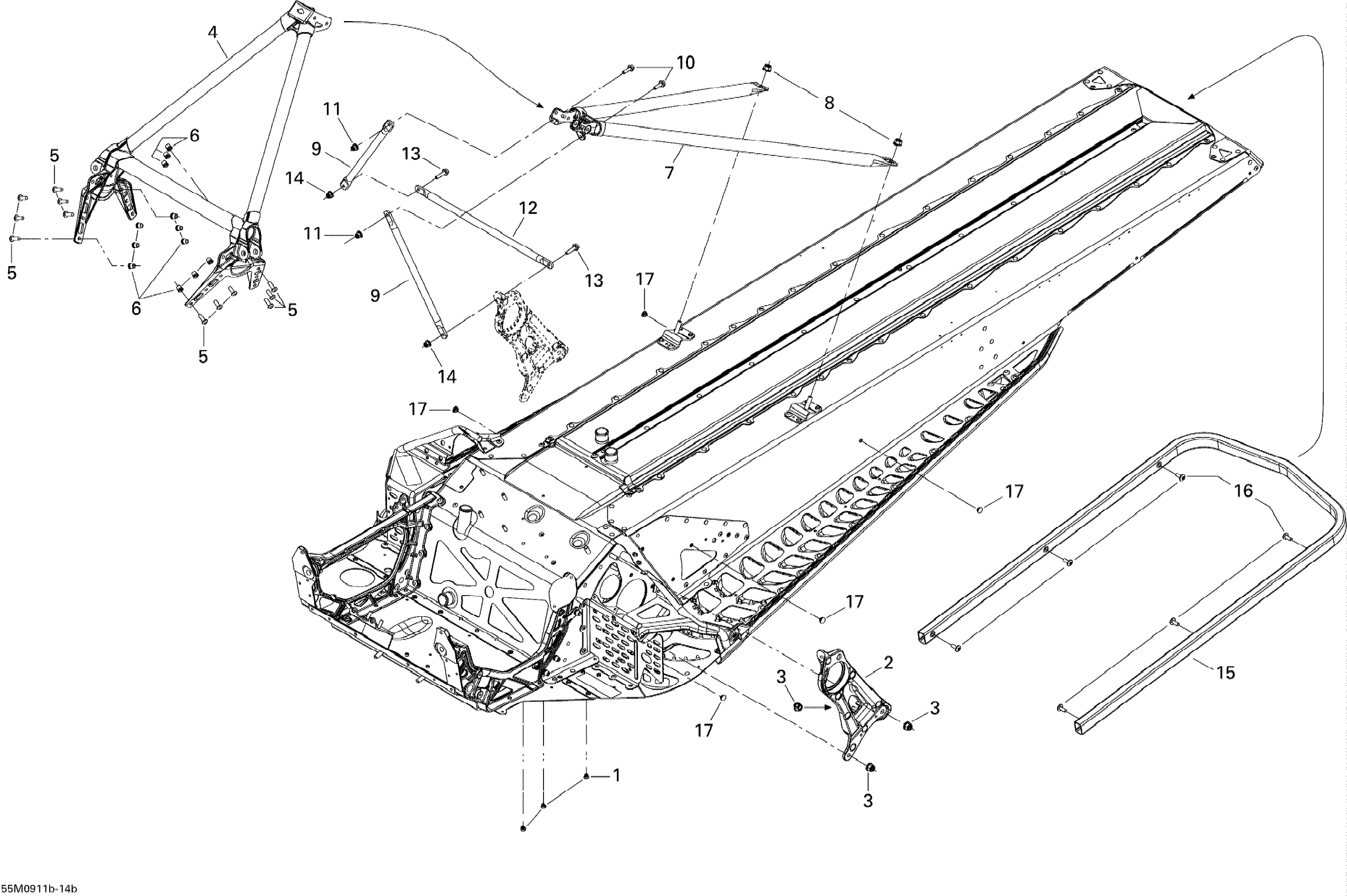

Ski-Doo Summit HillClimb Edition, 2009 Frame and Components 2 Diagram

Pop Rivet 3/16"

390402400

$0.25

Driven Pulley Support This part replaces 518327133.

518327460

$102.28

Hex. Flange Elastic Nut M8

233281414

$1.14

Front Member

518326970

$276.12

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Rear Member

518326559

$244.58

Hex. Flange Elastic Nut M8

233281414

$1.14

Upper Lateral Column Support

518325114

$20.74

Hex. Flange Screw M6 X 20

207662044

$1.66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Center Column Support

518325115

$20.74

Hex. Flange Screw M6 X 25

207662544

$0.53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Clear Rear Bumper, 154" | 800R PTEK 154"

518324982

$109.97

Torx Screw M6 X 16

250000223

$1.74

Full Moon Dart 8 mm

293730041

$2.12
