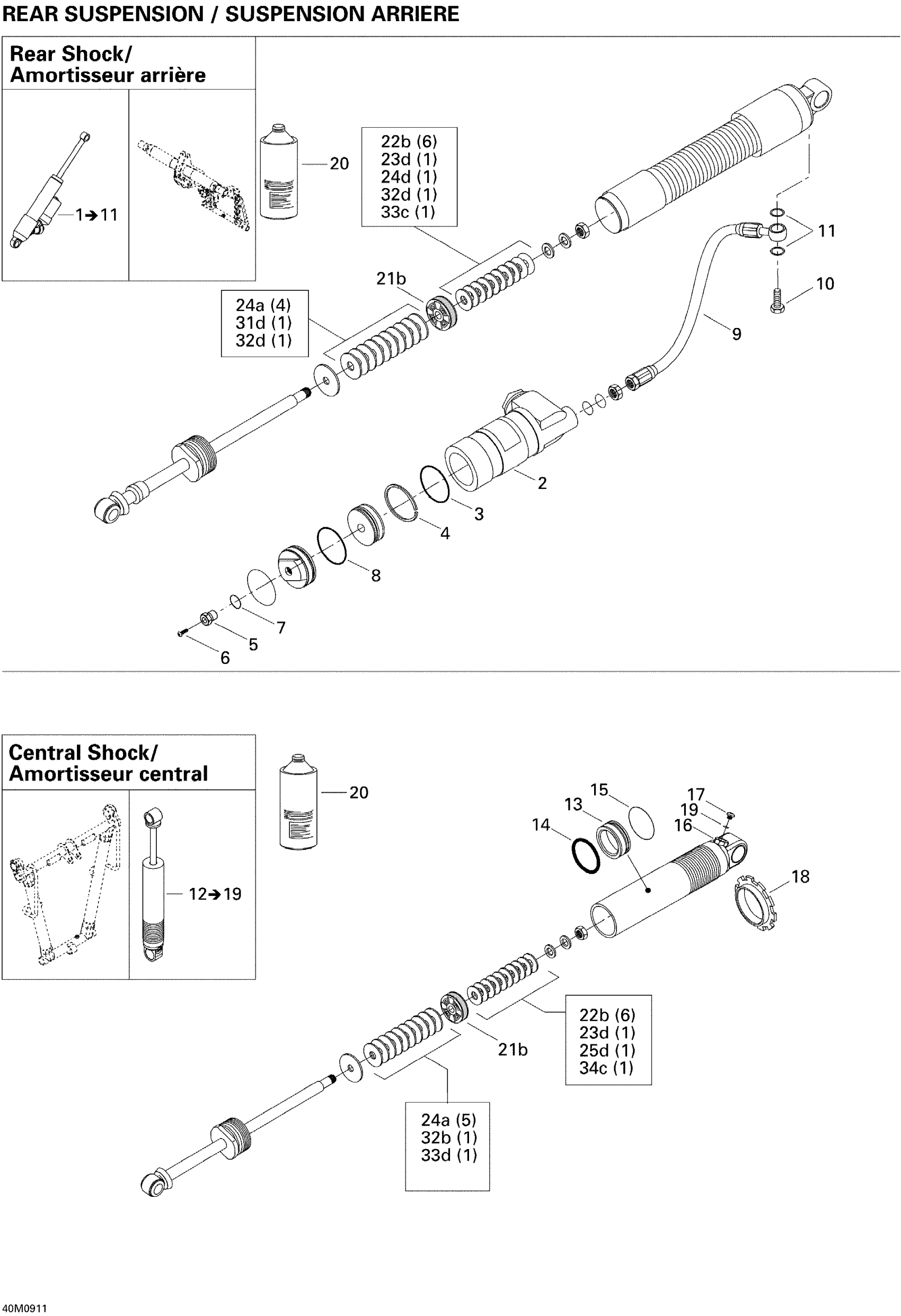

Ski-Doo Summit HillClimb Edition, 2009 08- Take Apart Shock, Rear Diagram

#

Description
Price

1

REAR SHOCK - Call your local BRP dealership | Includes 1 to 11

503192069

Unavailable

2

RESERVOIR - Call your local BRP dealership

415128594

Unavailable

3

O-Ring

415093807

$35.99

4

Piston Ring | Not Shown

415093806

$16.86

5

Air Valve

505070398

$20.99

6

Screw | Not Shown

505070399

$4.12

7

O-Ring

505070400

$4.54

8

O-Ring

415093804

$4.54

9

HOSE ASS'Y - Call your local BRP dealership

415128593

Unavailable

10

Bolt

415093810

$16.86

11

O-Ring

415038700

$42.99

12

CENTER SHOCK - Call your local BRP dealership

503191532

Unavailable

13

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

14

O-Ring

414888312

$17.29

15

Piston Ring

503189308

$79.49

16

Air Valve

505070398

$20.99

17

Screw | Not Shown

505070399

$4.12

18

SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe

414888316

Unavailable

19

O-Ring

505070400

$4.54

20

Shock Oil, 1 Liter

293600035

$73.99

21a

Not Available As Spare Part - Friction Washer

Unavailable

21b

Not Available As Spare Part - Friction Washer

Unavailable

21c

Piston (2 X 0.3-2) (C36)

414888305

Unavailable

21d

Not Available As Spare Part - Friction Washer

Unavailable

21e

Not Available As Spare Part - Friction Washer

Unavailable

21f

Not Available As Spare Part - Friction Washer

Unavailable

21g

Piston (2 X 0.3-6) (C36)

414888307

Unavailable

22a

Leaf Valve Ø30 X 0.254 (C36)

415039100

Unavailable

22b

Leaf Valve Ø30 X 0.203 (C36)

414888318

Unavailable

22c

Leaf Valve Ø30 X 0.152 (C36)

414888319

Unavailable

22d

Not Available As Spare Part - Friction Washer

Unavailable

23a

Not Available As Spare Part - Friction Washer

Unavailable

23b

Not Available As Spare Part - Friction Washer

Unavailable

23c

Not Available As Spare Part - Friction Washer

Unavailable

23d

Not Available As Spare Part - Friction Washer

Unavailable

24a

Leaf Valve Ø26 X 0.254 (C36)

415039000

Unavailable

24b

Leaf Valve Ø26 X 0.203 (C36)

414888322

Unavailable

24c

Not Available As Spare Part - Friction Washer

Unavailable

24d

Not Available As Spare Part - Friction Washer

Unavailable

25a

Not Available As Spare Part - Friction Washer

Unavailable

25b

Not Available As Spare Part - Friction Washer

Unavailable

25c

Not Available As Spare Part - Friction Washer

Unavailable

25d

Not Available As Spare Part - Friction Washer

Unavailable

26a

Not Available As Spare Part - Friction Washer

Unavailable

26b

Not Available As Spare Part - Friction Washer

Unavailable

26c

Not Available As Spare Part - Friction Washer

Unavailable

26d

Not Available As Spare Part - Friction Washer

Unavailable

27a

Not Available As Spare Part - Friction Washer

Unavailable

27b

Not Available As Spare Part - Friction Washer

Unavailable

27c

Not Available As Spare Part - Friction Washer

Unavailable

27d

Leaf Valve Ø21 X 0.114 (C36)

414888340

Unavailable

28a

Not Available As Spare Part - Friction Washer

Unavailable

28b

Leaf Valve Ø20 X 0.203 (C36)

414888326

Unavailable

28c

Leaf Valve Ø20 X 0.152 (C36)

414888327

Unavailable

28d

Not Available As Spare Part - Friction Washer

Unavailable

29a

Not Available As Spare Part - Friction Washer

Unavailable

29b

Not Available As Spare Part - Friction Washer

Unavailable

29c

Not Available As Spare Part - Friction Washer

Unavailable

29d

Not Available As Spare Part - Friction Washer

Unavailable

30a

Not Available As Spare Part - Friction Washer

Unavailable

30b

Leaf Valve Ø18 X 0.203 (C36)

414888329

Unavailable

30c

Leaf Valve Ø18 X 0.152 (C36)

414888330

Unavailable

30d

Not Available As Spare Part - Friction Washer

Unavailable

31a

Not Available As Spare Part - Friction Washer

Unavailable

31b

Not Available As Spare Part - Friction Washer

Unavailable

31c

Not Available As Spare Part - Friction Washer

Unavailable

31d

Not Available As Spare Part - Friction Washer

Unavailable

32a

Leaf Valve Ø16 X 0.254 (C36)

414888331

Unavailable

32b

Leaf Valve Ø16 X 0.203 (C36)

414888332

Unavailable

32c

Leaf Valve Ø16 X 0.152 (C36)

414888333

Unavailable

32d

Leaf Valve Ø16 X 0.114 (C36)

415038900

Unavailable

33a

Not Available As Spare Part - Friction Washer

Unavailable

33b

Leaf Valve Ø15 X 0.203 (C36)

414888335

Unavailable

33c

Not Available As Spare Part - Friction Washer

Unavailable

33d

Not Available As Spare Part - Friction Washer

Unavailable

34a

Not Available As Spare Part - Friction Washer

Unavailable

34b

Not Available As Spare Part - Friction Washer

Unavailable

34c

Not Available As Spare Part - Friction Washer

Unavailable

34d

Not Available As Spare Part - Friction Washer

Unavailable

35a

Not Available As Spare Part - Friction Washer

Unavailable

35b

Not Available As Spare Part - Friction Washer

Unavailable

35c

Not Available As Spare Part - Friction Washer

Unavailable

35d

Not Available As Spare Part - Friction Washer

Unavailable

36a

Leaf Valve Ø12 X 0.254 (C36)

503189538

Unavailable

36b

Leaf Valve Ø12 X 0.203 (C36)

414888338

Unavailable

36c

Not Available As Spare Part - Friction Washer

Unavailable

36d

Leaf Valve Ø12 X 0.114 (C36)

415038800

Unavailable
