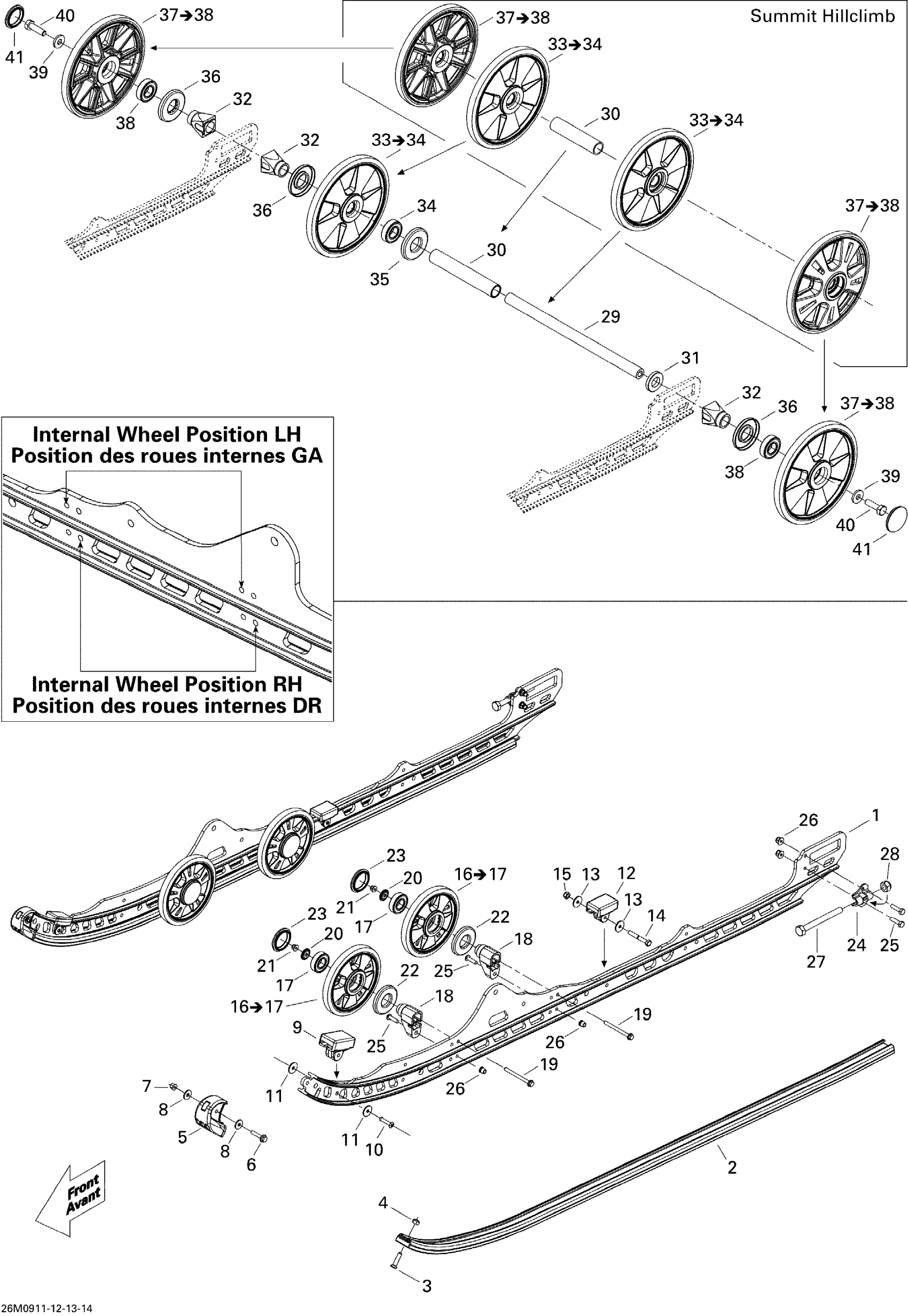

Ski-Doo Summit HillClimb Edition, 2009 08- Rear Suspension Diagram

#

Description
Price

1

Runner

503191919

Unavailable

2

Black, Slider 154

503191198

$34.99

3

Phillips Screw M6 X 25

208562531

$2.11

4

Elastic Stop Nut M6

232561414

$0.55

5

Runner Protector

503191137

$11.99

6

Hex. Flange Screw M5 X 25

207652544

$0.50

7

Hex. Flange Elastic Nut M5

233251414

$1.04

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

503190576

$12.99

10

Pop Rivet 3/16"

293150142

$2.29

11

Washer

503191273

$1.35

12

RAIL STOPPER MIDDLE, FREERIDE - Call your local BRP dealership

503190741

Unavailable

13

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

14

Hex. Screw M5 X 35

207053544

$1.15

15

Elastic Stop Nut M5

232551414

$0.87

16

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$48.49

17

Ball Bearing | Package-STD

503190396

$14.30

18

Casted Support

503193894

$16.49

19

Hex. Flange Screw M6 X 70

207667056

$4.44

20

Wheel Cup M6

503191820

$4.99

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

22

Labyrinth Seal

503190434

$6.09

23

Wheel Cap

570063600

$3.49

24

Tensioner

503192583

$8.29

25

Hex. Screw M6 X 25

207162544

$1.15

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

28

Elastic Locking Nut M10 X 1.5

233601416

$1.69

29

Rear Axle

503190429

$59.99

30

Rear Spacer

503191263

$18.49

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Rear Wheel Spacer

503190428

$8.14

33

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

$51.99

34

Ball Bearing | Package-STD

503190396

$14.30

35

Labyrinth Seal

503190682

$6.19

36

Labyrinth Seal

503190434

$6.09

37

Wheel 200, Black | Includes 600 to 600b

503191741

$51.99

38

Ball Bearing | Package-STD

503190396

$14.30

39

Washer

503190439

$5.93

40

Hex. Screw With Nylon

250000019

$1.69

41

Wheel Cap

570063600

$3.49
