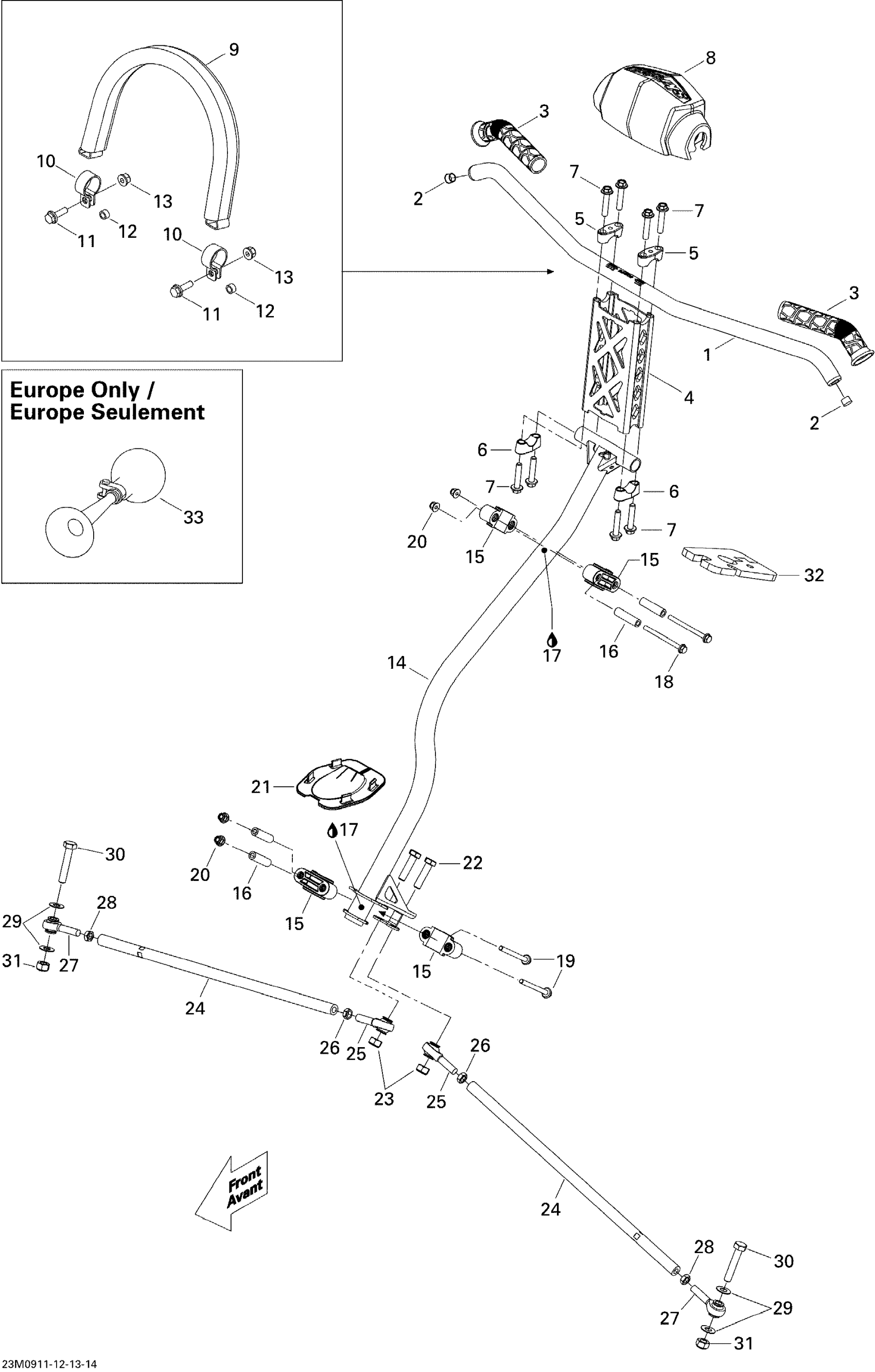

Ski-Doo Summit HillClimb Edition, 2009 07- Steering Diagram

#

Description
Price

1

Handle Bar, Non Dyed Clear Anodizing

506152709

$83.49

2

CAP - Call your local BRP dealership

506152425

Unavailable

3

Grip

506152486

$16.34

4

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$84.99

5

Steering Support | Includes 40 to 40a

506152751

$13.99

6

Steering Support | Includes 40 to 40a

506152751

$13.99

7

Hex. Flange Screw M8 x 40

250000285

$0.82

8

Steering Pad

506152192

$58.99

9

Strap Ass'y | Package XMR

506152115

$44.49

10

Black Support Plate

506152536

$9.19

11

Hex. Flange Screw M6 X 20

207662084

$1.69

12

Bushing | Package XMR

506152156

$5.61

13

Hex. Flange Elastic Nut M6

233261494

$1.58

14

Steering Column

506152964

$199.99

15

Half-Housing

506152293

$12.99

16

Housing Bushing

506152297

$12.99

17

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

18

Hex. Flange Screw M6 X 70

207667056

$4.44

19

Hex. Flange Screw M6 X 70

207667044

$0.85

20

Elastic Flange Nut M6 X 1.0

233261416

$2.11

21

Plate

506152163

$12.99

22

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

23

Elastic Stop Nut M10

232500416

$1.90

24

Tie-Rod Ass'y

506152496

$62.49

25

LH Thread Ball Joint

506152081

$41.49

26

LH Threaded Hex. Jam Nut M10

250100016

$0.74

27

RH Threaded Ball Joint

506152019

$41.49

28

RH Threaded Hex. Jam Nut M10

732610010

$0.74

29

Washer

506152194

$4.55

30

Hex. Screw M10 X 55

207005544

$2.22

31

Elastic Stop Nut M10

232500416

$1.90

32

CUSHION - Call your local BRP dealership

506152334

Unavailable

33

Not Available As Spare Parts

XXX

Unavailable
