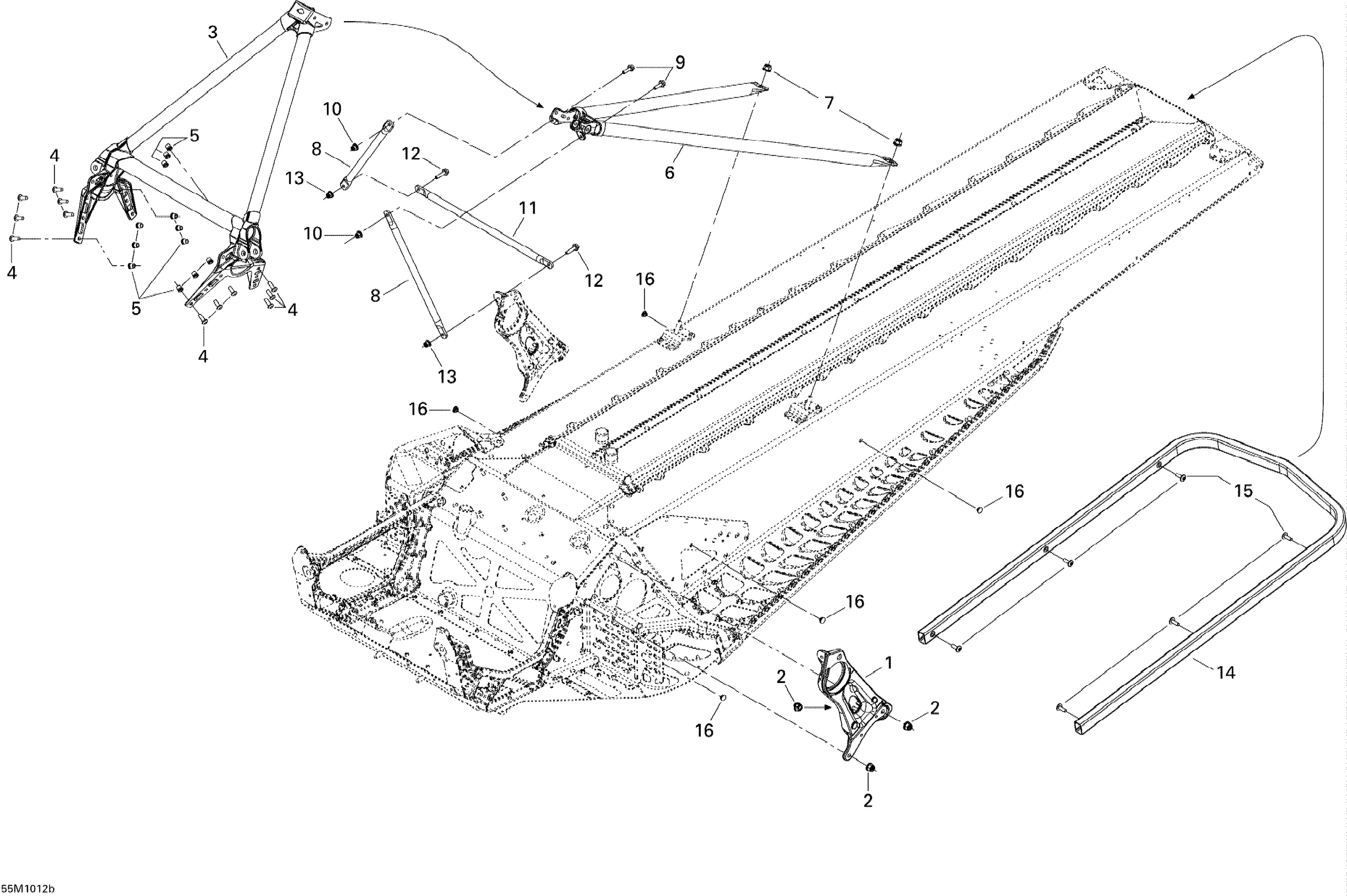

Ski-Doo Summit HillClimb, 2010 Frame and Components 2 Diagram

#

Description
Price

1

Driven Pulley Support This part replaces 518327133.

518327460

$99.22

2

Hex. Flange Elastic Nut M8

233281414

$1.31

3

Front Member

518327565

$306.69

4

Hex. Flange Screw M6 X 20

207662044

$1.91

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

6

Rear Member

518326559

$237.28

7

Hex. Flange Elastic Nut M8

233281414

$1.31

8

Upper Lateral Column Support

518325114

$20.12

9

Hex. Flange Screw M6 X 20

207662044

$1.91

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

11

Center Column Support

518325115

$20.12

12

Hex. Flange Screw M6 X 25

207662544

$0.61

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

14

Clear Rear Bumper, 154" | 800R PTEK 154"

518324982

$106.69

15

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

16

Full Moon Dart 8 mm

293730041

$2.06
