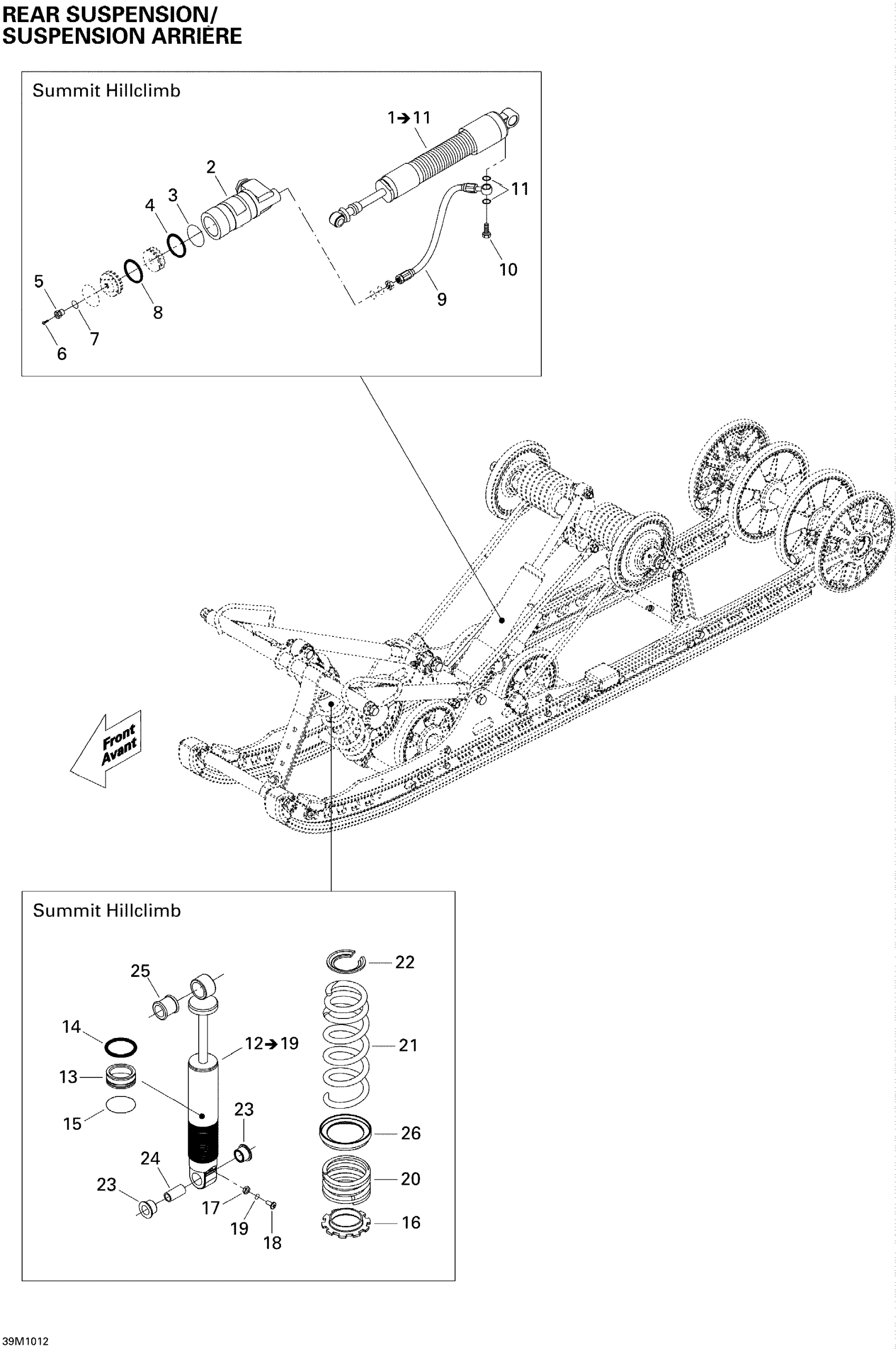

Ski-Doo Summit HillClimb, 2010 Rear Suspension Shocks Diagram

#

Description
Price

1

REAR SHOCK - Call your local BRP dealership | Includes 1 to 11

503192069

Unavailable

2

RESERVOIR - Call your local BRP dealership

415128594

Unavailable

3

O-Ring

415093807

$34.58

4

Piston Ring | Not Shown

415093806

$14.97

5

Air Valve

505070398

$17.66

6

Screw | Not Shown

505070399

$4.00

7

O-Ring

505070400

$4.38

8

O-Ring

415093804

$4.38

9

HOSE ASS'Y - Call your local BRP dealership

415128593

Unavailable

10

Bolt

415093810

$14.97

11

O-Ring

415038700

$39.97

12

CENTER SHOCK - Call your local BRP dealership | Includes 12 to 19

503192285

Unavailable

13

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

14

O-Ring

414888312

$16.12

15

Piston Ring

503189308

$77.66

16

SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe

414888316

Unavailable

17

Air Valve

505070398

$17.66

18

Screw | Not Shown

505070399

$4.00

19

O-Ring

505070400

$4.38

20

Black, Spring | Except 600 ACE

503191343

$59.97

21

Black, Spring

503192279

$66.89

22

Spring Stopper

503194270

$16.89

23

Urethane Bushing

503189117

$6.88

24

Bushing | Includes 240d to 240d1

503189282

$4.18

25

Bushing

503189271

$10.46

26

Spring Spacer

503191281

$7.66
