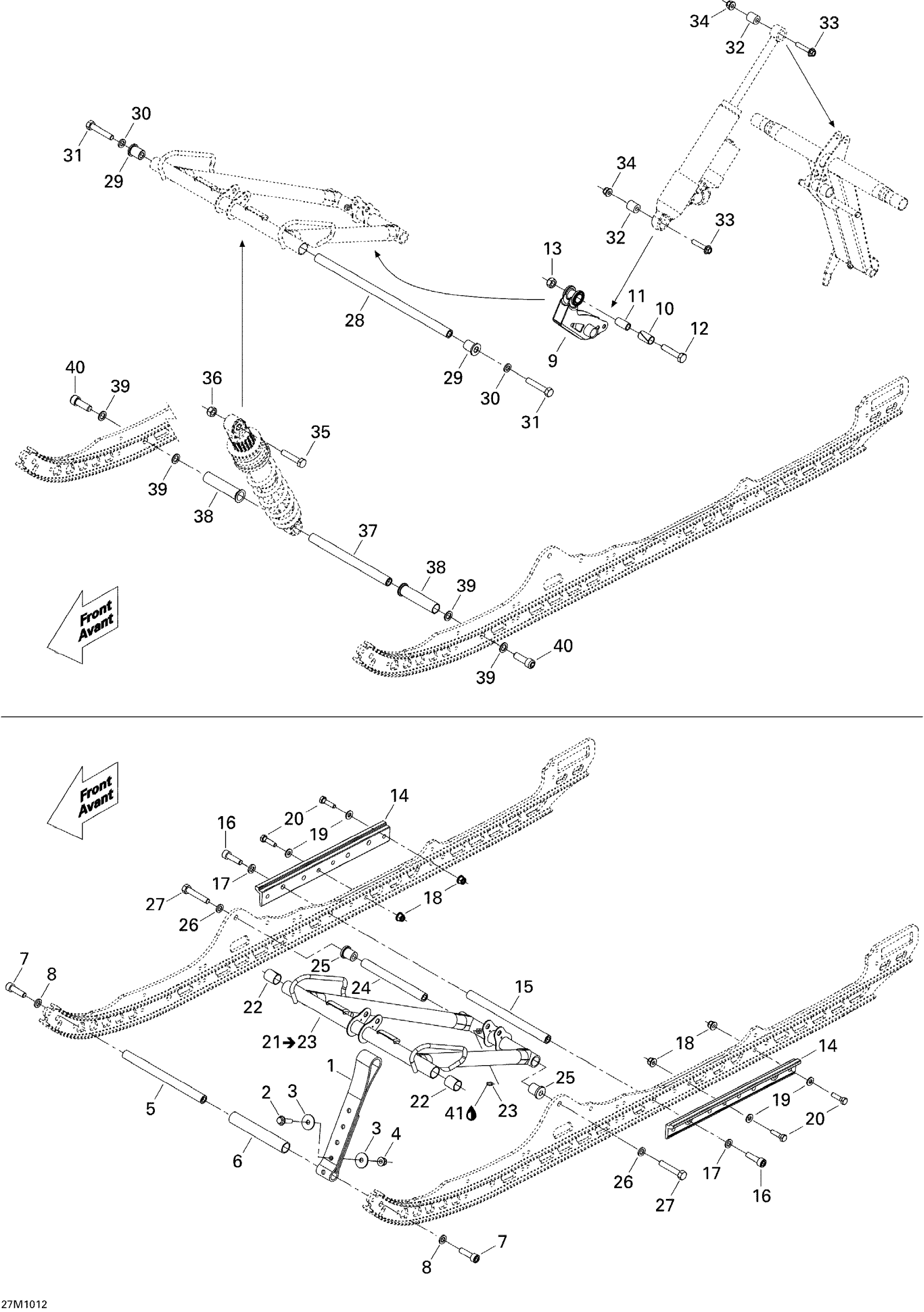

Ski-Doo Summit HillClimb, 2010 Front Arm Diagram

#

Description
Price

1

Stopper Strap

503192360

$19.37

2

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

3

Flat Washer

224081301

$0.84

4

Hex. Flange Elastic Nut M8

233281414

$1.31

5

Axle Strap

503191260

$28.33

6

Spacer

503191448

$9.90

7

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.60

8

Washer

503189564

$0.70

9

Rocker

503192211

$76.09

10

Bushing

503193037

$14.90

11

Bushing | Includes 240d to 240d1

503189282

$4.06

12

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

13

Elastic Locking Nut M10 X 1.5

233601416

$1.63

14

REINFORCEMENT RAIL - Call your local BRP dealership

503191870

Unavailable

15

Axle Strap

503191260

$28.33

16

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.60

17

Washer

503189564

$0.70

18

Hex. Flange Elastic Nut M8

233281414

$1.31

19

Washer

503189157

$3.10

20

Hex. Screw M8 X 30

207183044

$1.06

21

FRONT ARM ASS'Y - Call your local BRP dealership | Includes 17 to 19

503191580

Unavailable

22

Extended Bushing

503191556

$5.54

23

Grease Fitting

408200700

$3.21

24

Lower Shaft

503191279

$26.84

25

Bushing

503189324

$10.84

26

Washer

503189564

$0.70

27

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

28

Upper Shaft

503191215

$35.04

29

Bushing

503191262

$13.19

30

Washer

503189564

$0.70

31

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

32

Bushing

414936000

$11.21

33

Hex. Flange Screw M8 X 40

207684044

$1.43

34

Hex. Flange Elastic Nut M8

233281414

$1.31

35

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

36

Elastic Locking Nut M10 X 1.5

233601416

$1.63

37

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

38

Center Bushing

503191259

$8.70

39

Washer

503189276

$3.10

40

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

41

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
