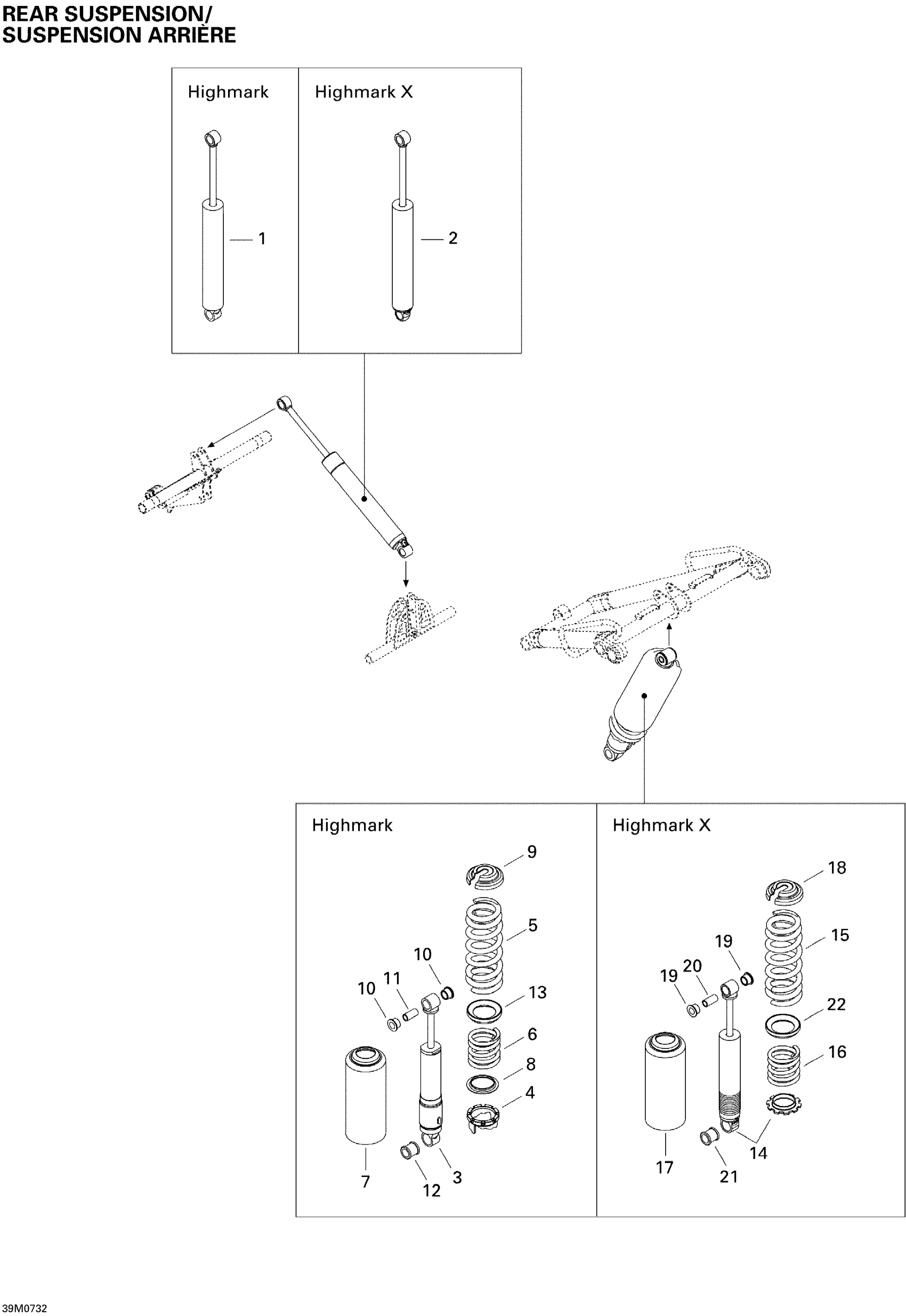

Ski-Doo Summit Highmark & Highmark X 1000 SDI, 2007 Rear Suspension Shocks Diagram

#

Description
Price

1

REAR SHOCK - Call your local BRP dealership | Europe

503190977

Unavailable

2

REAR SHOCK - Call your local BRP dealership | Europe

503191467

Unavailable

3

Center Shock

503190981

Unavailable

4

Adjustment Cam

505073625

$12.18

5

Spring

503190854

$66.89

6

Spring

503190982

$29.97

7

Protector

503193663

$35.35

8

Spring Guide

503191872

$2.18

9

Spring Stopper

706200881

$10.30

10

Urethane Bushing

503189117

$6.88

11

Bushing | Includes 240d to 240d1

503189282

$4.18

12

Bushing

503189271

$10.46

13

Spring Spacer

505071685

Unavailable

14

CENTER SHOCK - Call your local BRP dealership | Europe

503190662

Unavailable

15

Spring

503190854

$66.89

16

Spring

503190982

$29.97

17

Protector

503193663

$35.35

18

Spring Stopper

706200881

$10.30

19

Urethane Bushing

503189117

$6.88

20

Bushing | Includes 240d to 240d1

503189282

$4.18

21

Bushing

503189271

$10.46

22

Spring Spacer

505071685

Unavailable
