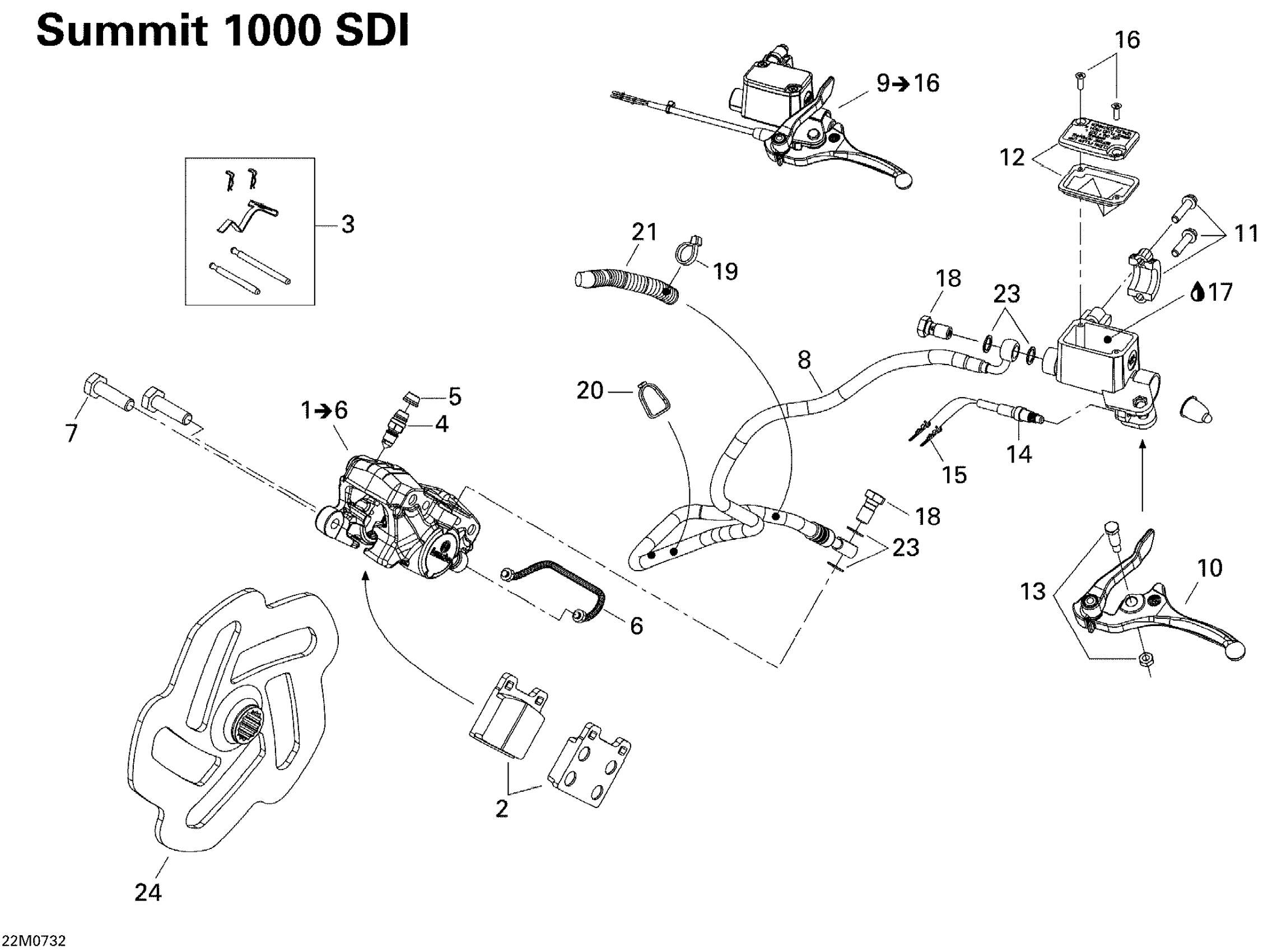

Ski-Doo Summit Highmark & Highmark X 1000 SDI, 2007 06- Hydraulic Brakes Diagram

#

Description
Price

1

Brake Caliper

507032387

Unavailable

2

Brake Pad Kit

415084600

$79.49

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

415128865

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

8

BRAKE HOSE - Call your local BRP dealership | Highmark X

507032418

Unavailable

8

BRAKE HOSE - Call your local BRP dealership

507032450

Unavailable

9

MASTER CYLINDER - Call your local BRP dealership

507032463

Unavailable

10

LEVER - Call your local BRP dealership

415129216

Unavailable

11

Clamp And Screw Kit

507032477

$23.99

12

Cap

415029900

$41.49

13

Pin Ass'y

415030000

$19.99

14

Microswitch

507032366

$98.99

15

Male Terminal

515175232

$1.58

16

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

17

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

18

Banjo Bolt

414920500

$8.68

19

Tie Wrap 142 mm

293750002

$1.25

20

Tie Wrap 142 mm

293750002

$1.25

21

Tubing 6 Mm 3000Mm Long

219704425

$13.75

23

Washer

414920600

$1.90

24

BRAKE DISK - Call your local BRP dealership

507032400

Unavailable
