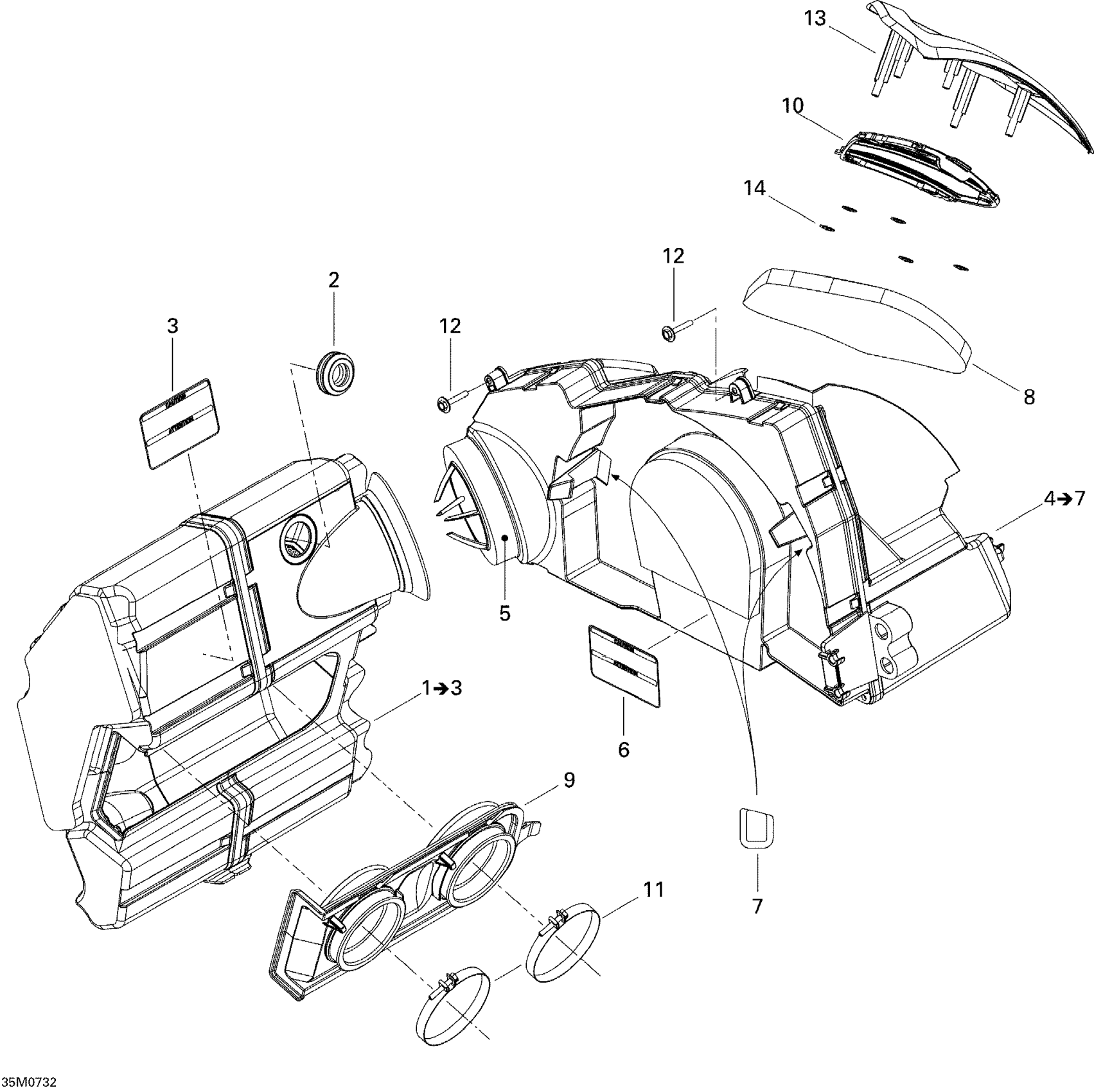

Ski-Doo Summit Highmark & Highmark X 1000 SDI, 2007 Air Intake System Diagram

#

Description

Price

1

PRIMARY CHAMBER ASS'Y - Call your local BRP dealership

508000354

Unavailable

2

GROMMET - Call your local BRP dealership

570065500

Unavailable

3

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

4

Secondary Chamber Ass'y

508000519

Unavailable

5

FOAM - Call your local BRP dealership

508000520

Unavailable

6

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

7

Protector Decal | Model Hunter

516006405

$10.99

7

LH PROTECTOR DECAL - Call your local BRP dealership

516001911

Unavailable

8

AIR FILTER - Call your local BRP dealership

508000367

Unavailable

9

ADAPTOR PLATE ASS'Y - Call your local BRP dealership

508000451

Unavailable

10

INTAKE FILTER - Call your local BRP dealership

508000506

Unavailable

11

Gemi Clamp

508000346

$10.33

12

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

13

Deflector

508000461

Unavailable

14

Push Nut

732610072

$2.19
