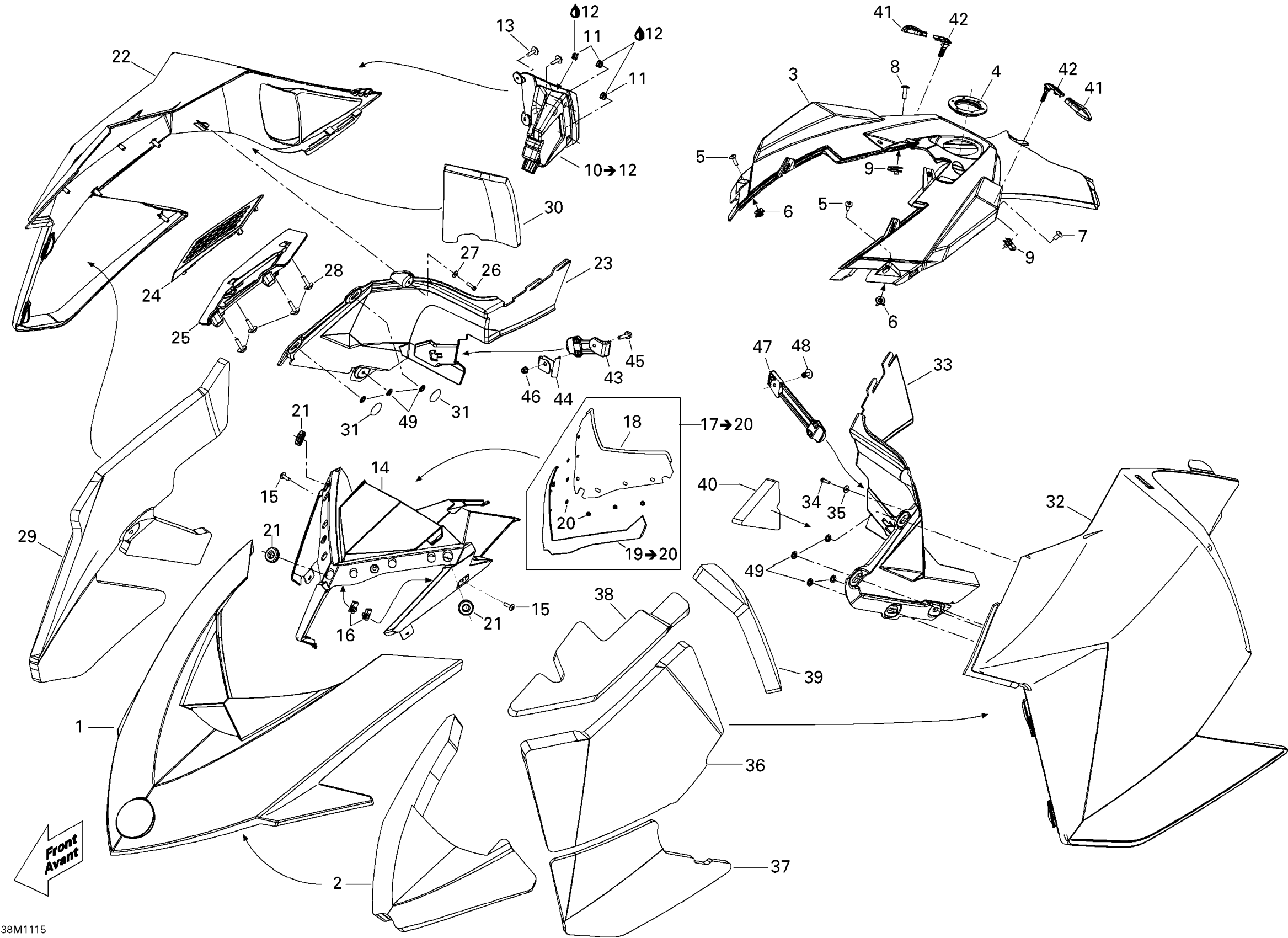

Ski-Doo Summit FREERIDE 800R E-TEC, 2011 Hood Diagram

#

Description
Price

1

HOOD B-229 - Call your local BRP dealership | White Model 600 ETEC

517304531

Unavailable

2

Hood Foam

517304913

$20.12

3

CONSOLE, BRIGHT WHITE - Call your local BRP dealership | White

517304638

Unavailable

4

Console Nut

517304518

$13.37

5

Torx Screw M6 X 20

250000722

$1.54

6

JACK NUT M6 - Call your local BRP dealership

732610057

Unavailable

7

Torx Truss Screw M6 X 16

250000721

$1.60

8

Torx Screw M6 X 20

250000722

$1.54

9

Panel Nut M6 X 1.0

250100198

$1.99

10

Black, RH Console | Includes 400 to 400b

517304322

$32.81

11

Black, Cap

275500241

$3.16

12

Loctite, Black Max, 3 ml

413408300

$23.85

13

Screw M4 X 16

250000725

$3.30

14

GAUGE SUPPORT - Call your local BRP dealership

517304581

Unavailable

15

Torx Screw M6 X 20

250000722

$1.54

16

Panel Nut M6 X 1.0

250100198

$1.99

17

Low Windshield Ass'y (140)

517304226

$99.22

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Windshield Support Kit

860200089

$23.85

20

Push Nut

732610072

$1.97

21

Grommet

517303756

$3.61

22

PANEL_BODY RH B-229 - Call your local BRP dealership | Manual Starter

517304422

Unavailable

23

Deep Black RH Moulding Panel

517303671

$26.09

24

EXTERNAL GRILL - Call your local BRP dealership

517304763

Unavailable

25

INTERNAL GRILL - Call your local BRP dealership

517304764

Unavailable

26

Hex. Flange Screw K40 X 16

241141660

$1.43

27

Flat Washer 4 mm, Stainless

234042600

$1.06

28

Screw M4 X 16

250000725

$3.30

29

RH Center Foam

517304883

$39.52

30

RH Panel Rear Foam

517304884

$14.90

31

Adhesive Patch

518325560

$4.21

32

PANEL_BODY LH B-229 - Call your local BRP dealership

517304426

Unavailable

33

Deep Black, LH Moulding Panel

517303673

$26.09

34

Hex. Flange Screw K40 X 16

241141660

$1.43

35

Flat Washer 4 mm, Stainless

234042600

$1.06

36

LH Panel Center Foam

517304887

$25.34

37

LH Panel Lower Foam

517304888

$20.12

38

LH Panel Upper Foam

517304889

$17.88

39

LH Panel Rear Foam

517304890

$13.54

40

Foam

517304891

$17.88

41

END PIECE LATCH - Call your local BRP dealership

517304435

Unavailable

42

Panel Latch

517303981

$9.49

43

RH Panel Latch

517303612

$9.21

44

Latch Support

517304221

$6.30

45

Hex.Flange Screw M5 X 20

207652044

$1.79

46

Hex. Flange Elastic Nut M5

233251414

$1.91

47

LH Panel Latch

517303808

$9.61

48

Pop Rivet 3/16”

293150108

$1.19

49

Push Nut

732610072

$1.97
