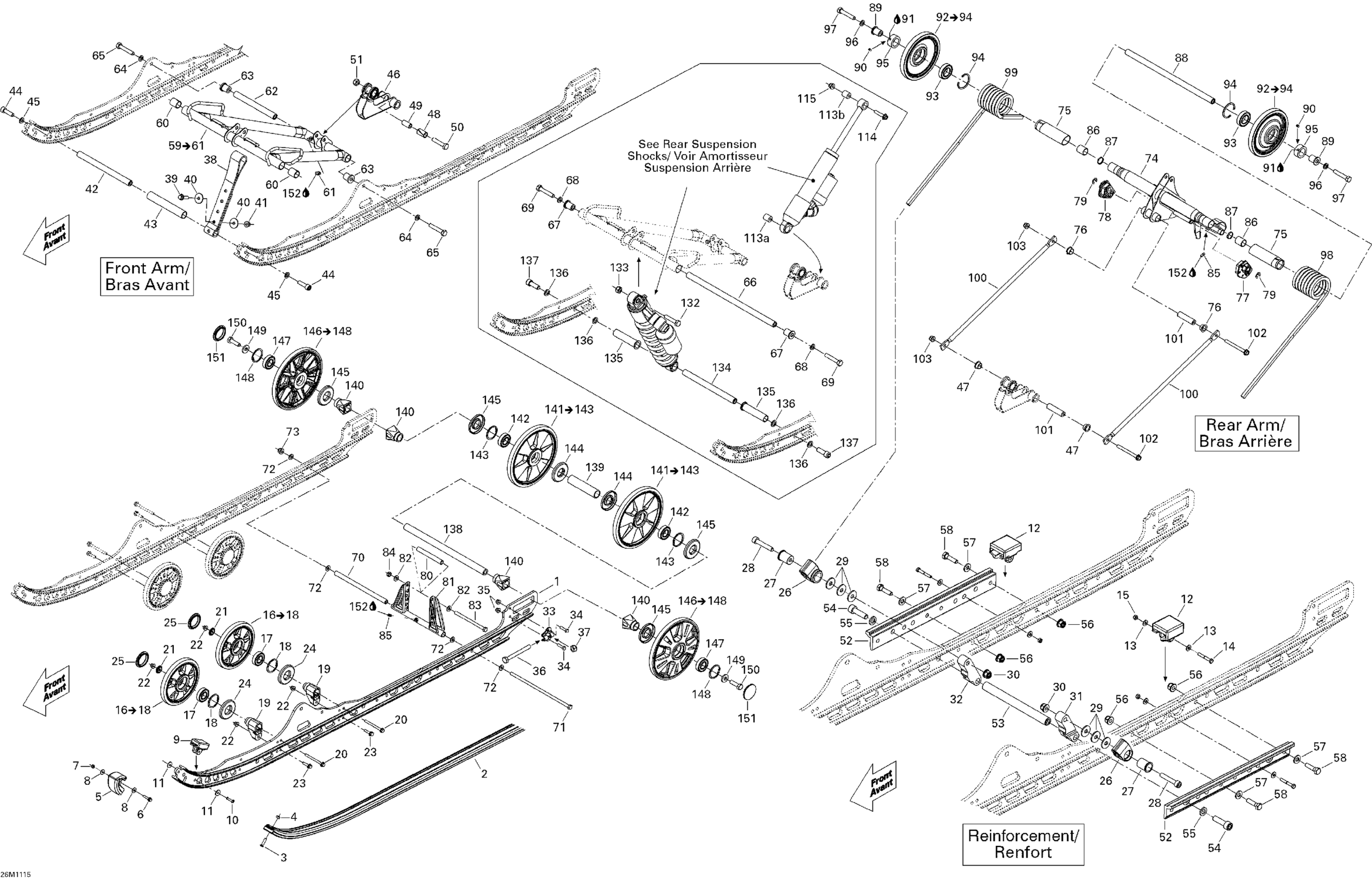

Ski-Doo Summit FREERIDE 800R E-TEC, 2011 Rear Suspension Diagram

RUNNER 154, GOLD - Call your local BRP dealership

503192482

Unavailable

Black, Slider 154

503191198

$33.05

Phillips Screw M6 X 25

208562531

$1.74

Elastic Stop Nut M6

232561414

$1.55

Runner Protector

503192299

$23.82

Hex. Flange Screw M5 X 25

207652544

$0.42

Hex. Flange Elastic Nut M5

233251414

$1.66

Washer | DS 650 X

391301600

$0.48

Rubber Stopper

503190576

$10.23

Pop Rivet 3/16"

293150142

$2.11

Washer

503191273

$1.06

RAIL STOPPER MIDDLE, FREERIDE - Call your local BRP dealership

503190741

Unavailable

WASHER - Call your local BRP dealership

503192493

Unavailable

Hex. Cap Screw M5 X 35

250000483

$5.22

Elastic Stop Nut M5

232551414

$0.72

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$46.12

Ball Bearing | Package-STD

503190396

$7.12

Retaining Ring

415129371

$8.92

Casted Support

503193894

$12.75

Hex. Flange Screw M6 X 70

250001027

$1.74

Wheel Cup M6

503191820

$4.66

ELASTIC FLANGE NUT M6 - Call your local BRP dealership

250100130

Unavailable

Hex. Flange Screw M6 X 25

207662556

$3.61

Labyrinth Seal

503190434

$5.85

Wheel Cap

570063600

$3.28

Spring Support Kit

861805547

$8.14

Spring Support Kit

861805547

$8.14

Socket Head Screw M8 X 45

205084544

$0.74

Flat Washer 8 mm

234082410

$1.11

Elastic Flange Nut M8

250100131

Unavailable

LH SPRING SUPPORT - Call your local BRP dealership

503192486

Unavailable

RH SPRING SUPPORT - Call your local BRP dealership

503192487

Unavailable

Tensioner

503192583

$5.85

HEX. SCREW CAP FULL THREAD M6 X 25 - Call your local BRP dealership

250000479

Unavailable

Elastic Flange Nut M6 X 1.0

233261416

$1.74

HEX. SCREW CAP FULL THREAD M10 X 100 - Call your local BRP dealership

250000481

Unavailable

ELASTIC LOCKING NUT M10 - Call your local BRP dealership

250100132

Unavailable

Stopper Strap

503192360

$19.97

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

Flat Washer

224081301

$0.86

Hex. Flange Elastic Nut M8

233281414

$1.14

Axle Strap

503191260

$29.20

Spacer

503191448

Unavailable

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

Washer

503189564

$0.72

ROCKER - Call your local BRP dealership

503192467

Unavailable

Swivel Bushing

503191555

$5.71

Bushing

503193037

$15.35

Bushing | Includes 240d to 240d1

503189282

$4.18

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

REINFORCEMENT, BLACK - Call your local BRP dealership

503193907

Unavailable

AXLE - Call your local BRP dealership

503192485

Unavailable

SOCKET SCREW M10 X 55 - Call your local BRP dealership

250000489

Unavailable

Washer

503192496

$0.75

Hex. Flange Elastic Nut M8

233281414

$1.14

Washer

503192494

$3.11

HEX. CAP SCREW FULL THREAD M8 X 30 - Call your local BRP dealership

250000482

Unavailable

FRONT ARM ASS'Y - Call your local BRP dealership | Includes 17 to 19

503191580

Unavailable

Extended Bushing

503191556

$5.71

Grease Fitting

408200700

$2.80

Lower Shaft

503191279

$27.66

Bushing

503189324

$11.17

Washer

503192496

$0.75

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

250000469

Unavailable

Upper Shaft

503191215

$36.12

Bushing

503191262

$13.60

Washer

503192496

$0.75

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

250000469

Unavailable

Pivot Arm Axle

503189156

$20.74

Bolt M8 X 248mm

503192440

$29.97

Washer

503192494

$3.11

Elastic Flange Nut M8

250100131

Unavailable

Rear Arm | Includes 3000a to 3000a7

503192464

$193.82

Bushing

572080700

$15.26

Swivel Bushing

503191555

$5.71

LH Cam Adjuster

503191565

$13.95

RH Cam Adjuster

503191566

$13.95

E-Circlip

293370013

$0.62

Upper Axle, Pivot Arm

503144300

$11.98

Pivot Arm | Includes 3000j to 3000j3

503191209

$118.43

Washer

503189157

$3.20

Bolt M8, Short

732601197

$15.06

Hex. Elastic Stop Nut M8

232581414

$0.47

Grease Fitting

408200700

$2.80

Extended Bushing

503191556

$5.71

Washer

503191651

$7.49

Upper Shaft

503191215

$36.12

Bushing

503191262

$13.60

Socket Set Screw M6 X 8

206260844

$1.25

Loctite 243, 10 ml

293800060

$20.77

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$46.12

Ball Bearing

503193548

$16.89

Retaining Ring

415129371

$8.92

Retaining Ring

503168800

$12.65

Washer

503192496

$0.75

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

250000469

Unavailable

LH Spring

503192081

$66.89

RH Spring

503192080

$66.89

Link Rod

503192465

$50.74

Axle Bar (Long)

503190643

$15.35

Hex. Flange Screw

207688544

$1.68

Hex. Flange Elastic Nut M8

233281414

$1.14

Leg Cushion

505072663

$7.40

Bushing

414936000

$11.55

Hex. Flange Screw M8 X 40

207684044

$1.25

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

Center Bushing

503191259

$8.97

Washer

503192491

$4.38

Socket Screw M12 X 35

250000484

$6.18

Rear Axle

503190429

$59.97

Rear Spacer

503191263

$15.35

Rear Wheel Spacer

503190428

$6.06

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

$49.97

Ball Bearing | Package-STD

503190396

$7.12

Retaining Ring

415129371

$8.92

Labyrinth Seal

503190682

$5.85

Labyrinth Seal

503190434

$5.85

Wheel 200, Black | Includes 600 to 600b

503191741

$49.97

Ball Bearing | Package-STD

503190396

$7.12

Retaining Ring

415129371

$8.92

Washer

503190439

$5.82

Hex. Screw With Nylon

250000019

$1.42

Wheel Cap

570063600

$3.28

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
