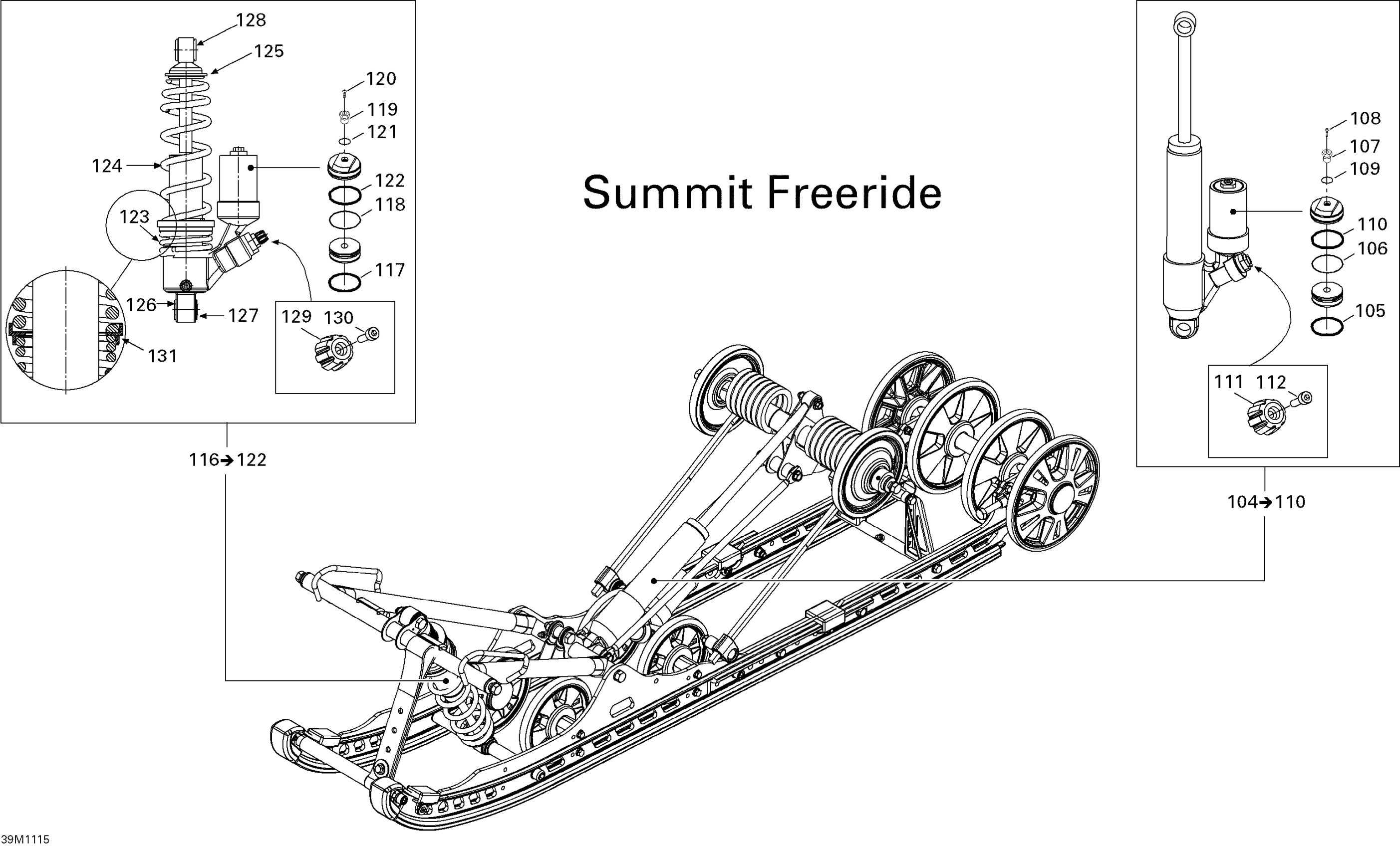

Ski-Doo Summit FREERIDE 800R E-TEC, 2011 Rear Suspension Shocks Diagram

Description

Price

104

REAR SHOCK - Call your local BRP dealership | Includes 74a to 74g

503192459

Unavailable

105

O-Ring

415093807

$33.55

106

Piston Ring | Not Shown

415093806

$14.52

107

Air Valve

505070398

$17.13

108

Screw | Not Shown

505070399

$3.88

109

O-Ring

505070400

$4.25

110

O-Ring

415093804

$4.25

111

Adjustment Knob

505072753

$2.01

112

Allen Screw M3 X 0.5 X 10

250000644

$2.00

116

CENTER SHOCK - Call your local BRP dealership | Includes 116 to 122

503192458

Unavailable

117

O-Ring

415093807

$33.55

118

Piston Ring | Not Shown

415093806

$14.52

119

Air Valve

505070398

$17.13

120

Screw | Not Shown

505070399

$3.88

121

O-Ring

505070400

$4.25

122

O-Ring

415093804

$4.25

123

Black Spring

503192744

$85.79

124

Black, Spring

503192724

$85.79

125

Spring Stopper

503194270

$16.39

126

Urethane Bushing

503189117

$6.67

127

Bushing | Includes 240d to 240d1

503189282

$4.06

128

Bushing

503189271

$10.15

129

Adjustment Knob

505072753

$2.01

130

Allen Screw M3 X 0.5 X 10

250000644

$2.00

131

Spring Spacer

503192743

$12.27
