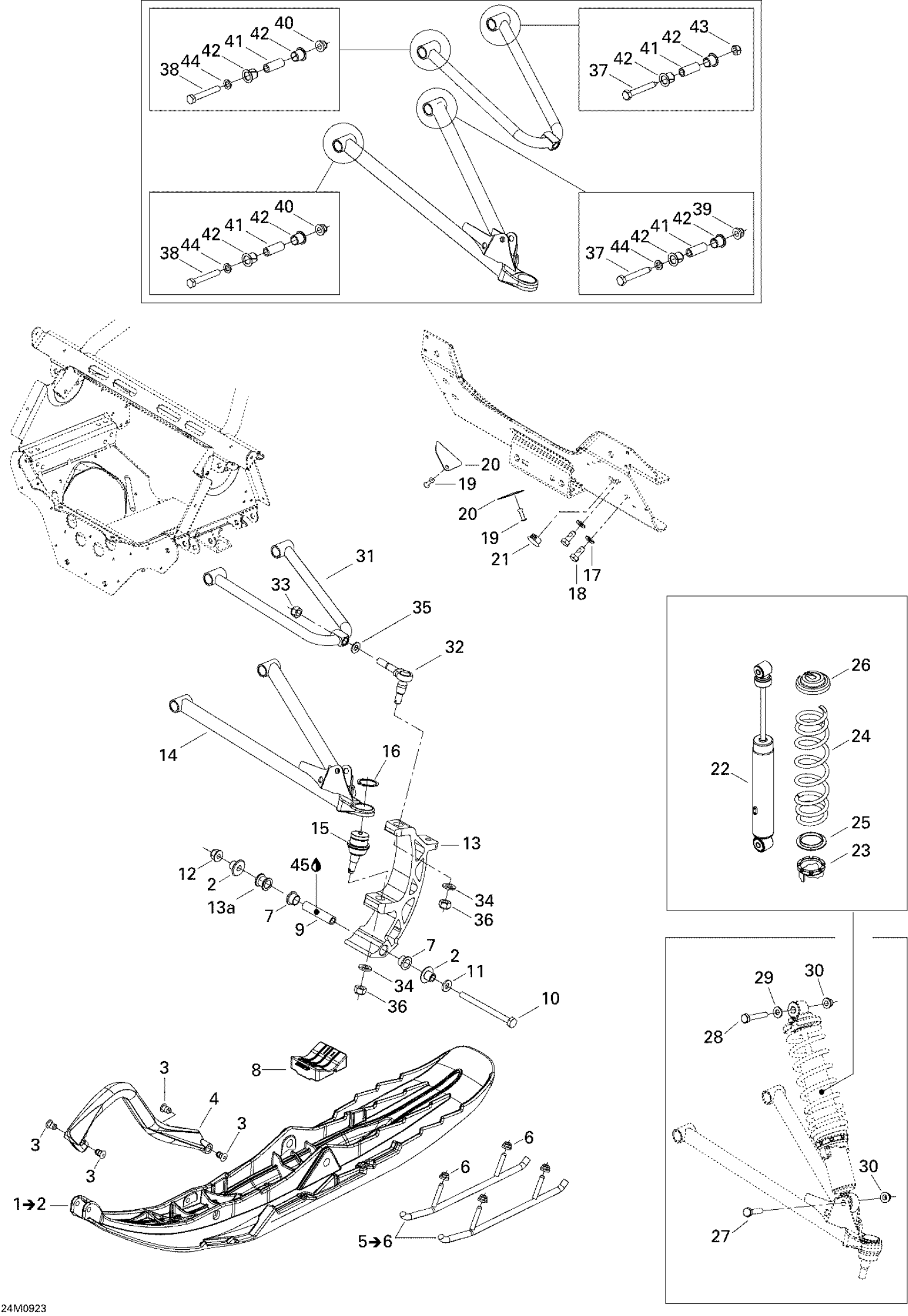

Ski-Doo Summit Fan, 2009 07- Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$179.99

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$179.99

2

Ski Bushing

505071781

$16.18

3

Retainer 17mm long

505071812

$5.95

4

Black, Handle

505070963

$35.99

5

Ens.Lisse Exten*Rev Pilot Extender | Includes 5 to 6 This part replaces 860200123.

860200145

$92.99

6

Hex. Flange Elastic Nut M8

233281414

$1.47

7

Leg Bushing

505072690

$12.49

8

Ski Stopper

505071779

$18.78

9

Spacer

506133300

$23.99

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

11

Washer

732900049

$0.58

12

Flange Nut M10

732610084

$6.79

13

SKI LEG - Call your local BRP dealership

505071248

Unavailable

13a

SPACER - Call your local BRP dealership

505071215

Unavailable

14

RH LOWER ARM ASS'Y - Call your local BRP dealership

860512900

Unavailable

14

LH LOWER ARM ASS'Y - Call your local BRP dealership

860512800

Unavailable

15

Ball Joint

505073636

$51.99

16

Circlip

293370035

$2.64

17

Flat Washer 8 mm

234081410

$0.83

18

Hex. Screw With Nylon

250000118

Unavailable

19

Pop Rivet 3/16"

293150103

$0.55

20

ALUMINIUM PLUG - Call your local BRP dealership

505071131

Unavailable

21

CAP - Call your local BRP dealership

572072100

Unavailable

22

FRONT SHOCK - Call your local BRP dealership

505071662

Unavailable

23

Adjustment Cam

505073625

$12.99

24

Viper Red Spring

505072022

Unavailable

25

Spring Guide

503187500

$10.49

26

Spring Stopper

706200881

$12.99

27

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

28

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

29

Washer

503189564

$0.74

30

Hex. Flange Elastic Nut M10

233201414

$1.58

31

UPPER ARM - Call your local BRP dealership

505071816

Unavailable

32

Upper Ball Joint

505072257

$17.58

33

Hex. Elastic Hex. Nut M12

250100089

$0.46

34

Flat Washer 12 mm

234021410

$0.72

35

Washer

503189276

$3.28

36

Hex. Elastic Hex. Nut M12

250100089

$0.46

37

Hex. Screw M10 X 75

250001063

$13.16

38

Hex. Screw M10 X 75

250001063

$13.16

39

Hex. Flange Elastic Nut M10

250100165

$0.85

40

Hex. Flange Elastic Nut M10

250100165

$0.85

41

Bushing

505070567

$24.99

42

Arm Bushing

505070566

$3.28

43

Elastic Flange Nut M10

232501416

$1.48

44

Washer

503189564

$0.74

45

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
