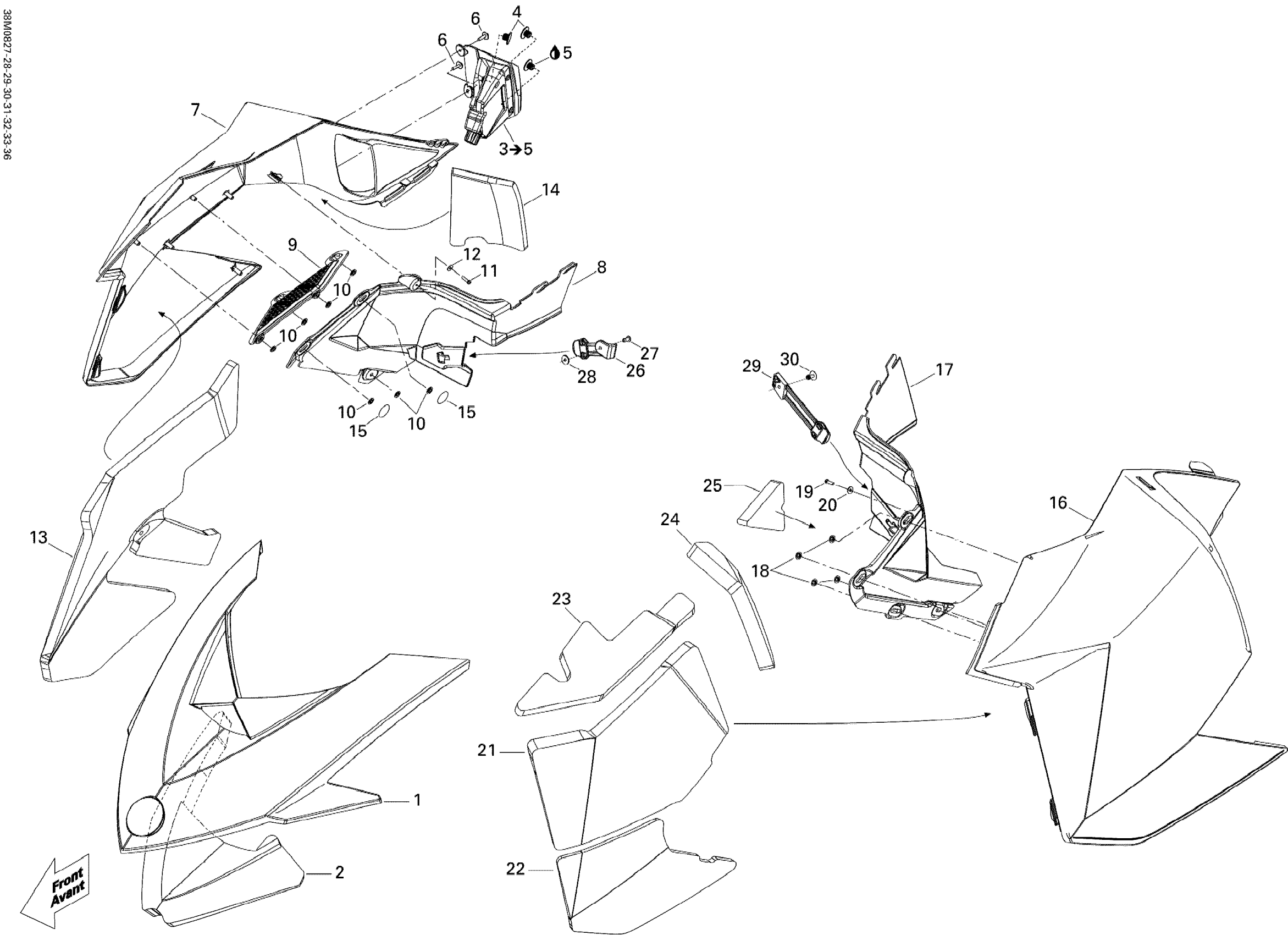

Ski-Doo Summit EVEREST 800R, 2008 09- Hood Diagram

#

Description
Price

1

Deep Black Hood | Deep Black

517304530

$214.99

2

Hood Foam

517304913

$22.49

3

Black, RH Console | Includes 400 to 400b

517304322

$35.99

4

Black, Cap

275500241

$3.49

5

Loctite, Black Max, 3 ml

413408300

$26.99

6

Screw M4 X 16

250000725

$3.49

7

VOLCANO GREY RH PANEL - Call your local BRP dealership

517303937

Unavailable

8

Deep Black RH Moulding Panel

517303671

$28.99

9

Grille

517303622

$31.99

10

Push Nut

732610072

$2.19

11

Hex. Flange Screw K40 X 16

241141660

$1.48

12

Flat Washer 4 mm, Stainless

234042600

$1.15

13

RH Center Foam

517304883

$43.99

14

RH Panel Rear Foam

517304884

$19.99

15

Adhesive Patch

518325560

$4.69

16

PANEL_BODY LH B-281 - Call your local BRP dealership

517303934

Unavailable

17

Deep Black, LH Moulding Panel

517303673

$28.99

18

Push Nut

732610072

$2.19

19

Hex. Flange Screw K40 X 16

241141660

$1.48

20

Flat Washer 4 mm, Stainless

234042600

$1.15

21

LH Panel Center Foam

517304887

$27.99

22

LH Panel Lower Foam

517304888

$22.49

23

LH Panel Upper Foam

517304889

$21.99

24

LH Panel Rear Foam

517304890

$17.99

25

Foam

517304891

$21.99

26

RH Panel Latch

517303612

$9.99

27

Pop Rivet 3/16"

390402300

$0.75

28

Washer

517124300

$0.19

29

LH Panel Latch

517303808

$11.49

30

Pop Rivet 3/16”

293150108

$1.19
