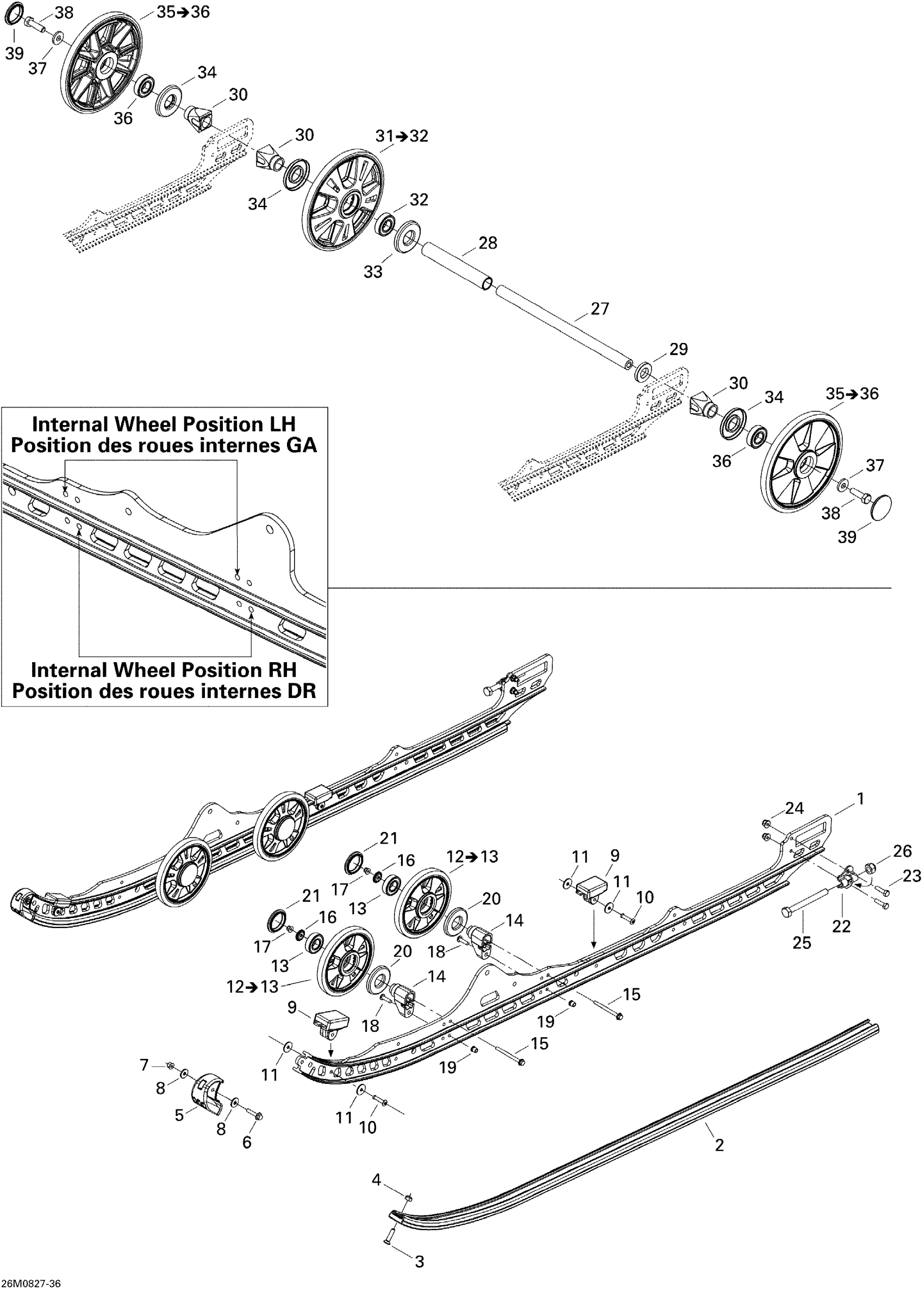

Ski-Doo Summit EVEREST 800R, 2008 Rear Suspension Diagram

#

Description
Price

1

RUNNER - Call your local BRP dealership | Track 154"

503191196

Unavailable

1

Runner | Track 146"

503191495

Unavailable

2

Black, Slider 154

503191198

$33.05

2

Black, Slider 146

503191499

$33.05

3

Phillips Screw M6 X 25

208562531

$1.74

4

Elastic Stop Nut M6

232561414

$1.55

5

Runner Protector

503191137

$10.20

6

Hex. Flange Screw M5 X 25

207652544

$0.42

7

Hex. Flange Elastic Nut M5

233251414

$1.66

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

503190576

$10.23

10

Pop Rivet 3/16"

293150142

$2.11

11

Washer

503191273

$1.06

12

Black, Wheel Ass'y 152 mm | Includes 450 to 450b

503191755

$46.12

13

Ball Bearing | Package-STD

503190396

$7.12

14

Casted Support

503193894

$12.75

15

Hex. Flange Screw M6 X 70

207667044

$0.70

16

Wheel Cup M6

503191820

$4.66

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

18

Hex. Flange Screw M6 X 25

207662544

$0.53

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

20

Labyrinth Seal

503190434

$4.29

21

Wheel Cap

570063600

$3.28

22

Tensioner

503192583

$5.85

23

Hex. Screw M6 X 25

207162544

$1.05

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

25

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

26

Elastic Locking Nut M10 X 1.5

233601416

$1.68

27

Rear Axle

503190429

$59.97

28

Spacer

503196317

$15.35

29

Washer

503190432

$12.52

30

Rear Wheel Spacer

503190428

$6.06

31

Black, Wheel Ass'y 200 mm | Includes 670 to 670b

503193098

$49.97

32

Ball Bearing | Package-STD

503190396

$7.12

33

Labyrinth Seal

503190682

$5.85

34

Labyrinth Seal

503190434

$4.29

35

Wheel 200, Black | Includes 600 to 600b

503191741

$49.97

36

Ball Bearing | Package-STD

503190396

$7.12

37

Washer

503190439

$5.82

38

Hex. Screw With Nylon

250000019

$1.42

39

Wheel Cap

570063600

$3.28
