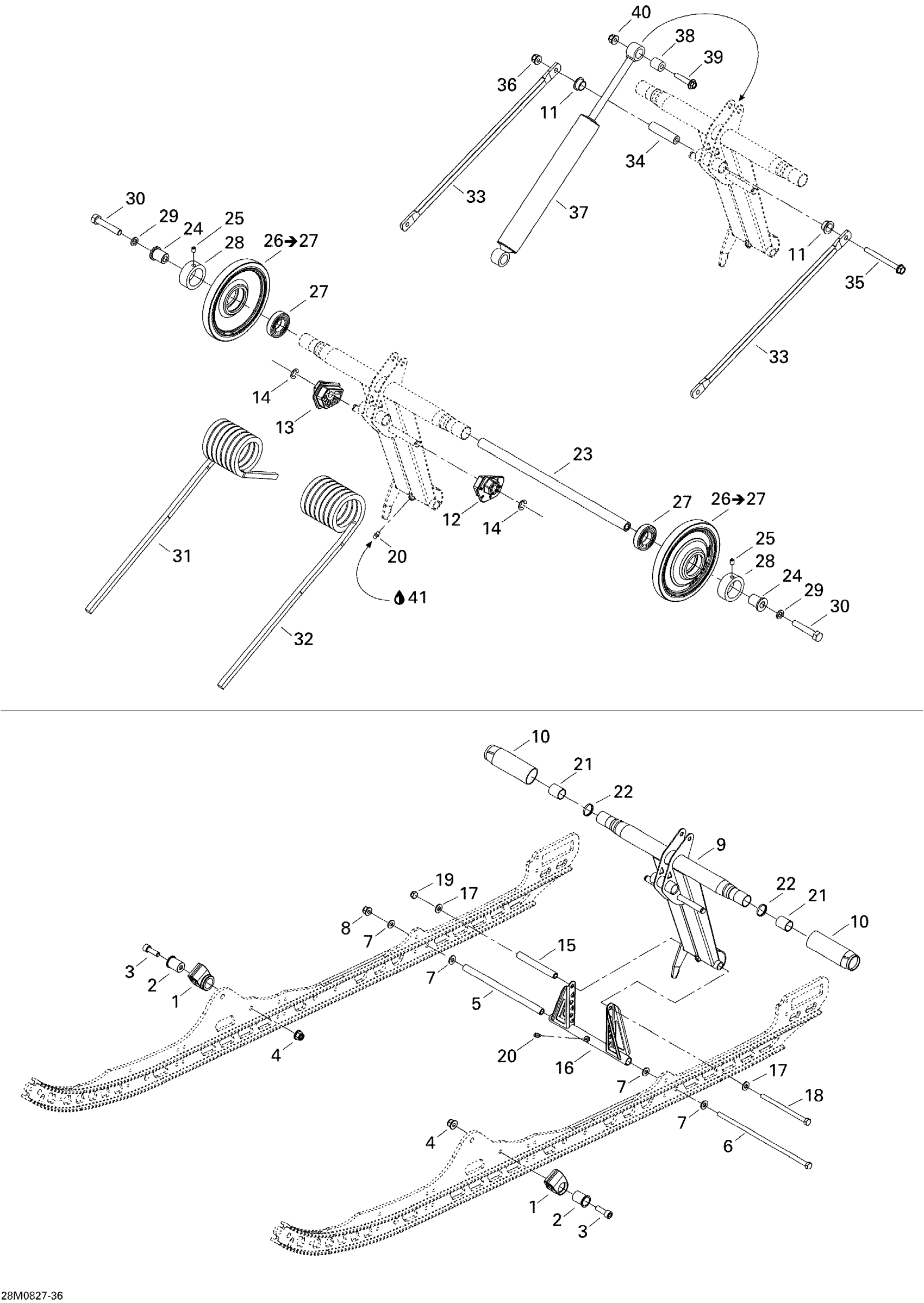

Ski-Doo Summit EVEREST 800R, 2008 Rear Arm Diagram

#

Description
Price

1

Spring Support Kit

861805547

$7.90

2

Spring Support Kit

861805547

$7.90

3

Socket Head Screw M8 X 25

205082544

$1.06

4

Hex. Flange Elastic Nut M8

233281414

$1.31

5

Pivot Arm Axle

503189156

$20.12

6

Bolt M8 X 248mm

503192440

$29.07

7

Washer

503189157

$3.10

8

Hex. Flange Elastic Nut M8

233281414

$1.31

9

Rear Arm | Includes 3000a to 3000a7

503191762

$91.01

10

Bushing

572080700

$14.81

11

Swivel Bushing

503191555

$5.54

12

LH Cam Adjuster

503191565

$13.54

13

RH Cam Adjuster

503191566

$13.54

14

E-Circlip

293370013

$0.60

15

Upper Axle, Pivot Arm

503144300

$10.84

16

Pivot Arm | Includes 3000j to 3000j3

503191209

$114.90

17

Washer

503189157

$3.10

18

Bolt M8, Short

732601197

$14.61

19

Hex. Elastic Stop Nut M8

232581414

$0.54

20

Grease Fitting

408200700

$3.21

21

Extended Bushing

503191556

$5.54

22

Washer

503191651

$7.27

23

Upper Shaft

503191215

$35.04

24

Bushing

503191262

$13.19

25

Socket Set Screw M6 X 8

206260844

$1.43

26

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$44.75

27

Ball Bearing

503193548

$16.39

28

Retaining Ring

503168800

$12.27

29

Washer

503189564

$0.70

30

HEX. SCREW M10 X 55, SCOTCH GRIP - Call your local BRP dealership

207205586

Unavailable

31

RH Spring

503192080

$64.90

32

LH Spring

503192081

$64.90

33

ROD_LINK - Call your local BRP dealership

503191148

Unavailable

34

Axle Bar (Long)

503190643

$14.90

35

Hex. Flange Screw

207688544

$1.63

36

Hex. Flange Elastic Nut M8

233281414

$1.31

37

Rear Shock

503191587

Unavailable

38

Bushing

414936000

$11.21

39

Hex. Flange Screw M8 X 40

207684044

$1.43

40

Hex. Flange Elastic Nut M8

233281414

$1.31

41

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
