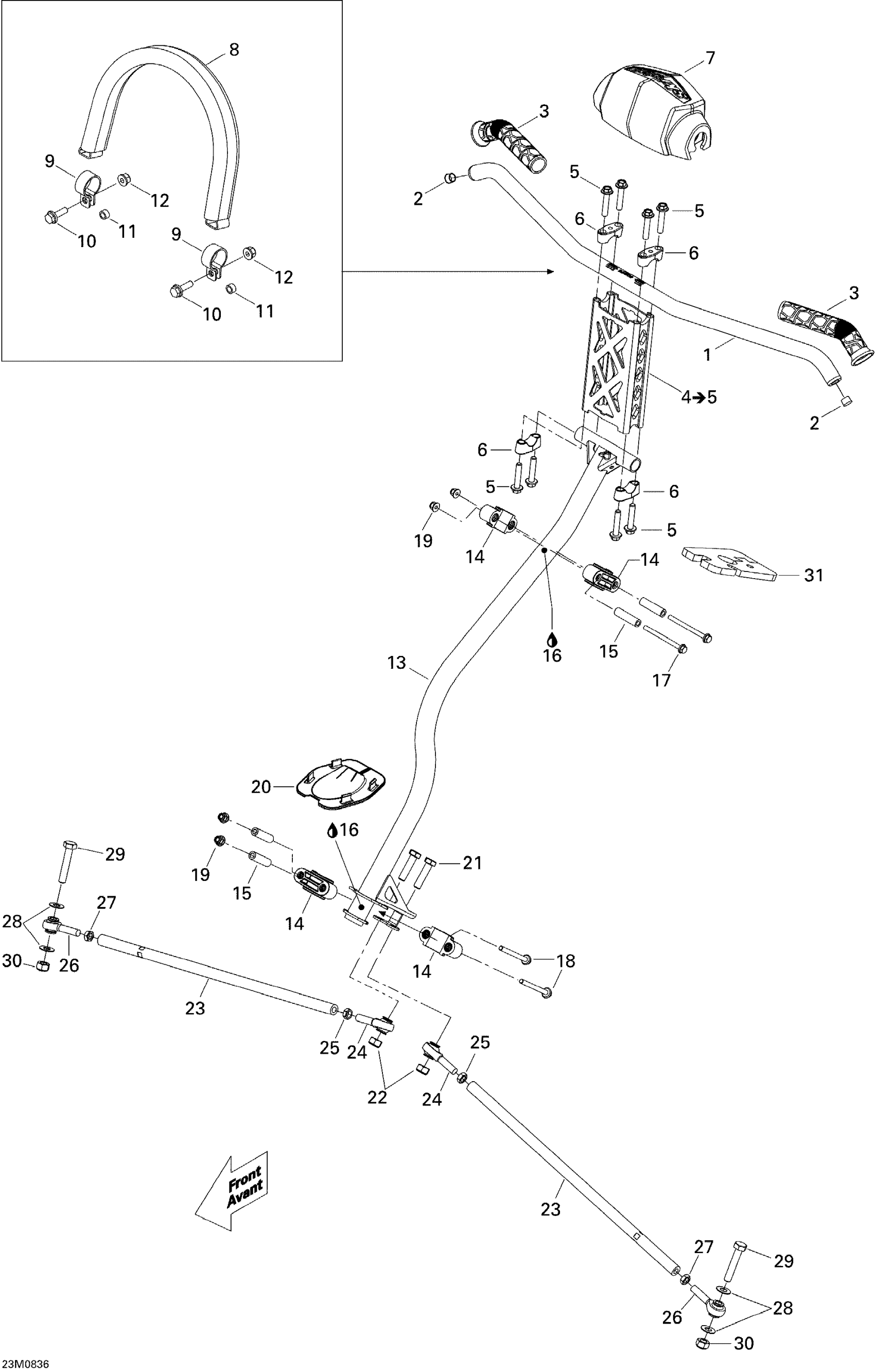

Ski-Doo Summit EVEREST 800R, 2008 Steering Diagram

#

Description
Price

1

Handle Bar, Non Dyed Clear Anodizing

506152709

$79.07

2

Cap

572051500

$5.22

3

Grip

506152486

$14.27

4

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$86.54

5

Hex. Flange Screw M8 x 40

250000285

$0.75

6

Steering Support | Includes 40 to 40a

506152751

$11.58

7

Steering Pad

506152192

$52.96

8

Strap Ass'y | Package XMR

506152115

$41.76

9

Black Support Plate

506152536

$8.34

10

Hex. Flange Screw M6 X 20

207662084

$0.96

11

Bushing | Package XMR

506152156

$5.19

12

Hex. Flange Elastic Nut M6

233261494

$1.45

13

Steering Column

506152964

$183.55

14

Half-Housing

506152293

$9.93

15

Housing Bushing

506152297

$9.93

16

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

17

Hex. Flange Screw M6 X 70

207667056

$4.15

18

HEX. FLANGED SCREW M6 X 65 - Call your local BRP dealership

207666534

Unavailable

19

Elastic Flange Nut M6 X 1.0

233261416

$2.00

20

Plate

506152163

$9.93

21

Hex. Screw M10 X 1.5 X 40

207004034

$2.00

22

Elastic Stop Nut M10

232500416

$1.79

23

Tie-Rod

506152498

$35.79

24

LH Thread Ball Joint

506152081

$38.78

25

LH Threaded Hex. Jam Nut M10

250100016

$0.70

26

RH Threaded Ball Joint

506152019

$38.78

27

RH Threaded Hex. Jam Nut M10

732610010

$0.70

28

Washer

506152194

$4.28

29

Hex. Screw M10 X 55

207005544

$2.12

30

Elastic Stop Nut M10

232500416

$1.79

31

CUSHION - Call your local BRP dealership

506152334

Unavailable
