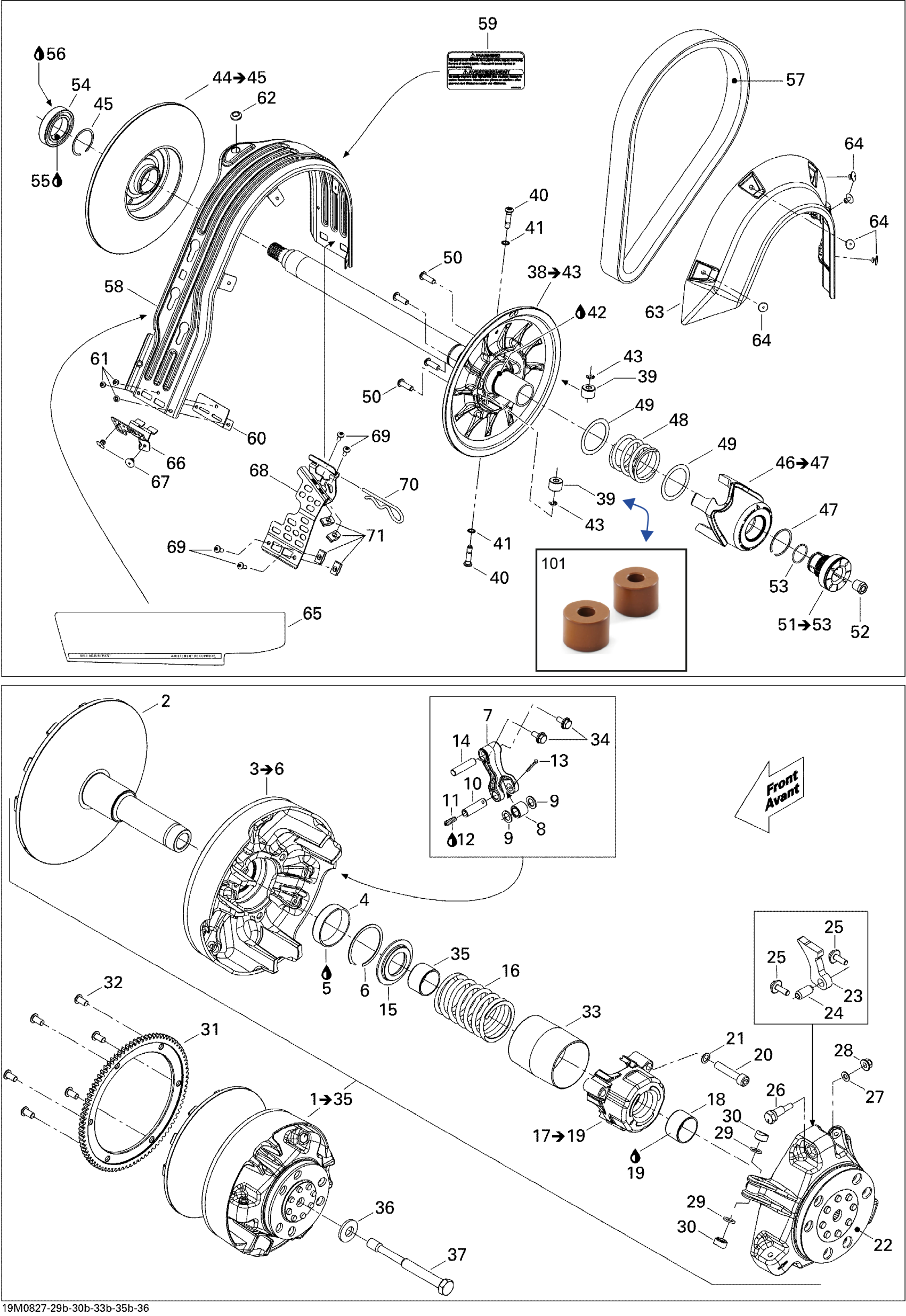

Ski-Doo Summit EVEREST 800R, 2008 05- Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222966

$459.99

3

Sliding Flange Ass'y

417223093

$299.99

4

Bushing

417223086

$36.99

5

Loctite 609, 10 ml

413703100

$26.99

6

Circlip

293370037

$3.19

7

Lever | Includes 10f to 10g

417222671

$49.99

8

Roller

417222947

$21.99

9

Stopper Washer

417004302

$15.90

10

Threaded Pin, M6 | High Altitude

417222595

$23.49

10

Threaded Pin

417222477

$25.99

11

SOCKET SET SCREW M6 X 12 - Call your local BRP dealership

250000407

Unavailable

12

Loctite 243, 10 ml

293800060

$21.49

13

Cotter Pin

250400060

$2.00

14

Lever Axle

417223164

$4.49

15

Spring Seat

417222312

$9.59

16

Spring, Violet/Violet

414817900

$39.99

17

Spring Cover Ass'y | Includes 14 to 15

417222759

$49.99

18

Bushing

417009204

$17.49

19

Loctite 609, 10 ml

413703100

$26.99

20

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

21

Lock Washer 8 mm

250200009

$2.11

22

GOVERNOR CUP - Call your local BRP dealership

417222634

Unavailable

23

Ramp 413 | Europe

417222508

$33.99

24

Spring Pin M10 X 22

250400050

$2.99

25

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

26

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

27

Washer

417005600

$4.09

28

Hex. Flange Nut M6

233061414

$1.68

29

O-Ring

732401030

$0.98

30

Slider Shoe This part replaces 420460045.

417223021

$5.90

31

Ring Gear_Starter This part replaces 417223739.

417225071

$239.99

32

Torx Screw M8 X 16

250000751

$6.11

33

Guard

417009205

$21.99

34

Serrated Hex. Flange Bolt M6

250000416

$4.23

35

BUSHING - Call your local BRP dealership

417222826

Unavailable

36

Spring Washer 14 mm

250200006

$6.99

37

DRIVE PULLEY BOLT - Call your local BRP dealership

417300296

Unavailable

38

Fixe Flange Ass'y | Includes 39 to 43

417127075

Unavailable

39

Pulley Roller

417127016

$24.49

41

Lock Washer 8 mm

250200009

$2.11

42

Loctite 609, 10 ml

413703100

$26.99

43

Circlip

414753500

$0.71

44

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

45

Circlip

293370049

$4.99

40

Stud Ass'y | Includes 39,40,41,43

415129368

Unavailable

46

Cam Ass'y | Includes 100m to 100q

417127372

$159.49

47

Circlip

293370049

$4.99

48

Violet Spring | 800R Power TEK

417127062

$46.49

49

Swivel Abutment

417127116

$9.39

50

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

51

PULLEY AJUSTABLE ASS'Y - Call your local BRP dealership | Includes 51 to 53

860200241

Unavailable

52

Not Available As Spare Part - Friction Washer

Unavailable

53

Not Available As Spare Part - Friction Washer

Unavailable

54

Ball Bearing

504152574

$35.99

55

Loctite 609, 10 ml

413703100

$26.99

56

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

57

Drive Belt

417300531

$199.99

58

Belt Guard

417300353

Unavailable

59

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

60

REINFORCEMENT - Call your local BRP dealership

417300335

Unavailable

61

Avex Rivet

390909200

$0.30

62

GROMMET - Call your local BRP dealership

517303974

Unavailable

63

Side Protector

417300356

$14.76

64

Pop Rivet 3/16"

293150103

$0.55

65

Not Available As Spare Part - Friction Washer

Unavailable

66

BELT GUARD BRACKET - Call your local BRP dealership

417300358

Unavailable

67

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

68

Belt Guard Bracket

417300354

Unavailable

69

Torx Screw M5 X 14

250000742

$1.47

70

Hair Pin

114045200

$11.11

71

Panel Nut M5 X 0.8

250000958

$4.23

72

LABEL - Call your local BRP dealership

516003601

Unavailable

101

QRS XD Roller Kit (2)

861805577

$82.99
