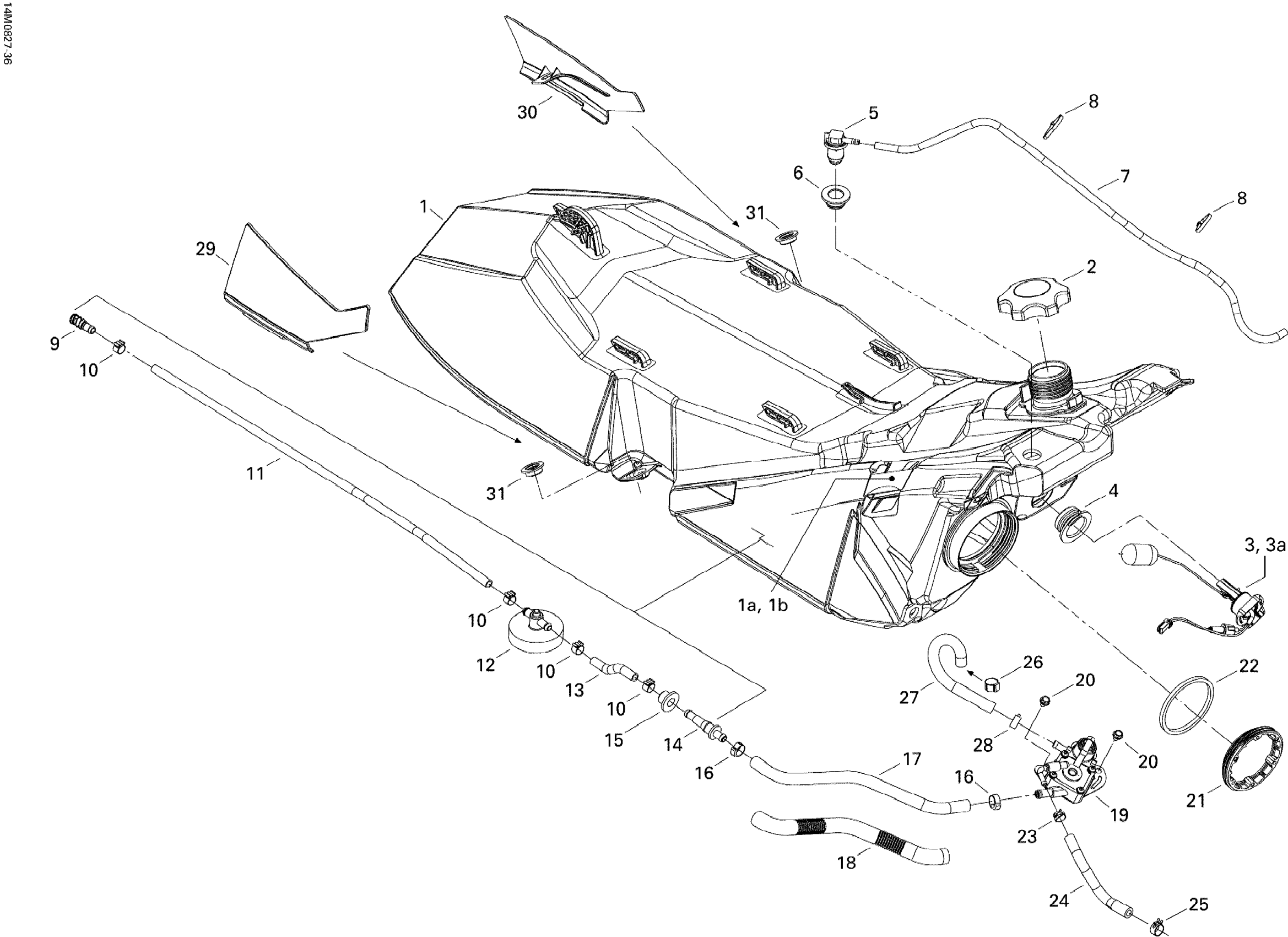

Ski-Doo Summit EVEREST 800R, 2008 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033515

Unavailable

1a

RH Panel Clip

513033471

$5.36

1b

LH Panel Clip

513033472

$5.36

2

Fuel Tank Cap 91 Octane

513033722

$22.36

3

Sensor Level Fuel | Includes 40 to 40a

513033958

$101.46

3a

Fuse, 0.5 Ampère

710001995

$7.25

4

GROMMET - Call your local BRP dealership

513033193

Unavailable

5

Check Valve

513033842

$32.81

6

Grommet

513033596

$17.88

7

Polyurethane Hose 10000Mm Long

219704410

$52.96

8

Tie-Rap 180 mm

414115200

$0.10

9

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

10

Norma Spring Clamp

513033010

$8.42

11

Polyurethane Hose 1000Mm Long

219704391

Unavailable

12

Multi-Point Pick-Up

513033353

$41.01

13

Formed Hose

513033352

$17.13

14

Male Connector

414872700

Unavailable

15

Grommet

513033435

$4.28

16

Crimp Clamp

293650053

$2.78

17

Formed Hose

513033165

$28.33

18

Tubing 16 Mm 1000Mm Long

219704408

$7.15

19

Fuel Pump

513033184

$84.99

20

Hex. Flange Screw M6 X 10

210261040

$1.43

21

Cap

513033330

Unavailable

22

Gasket

513033334

$22.36

23

Spring Clamp

414415200

$0.81

24

Formed Hose

513033327

$23.10

25

Universal Spring Clamp

513033029

$4.96

26

Oetiker Clamp

293650125

$3.09

27

Formed Hose

513033343

$23.10

28

Spring Clamp

414655700

$0.66

29

RH Cap

513033418

$12.24

30

LH Cap

513033419

$12.24

31

Shoulder Bushing

513033326

$12.24
