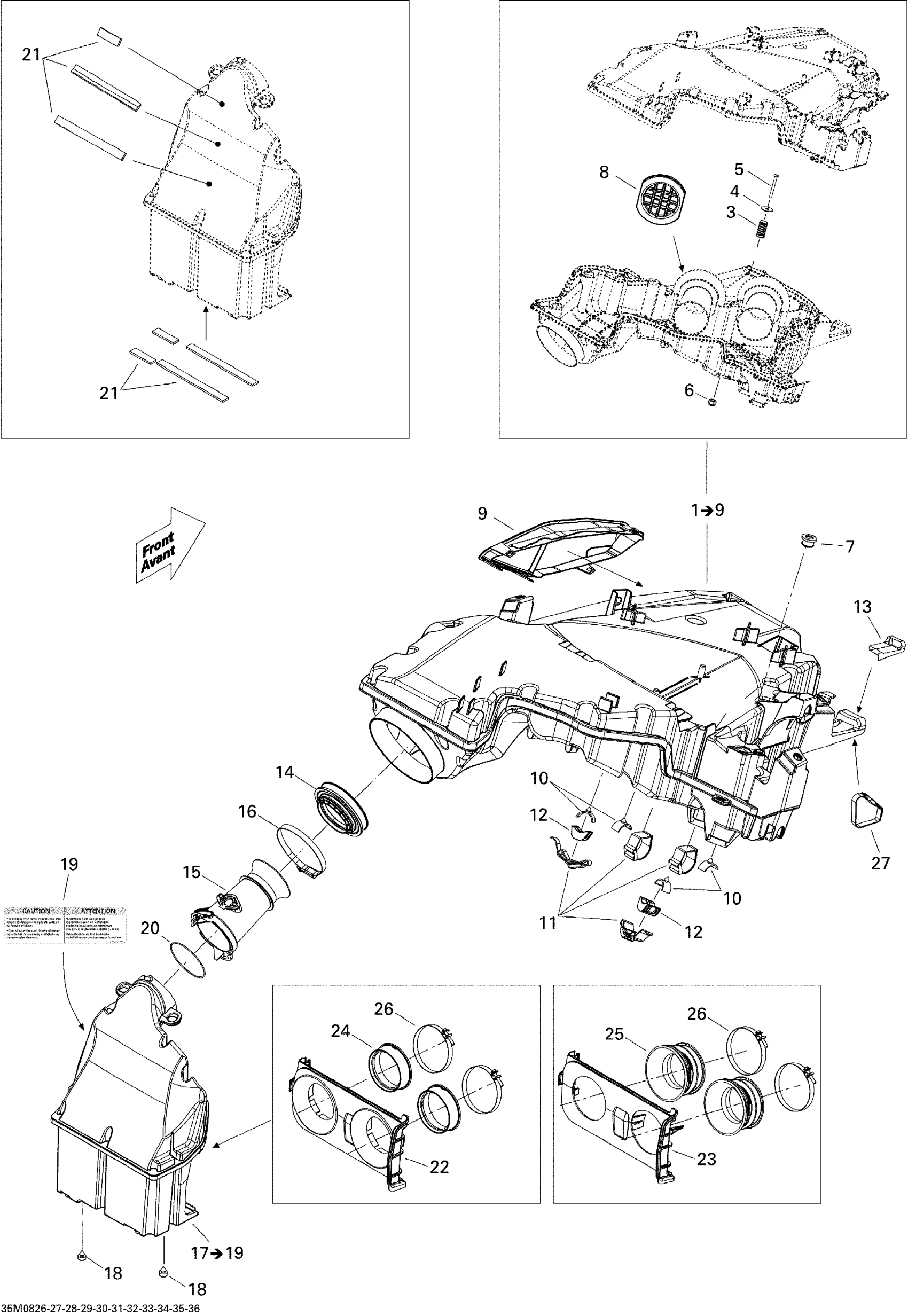

Ski-Doo Summit EVEREST 800R, 2008 02- Air Intake System Diagram

#

Description
Price

1

Secondary Chamber Ass'y | Includes 10 to 10f

508000624

$154.99

3

Spring

508000576

$7.79

4

Flat Washer

224060201

$1.26

5

Socket Head Screw M4 X 40 | X

205444086

$1.69

6

Elastic Stop Nut M4

232541414

$0.58

7

Grommet

508000574

$8.59

8

Not Available As Spare Parts

XXX

Unavailable

9

Air Intake Filter

508000568

$28.49

10

Stopper

508000537

$7.79

11

Velcro Strip

508000820

$8.59

12

Bumper

508000572

$7.51

13

REFLECTIVE SHEET - Call your local BRP dealership

508000581

Unavailable

14

Boot

508000567

$18.49

15

Flute

508000662

$15.99

16

Norma Clamp

514052924

$14.22

17

Primary Chamber Ass'y | Includes 17 to 19

508000473

Unavailable

18

Rubber Bumper

293830005

$8.09

19

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership

516003371

Unavailable

20

O-Ring

293300115

$3.77

21

Gasket, Neoprene 2000Mm Long

219704476

$15.36

22

Plate Adapter

508000500

$19.99

23

Not Available As Spare Parts

XXX

Unavailable

24

Air Intake Adapter

508000501

$20.99

25

Not Available As Spare Parts

XXX

Unavailable

26

Gemi Clamp

508000346

$10.33

27

Velcro Strip

508000599

$13.99
