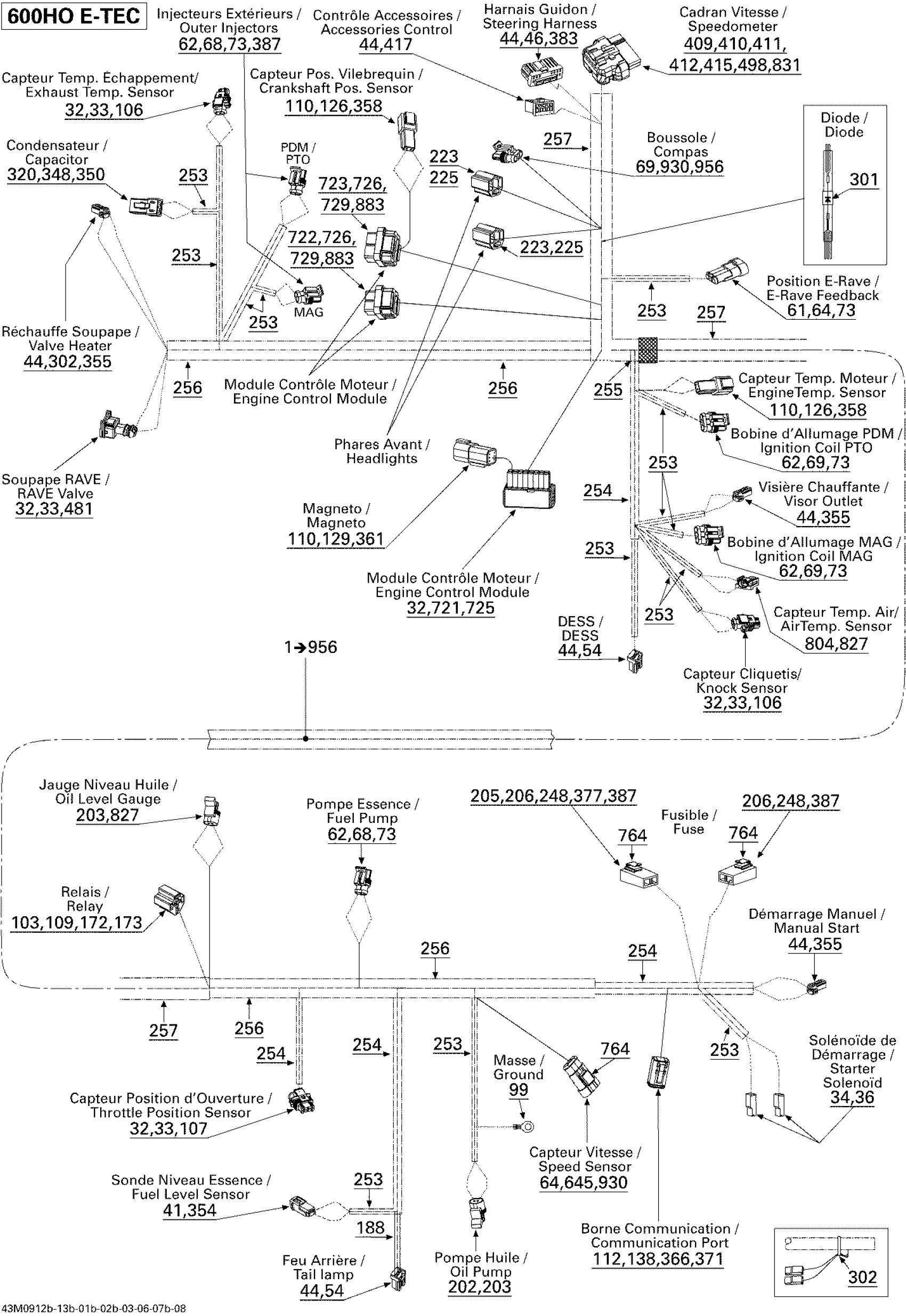

Ski-Doo Summit Everest 600 H.O. E-TEC, 2009 Electrical Harness 600 HO Diagram

#

Description
Price

1

Wiring Harness Ass'y | Includes 1 to 956

515176715

Unavailable

32

Female Terminal

278000998

$4.49

33

Wire Seal

278000999

$3.29

34

Female Terminal

409010100

$5.69

36

Female Terminal Housing, 1 Circuit

409010400

$7.79

41

Male Terminal

515175232

$1.59

44

Female Terminal

515175231

$4.49

46

Female Terminal

515175282

$7.99

54

Female Housing, 3 Circuits

515175495

$16.49

61

Male Terminal | Europe Models

409012900

$3.39

62

Female Terminal

278001014

$3.39

64

Housing

710000568

$11.49

68

Female Housing, 2 Circuits

409209500

$15.49

69

Female Housing, 3 Circuits

409209600

$36.99

73

Wire Seal

278001013

$3.39

99

Open Barrel

278000992

$2.29

103

Relay | DS 650 X

710010053

$24.49

106

Male Housing, 2 Circuits

278001005

$19.49

107

Male Housing, 3 Circuits

278000997

$19.49

109

Female Housing, 5 Circuits

409209900

$9.79

110

Male Terminal

278000631

$4.49

112

Female Terminal

278000632

$2.19

126

Male Lock, 2 Circuits

409207500

$3.29

129

Female Lock, 6 Circuits

278000735

$3.29

138

Sealing Cap

293000052

$3.29

172

Female Terminal

561503100

$2.49

173

Female Terminal

561503100

$2.49

188

Tubing 12 mm

409902000

Unavailable

196

Tie Wrap 142 mm

293750002

$1.49

202

Female Terminal

278001114

$3.29

203

Male Connector, 2 Circuits

278001113

$17.49

205

Female Terminal

409011600

$5.49

206

Female Terminal

409004200

$4.69

223

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

248

Fuse Holder

409004000

$8.29

253

Tubing 6 Mm 3000Mm Long

219704425

$13.99

254

Was 409901700 Tubing (9 mm)

219704399

$86.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.99

256

Tubing 16 Mm 1000Mm Long

219704408

$7.69

257

Was 409901600 Tubing 19mm

219704398

$97.99

258

Tubing 10 MM 1000MM Long

219704407

$2.89

301

Diode

409012700

$11.49

302

Tie Wrap 94 mm | 4X4

293750001

$1.49

320

Female Terminal

515175567

$7.89

348

Female Terminal Housing, 2 Circuits

278001673

$24.49

350

Female Lock, 2 Circuits

278001671

$3.69

354

Male Terminal Housing, 2 Circuits

515175654

$9.29

355

Female Housing, 2 Circuits

515175658

$16.49

358

Male Terminal Housing, 2 Circuits

515175665

$9.49

361

Male Terminal Housing, 6 Circuits

515175668

$16.99

366

Male Housing, 6 Circuits

515175673

$15.99

371

Male Wedge, 6 Circuits

515175678

$5.49

377

Fuse, 5 Amperes | CE

278000344

$3.39

383

FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175719

Unavailable

387

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

409

Plug

515175812

$2.29

410

Female Housing, 24 Circuits

515175801

$9.79

411

Retainer Block

515175802

$11.49

412

Wire Seal

515175803

$3.09

415

Female Terminal

515175806

$1.49

417

Female Terminal Housing, 8 Circuits

515175819

$7.79

481

Female Terminal Housing, 2 Circuits

415128500

$7.79

498

Female Housing

710000399

$16.99

645

Male Terminal

515176164

$7.29

721

Female Terminal Housing, 16 Circuits

515176340

$16.49

722

Female Terminal Housing, 26 Circuits

515176341

$31.99

723

Female Terminal Housing, 34 Circuits

515176342

$21.99

725

Seal

415128501

$1.89

726

Plug

515176345

$21.99

729

Female Terminal

515176348

$7.19

764

Clip

710000992

$4.39

804

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

515176523

Unavailable

827

Female Terminal

710001119

$5.49

831

Female Terminal

710001131

$9.09

883

Female Terminal

515176541

$4.69

930

Wire Seal

515176621

$7.69

956

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable
