Description

Price

1

Black Pilot Ski Ass'y 6.9 RH

505073056

$179.99

1

Black Pilot Ski Ass'y 6.9 LH

505073055

$179.99

2

Ski Bushing

505071781

$16.18

3

Retainer 17mm long

505071812

$5.95

4

Black, Handle

505070963

$35.99

5

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

6

Hex. Flange Elastic Nut M8

233281414

$1.47

7

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

8

Spacer

506133300

$23.99

9

Washer

732900049

$0.58

10

Hex. Flange Elastic Nut M10

233201414

$1.58

11

Ski Stopper

505071779

$18.78

12

Clear LH Ski Leg This part replaces 505073043.

505073011

$199.99

12

Clear RH Ski Leg

505073012

$249.99

13

Leg Bushing

505072690

$12.49

14

Spacer

505071999

$14.99

15

RH Lower Arm

505072373

Unavailable

15

LH LOWER ARM - Call your local BRP dealership

505072370

Unavailable

16

Bushing

505072208

$3.28

17

Sleeve

505072209

$17.84

18

Wear Plate

505072634

$6.29

19

Screw Hex. M10 X 70

250001024

$2.11

20

Not Available As Spare Parts

XXX

Unavailable

21

Upper Arm

505072375

$154.99

22

Bushing

505072250

$3.28

23

Sleeve

505072143

$9.00

24

Screw Hex. M10 X 60

250001023

$2.11

25

Screw Hex. M10 X 50

250001022

$1.69

26

Washer

503189564

$0.74

27

Washer

505072392

$4.76

28

Hex. Flange Elastic Nut M10

250100165

$0.85

29

O-Ring

505072448

$2.32

30

Stabilisator

505072602

$68.99

31

Bushing

505072064

$2.32

32

Stabilisator Lever

505072394

$18.73

33

Hex. Flange Screw M6 X 30

207663046

$1.69

34

Elastic Flange Nut M6 X 1.0

233261416

$2.11

35

Sway Bar Double Joint Link

505072204

$21.99

36

Hex. Flange Screw M6 X 30

207663046

$1.69

37

Elastic Flange Nut M6 X 1.0

233261416

$2.11

38

Front Shock

505073235

$248.99

39

Adjustment Cam

505073625

$12.99

40

YELLOW SPRING - Call your local BRP dealership | Summit Sport & SP

505072431

Unavailable

41

Spring Guide

503191872

$2.29

42

Spring Stopper

706200881

$12.99

43

Not Available As Spare Parts

XXX

Unavailable

44

Cap

706200785

$4.69

45

Hex. Screw M10 X 55

207005544

$2.22

46

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

47

Washer

503189564

$0.74

48

Hex. Flange Elastic Nut M10

233201414

$1.58

49

Ball Joint

505073636

$51.99

50

Washer

503189276

$3.28

51

Hex. Elastic Hex. Nut M12

250100089

$0.46

52

Flat Washer 12 mm

234021410

$0.72

53

Hex. Elastic Hex. Nut M12

250100089

$0.46

54

Upper Ball Joint

505072257

$17.58

55

Circlip

293370035

$2.64

56

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

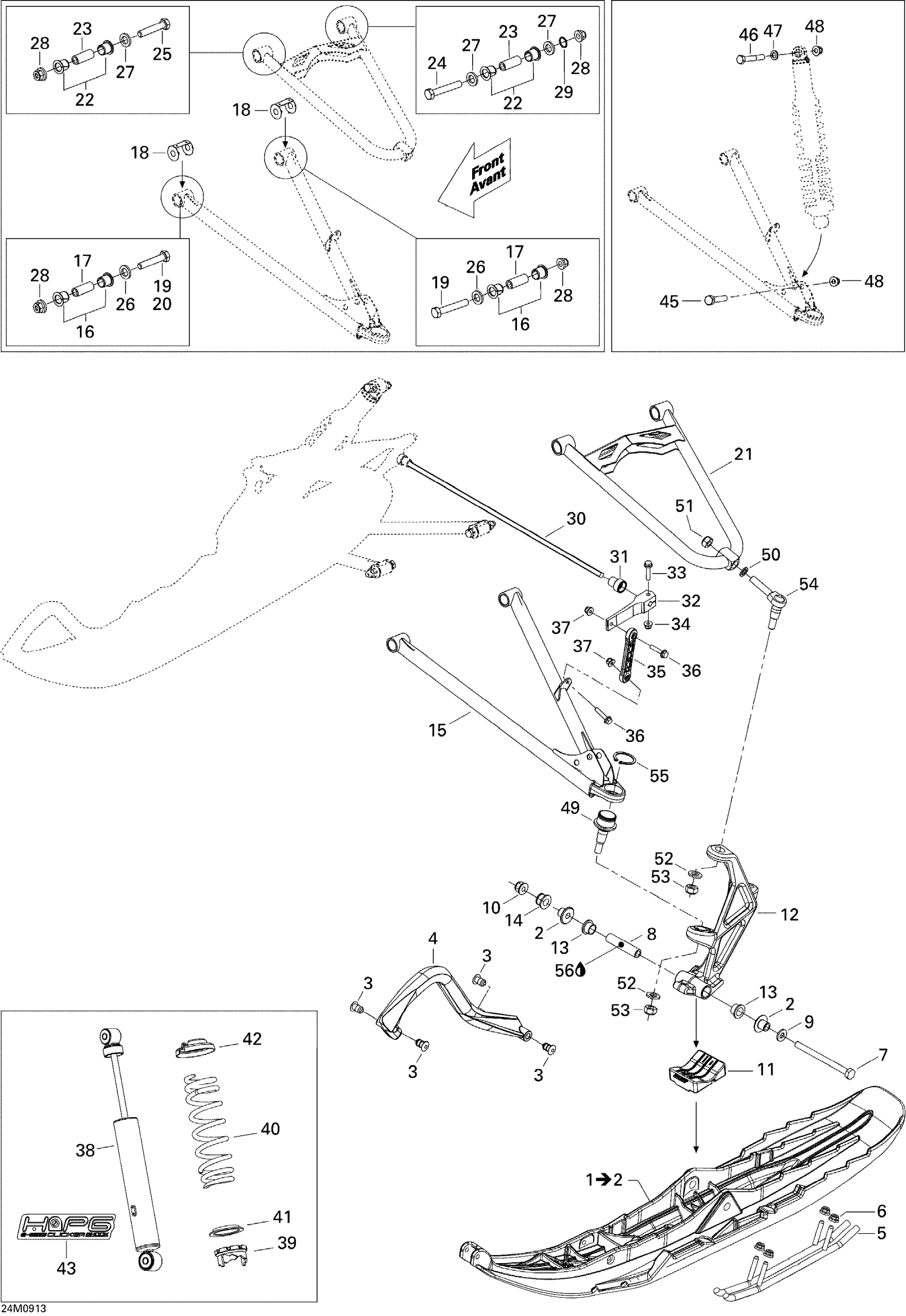

Ski-Doo Summit Everest 600 H.O. E-TEC, 2009 07- Front Suspension And Ski 600HO Diagram

Black Pilot Ski Ass'y 6.9 RH

Black Pilot Ski Ass'y 6.9 LH

Ski Bushing

Retainer 17mm long

Black, Handle

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

Hex. Flange Elastic Nut M8

Hex. Screw M10 X 130 | Model-RT STD

Spacer

Washer

Hex. Flange Elastic Nut M10

Ski Stopper

Clear LH Ski Leg This part replaces 505073043.

Clear RH Ski Leg

Leg Bushing

Spacer

RH Lower Arm

LH LOWER ARM - Call your local BRP dealership

Bushing

Sleeve

Wear Plate

Screw Hex. M10 X 70

Not Available As Spare Parts

Upper Arm

Bushing

Sleeve

Screw Hex. M10 X 60

Screw Hex. M10 X 50

Washer

Washer

Hex. Flange Elastic Nut M10

O-Ring

Stabilisator

Bushing

Stabilisator Lever

Hex. Flange Screw M6 X 30

Elastic Flange Nut M6 X 1.0

Sway Bar Double Joint Link

Hex. Flange Screw M6 X 30

Elastic Flange Nut M6 X 1.0

Front Shock

Adjustment Cam

YELLOW SPRING - Call your local BRP dealership | Summit Sport & SP

Spring Guide

Spring Stopper

Not Available As Spare Parts

Cap

Hex. Screw M10 X 55

Hex. Screw M10 X 1.5 X 65

Washer

Hex. Flange Elastic Nut M10

Ball Joint

Washer

Hex. Elastic Hex. Nut M12

Flat Washer 12 mm

Hex. Elastic Hex. Nut M12

Upper Ball Joint

Circlip

SYNTHETIC GREASE, 400 G - Call your local BRP dealership
