Description

Price

1

Chaincase

504153181

$349.99

1a

Flat Washer 6 mm

234062410

$0.77

1b

Hex. Flange Screw M6 X 20

207662034

$2.11

1c

Flange Elastic Nut M6

233261434

$4.44

2

Oil Seal

293200158

$14.22

3

Ball Bearing

293350115

$12.11

4

Circlip

504152576

$9.99

5

Shim

504152628

$10.99

6

Sprocket, 19 Teeth

504152031

$109.99

7

Spring Washer M10

504152784

$7.65

8

Hex. Screw M10 X 25

207102544

$1.37

9

Oil Seal

293200159

$16.25

10

Ball Bearing

293350059

$30.99

11

Circlip

504152582

$9.99

12

Kit Sprocket This part replaces 504152581.

861805539

$159.99

13

Circlip

504152572

$6.95

14

O-Ring

293300122

$2.11

15

Magnetic Cap

504152619

$23.49

16

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

17

Drive Chain, 104 Links

504152629

$179.99

18

Hex. Nut M10 X 1.5

232006414

$1.37

19

Adjustment Screw

504152602

$12.49

20

Magnetic Plug 1/8 - 27 NPTF

504152636

$11.49

21

Bonded Washer

250200100

$2.11

22

Tensioner chain

504153429

$15.99

23

Slider Chain

504152739

$65.99

24

Tensioner Axle

504152841

$16.34

25

Circlip

504152282

$3.17

26

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153147

$349.99

26a

Rotation Sensor

504152896

$37.99

27

Tight Seal

293300130

$7.51

28

Hex. Flange Screw M6 X 1.0 X 30

250000360

$2.11

29

Cap

504152860

$20.49

30

Male Connector

414580700

$4.12

31

Polyurethane Hose 10000Mm Long

219704410

$56.99

32

Bearing Housing

507032437

$19.99

33

Ball Bearing

293350059

$30.99

34

O-Ring

293300122

$2.11

35

Magnetic Cap

504152619

$23.49

36

Circlip

504152572

$6.95

37

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

38

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$17.53

39

Clinch Stud, M8 X 25

250300028

$4.44

40

Hex. Flange Elastic Nut M8

233281414

$1.47

41

Drive Axle Ass'y

504154054

$529.99

41a

Not Available As Spare Part - Friction Washer

Unavailable

41b

Not Available As Spare Part - Friction Washer

Unavailable

42

Chenille 16X146*Track 16X146X2.25 This part replaces 504153014.

C9064M

$1.00

42a

Track Guide | Track Width 16''

415129528

$3.29

42b

Cleat

504152651

$9.69

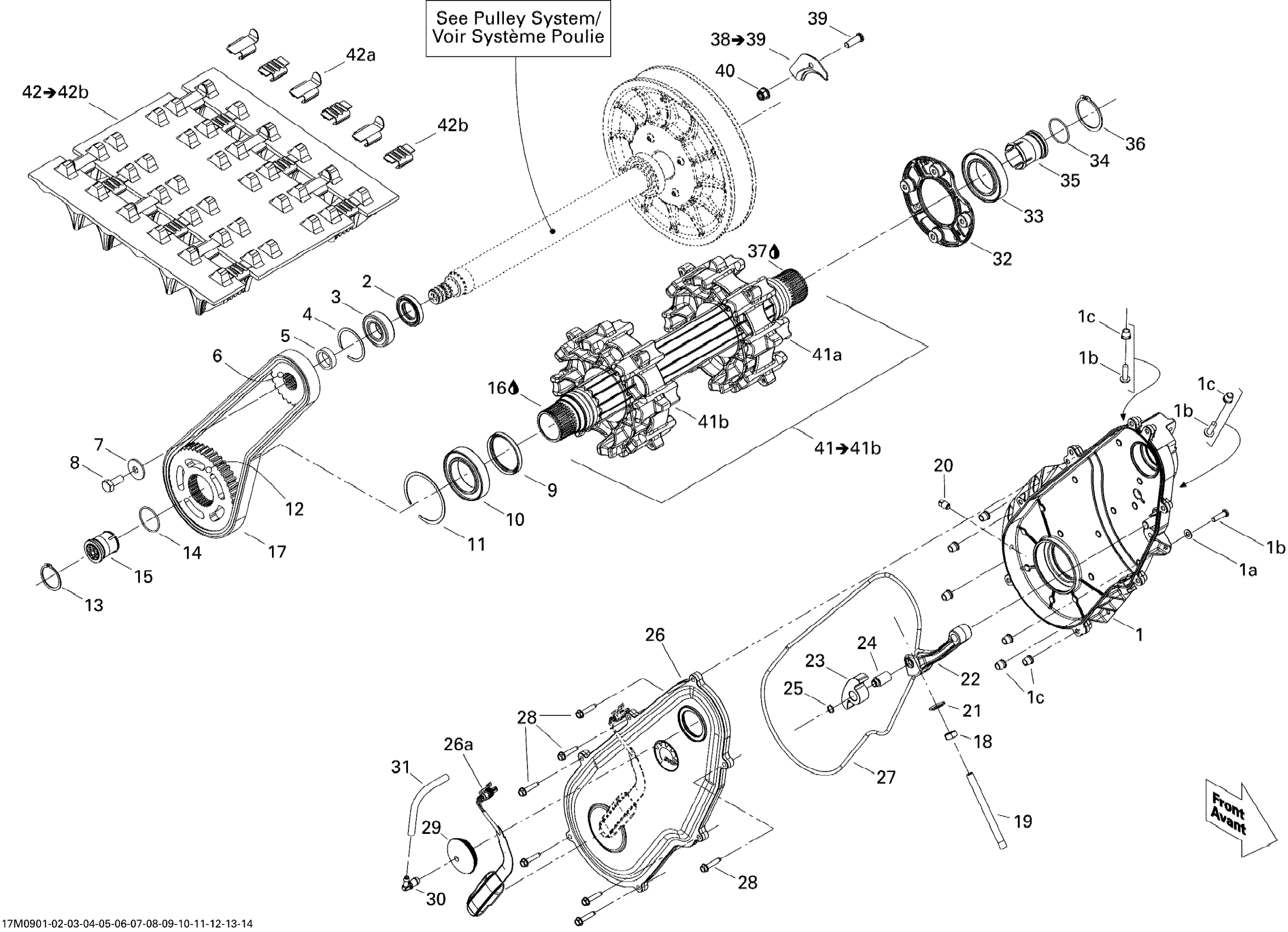

Ski-Doo Summit Everest 600 H.O. E-TEC, 2009 05- Drive System 600HO Diagram

Chaincase

Flat Washer 6 mm

Hex. Flange Screw M6 X 20

Flange Elastic Nut M6

Oil Seal

Ball Bearing

Circlip

Shim

Sprocket, 19 Teeth

Spring Washer M10

Hex. Screw M10 X 25

Oil Seal

Ball Bearing

Circlip

Kit Sprocket This part replaces 504152581.

Circlip

O-Ring

Magnetic Cap

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

Drive Chain, 104 Links

Hex. Nut M10 X 1.5

Adjustment Screw

Magnetic Plug 1/8 - 27 NPTF

Bonded Washer

Tensioner chain

Slider Chain

Tensioner Axle

Circlip

Chaincase Cover Ass'y | Includes 1700 to 1700c

Rotation Sensor

Tight Seal

Hex. Flange Screw M6 X 1.0 X 30

Cap

Male Connector

Polyurethane Hose 10000Mm Long

Bearing Housing

Ball Bearing

O-Ring

Magnetic Cap

Circlip

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

Bearing Housing Ass'y | Includes 2500 to 2500a

Clinch Stud, M8 X 25

Hex. Flange Elastic Nut M8

Drive Axle Ass'y

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Chenille 16X146*Track 16X146X2.25 This part replaces 504153014.

Track Guide | Track Width 16''

Cleat
