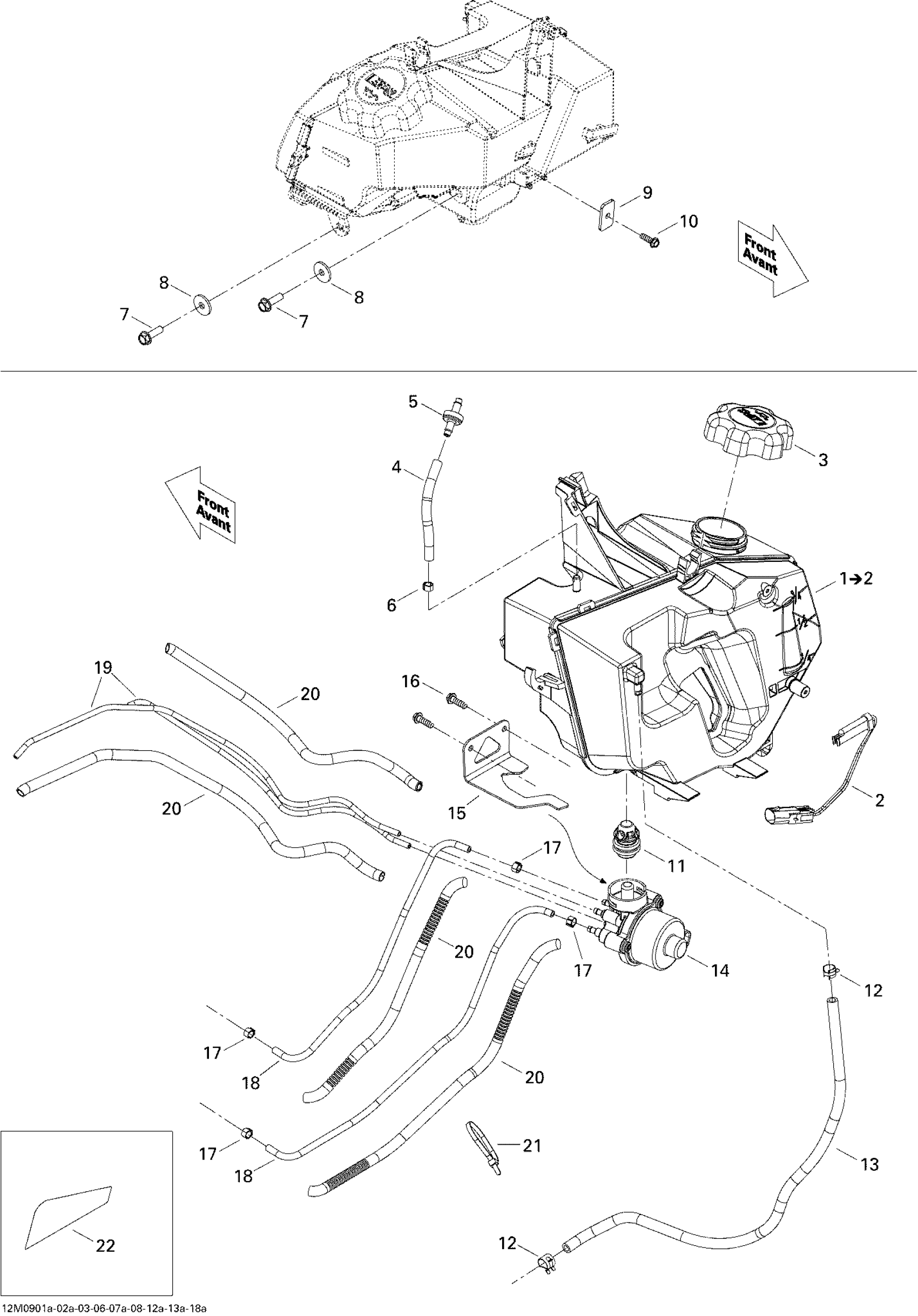

Ski-Doo Summit Everest 600 H.O. E-TEC, 2009 02- Oil System 600 HO Diagram

#

Description
Price

1

Oil Tank | Includes 1 to 2

519000235

Unavailable

1

Oil Tank | Includes 1 to 2

519000235

Unavailable

2

Oil Level Sensor

515176508

$31.99

2

Oil Level Sensor

515176508

$31.99

3

CAP - Call your local BRP dealership

519000194

Unavailable

3

CAP - Call your local BRP dealership

519000194

Unavailable

4

Polyurethane Hose 10000Mm Long

219704410

$56.99

4

Polyurethane Hose 10000Mm Long

219704410

$56.99

5

Check Valve

275500398

$10.99

5

Check Valve

275500398

$10.99

6

Spring Clamp

414554800

$0.88

6

Spring Clamp

414554800

$0.88

7

Hex. Flange Screw M6 X 20, Scotch Grip

250000331

$2.11

7

Hex. Flange Screw M6 X 20, Scotch Grip

250000331

$2.11

8

Flat Washer

224061201

$1.37

8

Flat Washer

224061201

$1.37

9

Bracket

519000179

$10.49

9

Bracket

519000179

$10.49

10

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

10

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

11

GROMMET - Call your local BRP dealership

519000229

Unavailable

11

GROMMET - Call your local BRP dealership

519000229

Unavailable

12

Spring Clamp

414554800

$0.88

12

Spring Clamp

414554800

$0.88

13

Polyurethane Hose 10000Mm Long

219704410

$56.99

13

Polyurethane Hose 10000Mm Long

219704410

$56.99

14

Oil Pump

519000225

Unavailable

14

Oil Pump

519000225

Unavailable

15

OIL BRACKET - Call your local BRP dealership

519000234

Unavailable

15

OIL BRACKET - Call your local BRP dealership

519000234

Unavailable

16

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

16

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

17

Oetiker Clamp

293650100

$3.38

17

Oetiker Clamp

293650100

$3.38

18

HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership

219704429

Unavailable

18

HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership

219704429

Unavailable

19

HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership

219704430

Unavailable

19

HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership

219704430

Unavailable

20

Tubing 6 Mm 3000Mm Long

219704425

$13.75

20

Tubing 6 Mm 3000Mm Long

219704425

$13.75

21

Tie Wrap 142 mm

293750002

$1.25

21

Tie Wrap 142 mm

293750002

$1.25

22

PROTECT DECAL - Call your local BRP dealership

516003861

Unavailable

22

PROTECT DECAL - Call your local BRP dealership

516003861

Unavailable
