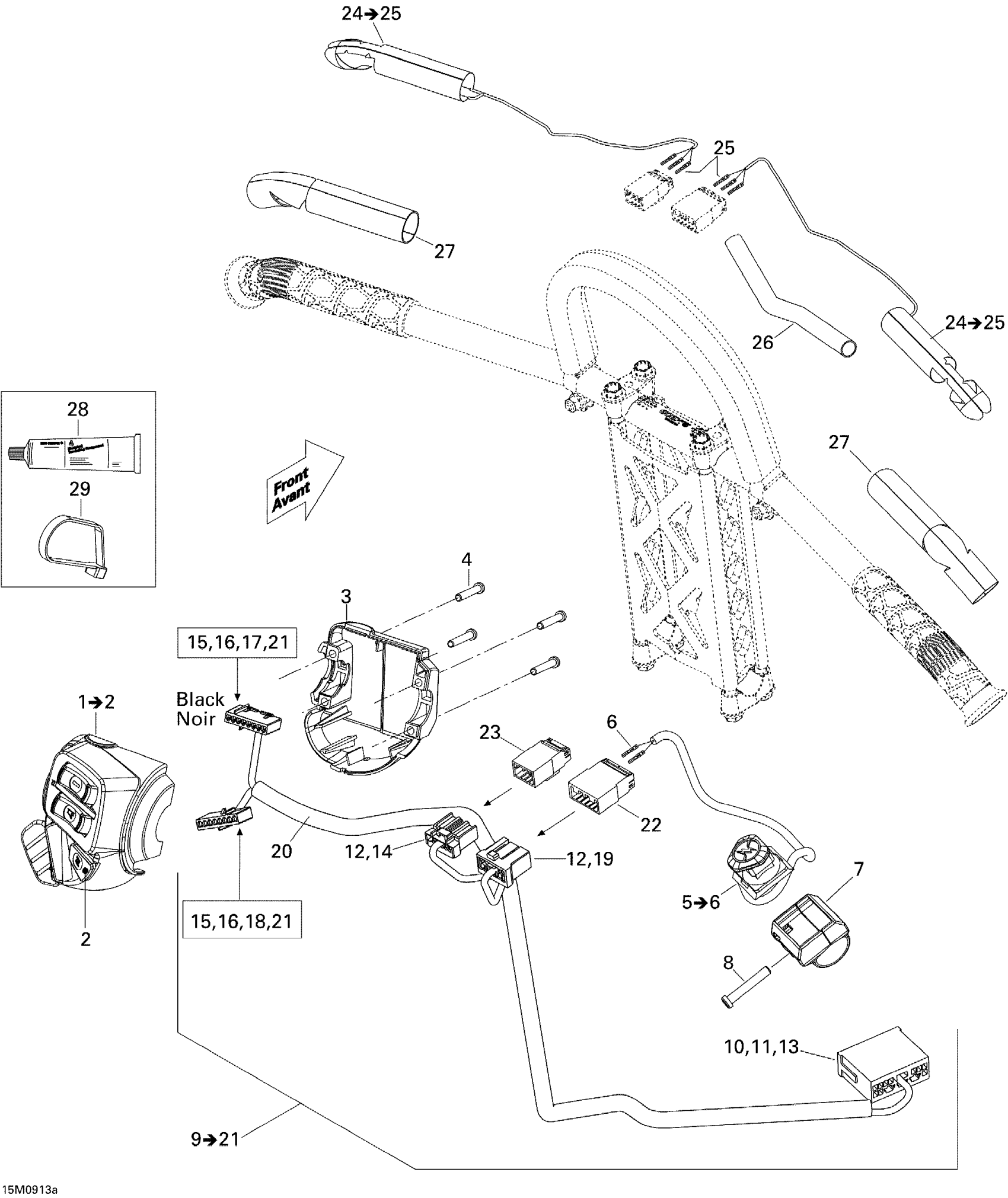

Ski-Doo Summit Everest 500SS, 2009 Steering Wiring Harness 500SS, 800R Diagram

#

Description
Price

1

LH Housing

515177022

$207.43

2

Start/RER Button

515176088

$17.88

3

Switch Housing Plate

515175926

$17.13

4

Torx Screw #8-18

250000263

$0.99

5

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

6

Male Terminal

515175232

$1.45

7

Kill Switch Support

515176825

$8.34

8

Torx Screw #8-18

250000263

$0.99

9

Steering Wiring Harness Ass'y | Includes 3200 to 3200n

515176995

$103.70

10

Male Terminal

515175232

$1.45

11

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

12

Female Terminal

515175231

$4.00

13

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

14

Female Terminal Housing, 6 Circuits

515175543

$8.31

15

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

16

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

Unavailable

17

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

Unavailable

18

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

19

Female Terminal Housing, 8 Circuits

515175819

$7.24

20

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

21

Female Terminal

515175941

$2.40

22

Male Terminal Housing, 8 Circuits

515175817

$8.31

23

Male Terminal Housing, 6 Circuits

515175662

$8.31

24

Heating Element 32W

506152371

Unavailable

25

Male Terminal

515175232

$1.45

26

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

27

Insulant

506152360

$5.72

28

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

29

Tie Wrap 94 mm | 4X4

293750001

$0.96

29

Tie Wrap 142 mm

293750002

$1.01

29

Tie-Rap 180 mm

414115200

$0.10

29

Tie Wrap 368 mm

293750008

$0.97
