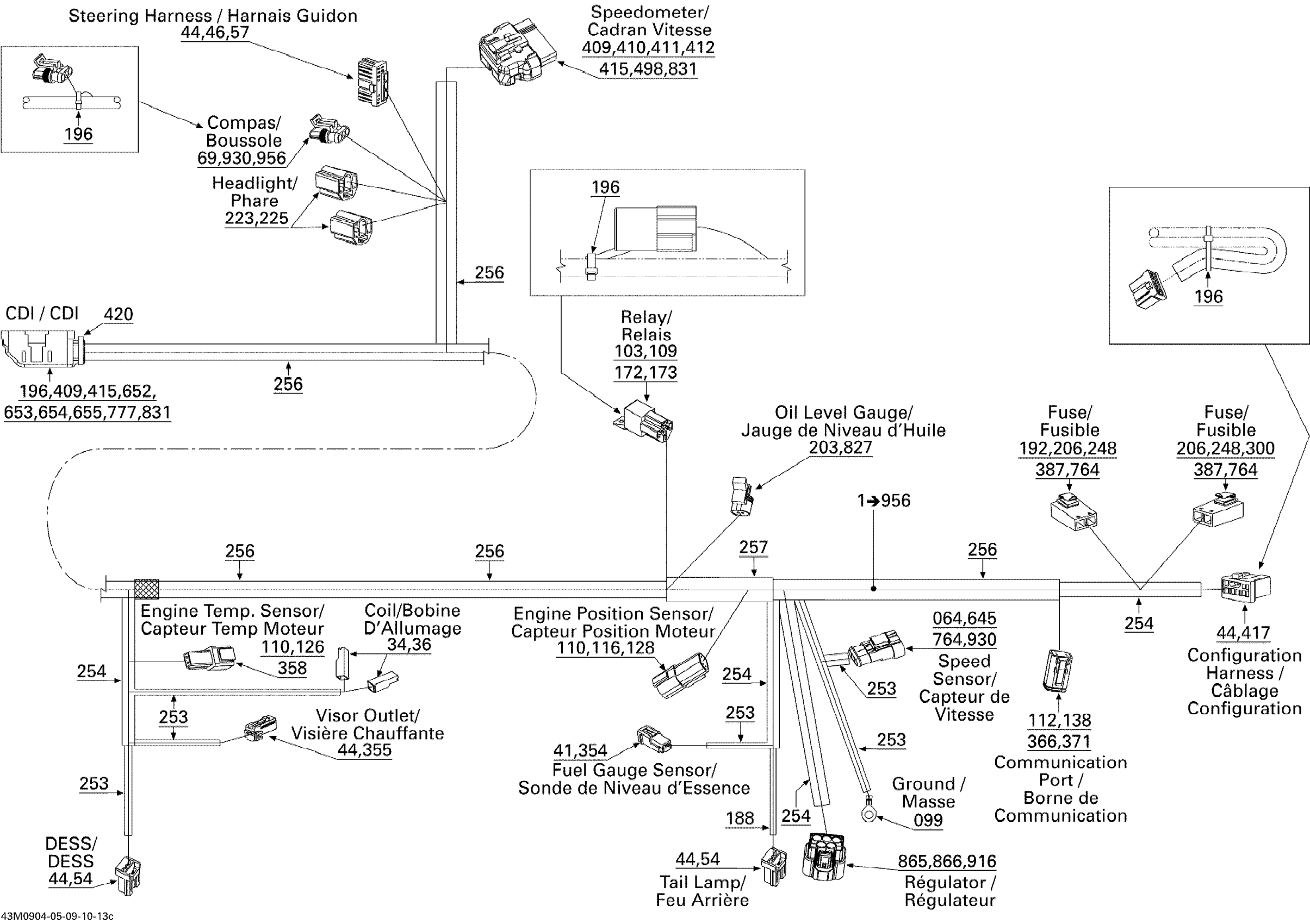

Ski-Doo Summit Everest 500SS, 2009 Electrical Harness 500SS Diagram

#

Description
Price

1

WIRING HARNESS MAIN - Call your local BRP dealership | 600, Includes 1 to 258

515176834

Unavailable

34

Female Terminal

409010100

$5.69

36

Female Terminal Housing, 1 Circuit

409010400

$7.79

41

Male Terminal

515175232

$1.59

44

Female Terminal

515175231

$4.49

46

Female Terminal

515175282

$7.99

54

Female Housing, 3 Circuits

515175495

$16.49

57

Female Terminal Housing, 13 Circuits

515175350

$14.49

64

Housing

710000568

$11.49

69

Female Housing, 3 Circuits

409209600

$36.99

99

Open Barrel

278000992

$2.29

103

Relay | DS 650 X

710010053

$24.49

109

Female Housing, 5 Circuits

409209900

$9.79

110

Male Terminal

278000631

$4.49

112

Female Terminal

278000632

$2.19

116

Female Housing, 4 Circuits

278000635

$16.99

126

Male Lock, 2 Circuits

409207500

$3.29

128

Female Wedge, 4 Circuits

278000636

$4.49

138

Sealing Cap

293000052

$3.29

172

Female Terminal

561503100

$2.49

173

Female Terminal

561503100

$2.49

188

Tubing 12 mm

409902000

Unavailable

192

Fuse, 20 Amperes

409003900

$3.39

196

Tie Wrap 142 mm

293750002

$1.49

203

Male Connector, 2 Circuits

278001113

$17.49

206

Female Terminal

409004200

$4.69

223

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

225

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

248

Fuse Holder

409004000

$8.29

253

Tubing 6 Mm 3000Mm Long

219704425

$13.99

254

Was 409901700 Tubing (9 mm)

219704399

$86.99

256

Tubing 16 Mm 1000Mm Long

219704408

$7.69

257

Was 409901600 Tubing 19mm

219704398

$97.99

300

Fuse, 15 Amperes

278000343

$3.39

354

Male Terminal Housing, 2 Circuits

515175654

$9.29

358

Male Terminal Housing, 2 Circuits

515175665

$9.49

366

Male Housing, 6 Circuits

515175673

$15.99

371

Male Wedge, 6 Circuits

515175678

$5.49

387

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

409

Plug

515175812

$2.29

410

Female Housing, 24 Circuits

515175801

$9.79

411

Retainer Block

515175802

$11.49

412

Wire Seal

515175803

$3.09

415

Female Terminal

515175806

$1.49

417

Female Terminal Housing, 8 Circuits

515175819

$7.79

420

Tie-Rap 180 mm

414115200

$1.49

498

Female Housing

710000399

$16.99

645

Male Terminal

515176164

$7.29

652

Female Housing

515176221

$16.49

653

Wire Seal

515176222

$17.49

654

Female Terminal Housing, 36 Circuits

515176223

$15.49

655

Terminal Support

515176224

$16.49

764

Clip

710000992

$4.39

777

Protection Cap

515176485

$22.49

827

Female Terminal

710001119

$5.49

831

Female Terminal

710001131

$9.09

865

Connector

515176530

$31.99

866

Terminal

515176531

$10.99

916

Seal

515176594

$7.99

930

Wire Seal

515176621

$7.69

956

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable
