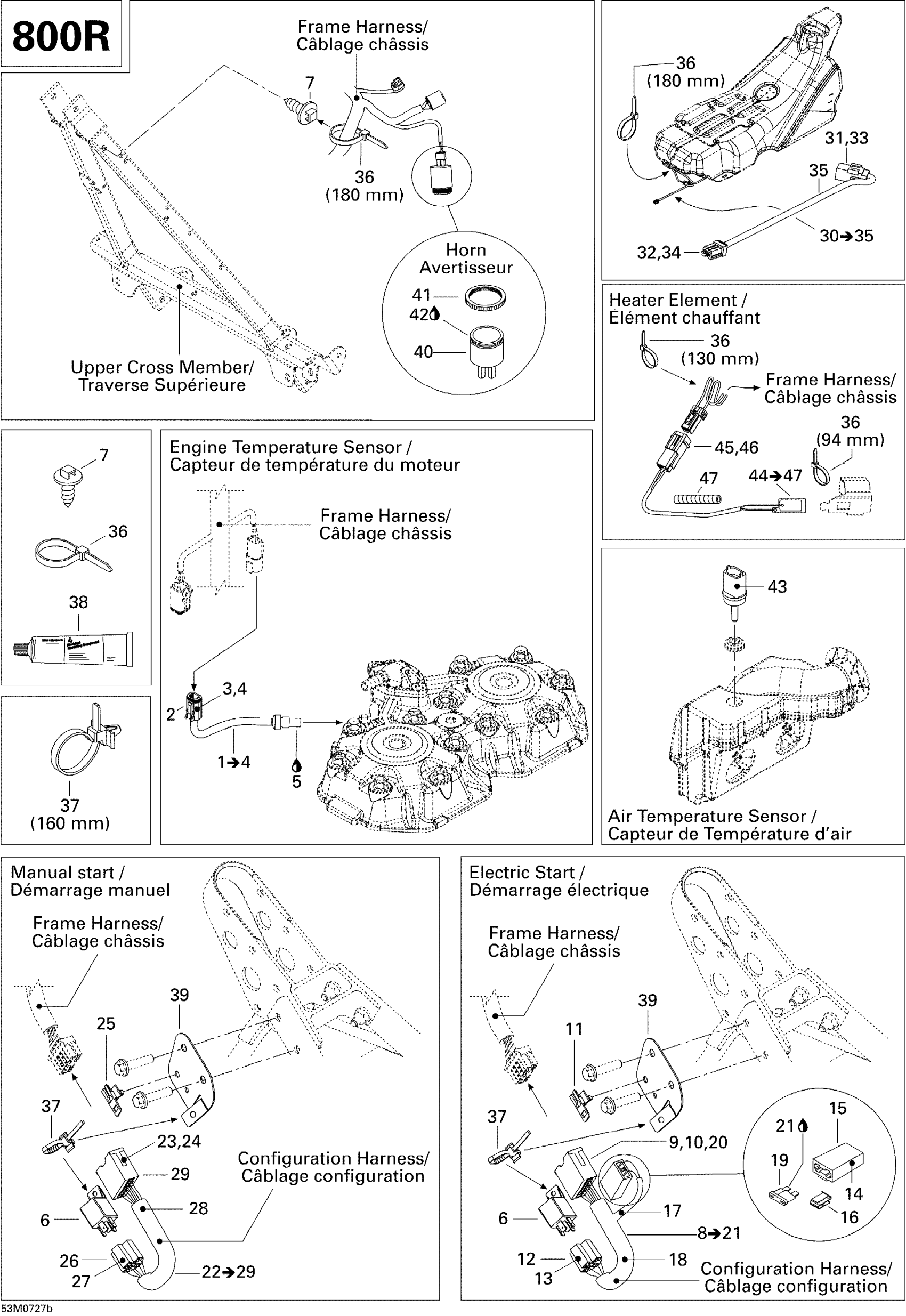

Ski-Doo Summit Adrenaline 800R, 2007 Electrical Accessories 2, 800R Diagram

#

Description
Price

1

Temperature Sensor This part replaces 515176043.

515177835

$91.76

2

Male Connector, 4 Circuits | CE

278000739

$17.13

3

Female Terminal

278000632

$1.94

4

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

5

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

6

Relay | DS 650 X

710010053

Unavailable

7

Mount Dart

293730040

$0.99

8

Configuration Harness Ass'y | Includes 13 to 27

515175721

$61.16

9

Male Terminal

515175232

$1.45

10

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

11

Housing Support

515175283

$8.18

12

Female Housing, 5 Circuits

409209900

$8.72

13

Female Terminal

561503100

Unavailable

14

Female Terminal

409011600

$4.96

15

Fuse Holder

409004000

$6.79

16

CLIP - Call your local BRP dealership

409014200

Unavailable

17

Tubing 6 Mm 3000Mm Long

219704425

$12.75

18

Was 409901800 Tubing (13 mm)

219704400

$10.79

19

Fuse, 5 Amperes | CE

278000344

$3.12

20

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

21

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

22

CONFIGURATION HARNESS - Call your local BRP dealership | Manual Start, Includes 22 to 29

515176175

Unavailable

23

Male Terminal

515175232

$1.45

24

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

25

Housing Support

515175283

$8.18

26

Female Housing, 5 Circuits

409209900

$8.72

27

Female Terminal

561503100

Unavailable

28

Was 409901800 Tubing (13 mm)

219704400

$10.79

29

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

30

TAIL LIGHT HARNESS - Call your local BRP dealership | Includes 2 to 7

515176380

Unavailable

31

Male Terminal

515175232

$1.45

32

Female Terminal

515175231

$4.00

33

Male Housing, 3 Circuits

515175494

$14.90

34

Female Housing, 3 Circuits

515175495

$14.90

35

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$18.63

36

Tie-Rap 180 mm

414115200

$0.10

36

Tie Wrap 94 mm | 4X4

293750001

$0.96

36

Tie Wrap 142 mm

293750002

$1.01

37

Tie-Rap 173 mm

293750009

$0.97

38

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

39

HARNESS SUPPORT - Call your local BRP dealership

515176020

Unavailable

40

HORN - Call your local BRP dealership

515176035

Unavailable

41

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

42

Silicone Sealant 51388, 300 ml

296000309

$36.99

43

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

44

Heater Element Ass'y

515176473

Unavailable

45

Male Terminal Housing, 2 Circuits

515175654

$7.25

46

Male Terminal

515175232

$1.45

47

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$18.63
