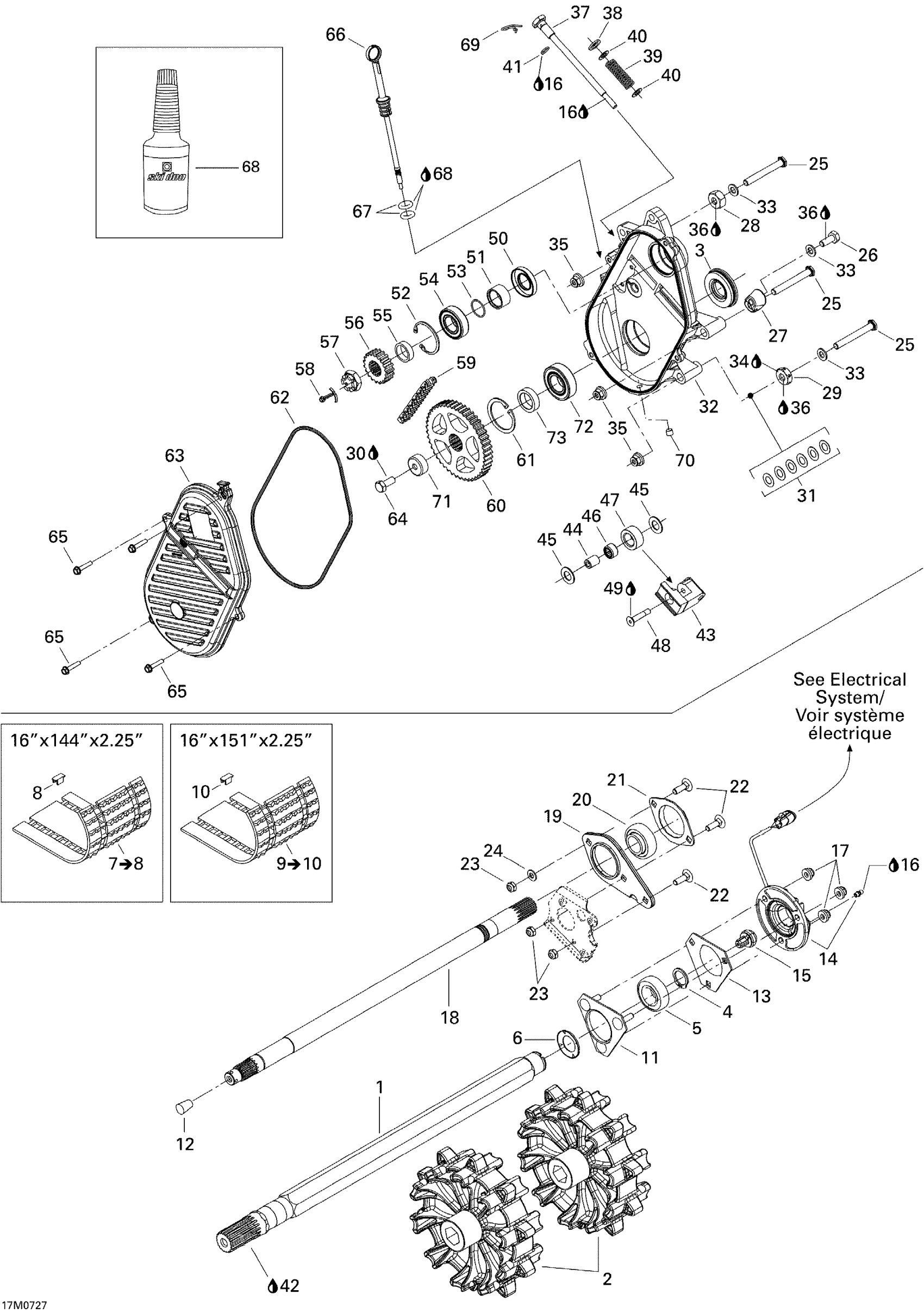

Ski-Doo Summit Adrenaline 800R, 2007 05- Drive System 800R Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

501027400

Unavailable

2

DOUBLE SPROCKET, 9 TEETH - Call your local BRP dealership

504152503

Unavailable

3

Oil Seal Ass'y

504151918

$20.49

4

CIRCLIP - Call your local BRP dealership

371910200

$2.09

5

Ball Bearing

293350060

$38.49

6

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

7

Track 16" X 144" X 2.25" Ass'y | Includes 8 to 9

504152730

Unavailable

8

Track Guide | Track Width 16''

415129528

$3.29

9

Track 16" X 151" X 2.25. Ass'y | Includes 9 to 10

504152731

Unavailable

10

Track Guide | Track Width 16''

415129528

$3.29

11

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

12

CORK - Call your local BRP dealership

414784800

Unavailable

13

FLANGE - Call your local BRP dealership

501025000

Unavailable

14

Rotation Sensor

504152345

$71.99

15

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

16

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18

COUNTER SHAFT - Call your local BRP dealership

504152018

Unavailable

19

SPACER - Call your local BRP dealership

504151968

Unavailable

20

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

21

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

22

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

23

Hex. Elastic Stop Nut M8

232581414

$0.56

24

Flat Washer 8 mm

234081410

$0.83

25

HEX. SCREW M10 X 80 - Call your local BRP dealership

250000151

Unavailable

26

Hex. Screw M10 X 25

207102544

$1.37

27

Spacer

504152252

Unavailable

28

Spacer

504083800

Unavailable

29

SPACER - Call your local BRP dealership

504152237

Unavailable

30

Loctite 271, 10 ml

293800005

$26.99

31

WASHER - Call your local BRP dealership

504073700

Unavailable

32

CHAINCASE - Call your local BRP dealership | 550F X

504152482

Unavailable

33

Washer

503175800

$3.28

34

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

35

Hex. Flange Elastic Nut M10

233201414

$1.58

36

Loctite 243, 10 ml

293800060

$21.49

37

Adjustment Screw

504151946

Unavailable

38

Washer | 7415/7416. 7417/7418.

503189148

$2.85

39

SPRING - Call your local BRP dealership

504151945

Unavailable

40

Washer

503189564

$0.74

41

O-RING - Call your local BRP dealership

504151954

Unavailable

42

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

43

Chain Tensioner

504151940

Unavailable

44

SPACER - Call your local BRP dealership

504080200

Unavailable

45

WASHER - Call your local BRP dealership

504080300

Unavailable

46

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

47

ROLLER - Call your local BRP dealership

414531300

Unavailable

48

SCREW - Call your local BRP dealership

732601144

Unavailable

49

Loctite 271, 10 ml

293800005

$26.99

50

Oil Seal

293200158

$14.22

51

SPACER - Call your local BRP dealership

507031500

Unavailable

52

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

53

O-RING - Call your local BRP dealership

414876700

Unavailable

54

Ball Bearing

293350115

$12.11

55

SHIM - Call your local BRP dealership

504152587

Unavailable

56

SPROCKET 21 TEETH - Call your local BRP dealership | 800R

504152505

Unavailable

57

HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership

250000012

Unavailable

58

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

59

Drive Chain Large, 74 Links | 800R

504151932

Unavailable

60

45 Tooth Sprocket | Europe

504152238

Unavailable

61

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

62

O-Ring

415046400

$24.99

63

CHAINCASE COVER - Call your local BRP dealership

504152471

Unavailable

64

Hex. Screw M10 X 25

207102544

$1.37

65

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

66

FILLER CAP ASS'Y - Call your local BRP dealership

504151703

Unavailable

67

O-RING - Call your local BRP dealership

414969400

Unavailable

68

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

69

Hair Pin

414575600

$1.89

70

Plug 1/8”-27

504151921

$4.19

71

CAP - Call your local BRP dealership

504152460

Unavailable

72

Ball Bearing

504152005

$46.49

73

SHIM - Call your local BRP dealership

504152649

Unavailable
