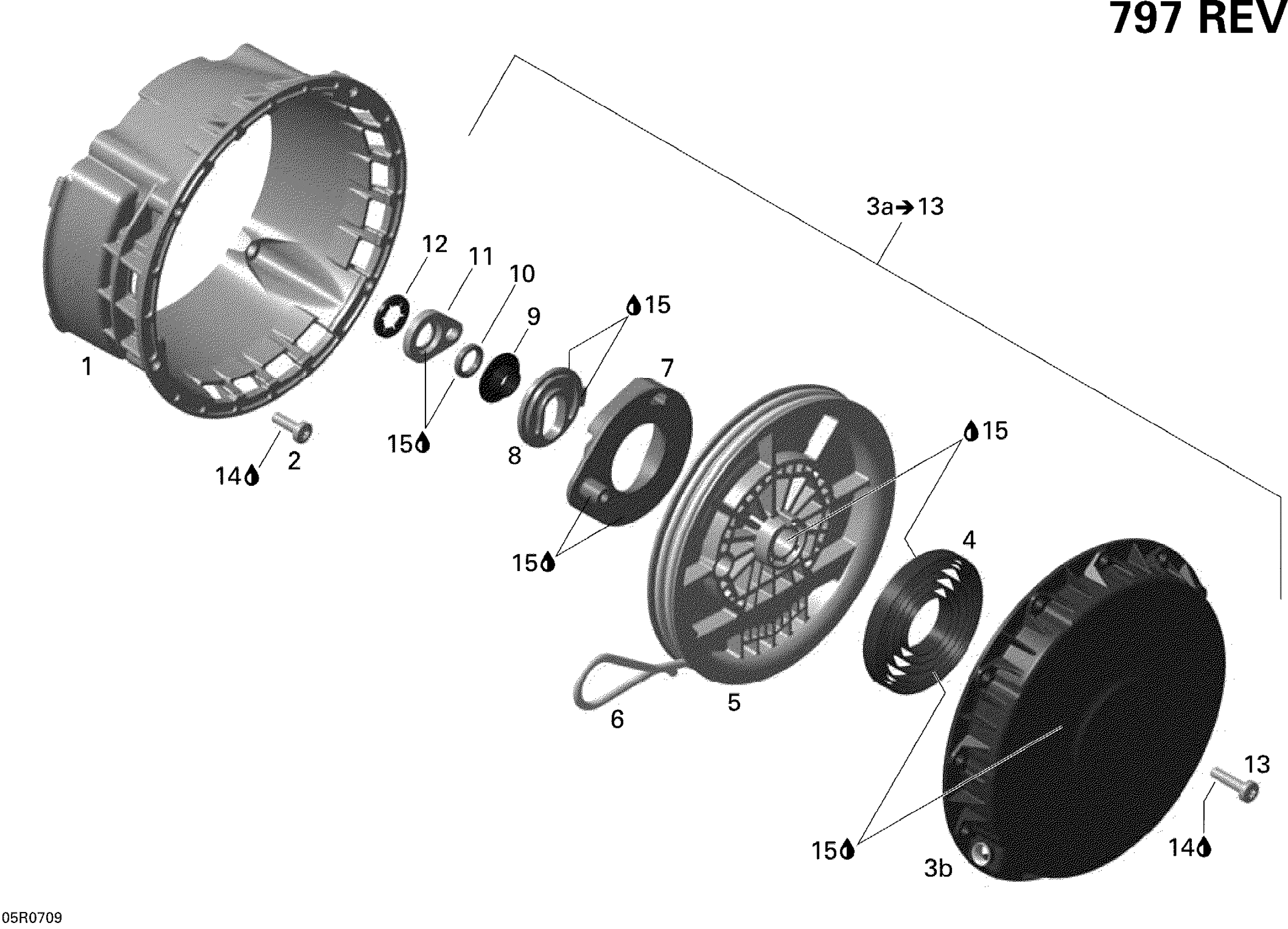

Ski-Doo Summit Adrenaline 800R, 2007 Rewind Starter Diagram

Description

Price

Flange Connector

420812941

$73.05

Torx Flange Screw M6 X 20

420441386

$2.06

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

$166.12

Starter Housing

420910256

$89.20

Rewind Spring

420939115

$25.32

Rope Sheave

420852288

$39.97

Was 412500100 Rope-Starter

219704403

$10.15

Pawl

420852633

$32.28

Pawl Lock | Includes no. 8-9

420852640

$5.51

Stage Sleeve

420847926

$14.54

O-Ring

420250407

$1.85

Lock Ring

420852520

$8.34

Locking Element

420845560

$2.03

Plastite Screw

420940431

$6.26

Loctite 243, 10 ml

293800060

$20.77

Molykote PG 54, 10 g

420899763

$18.82
