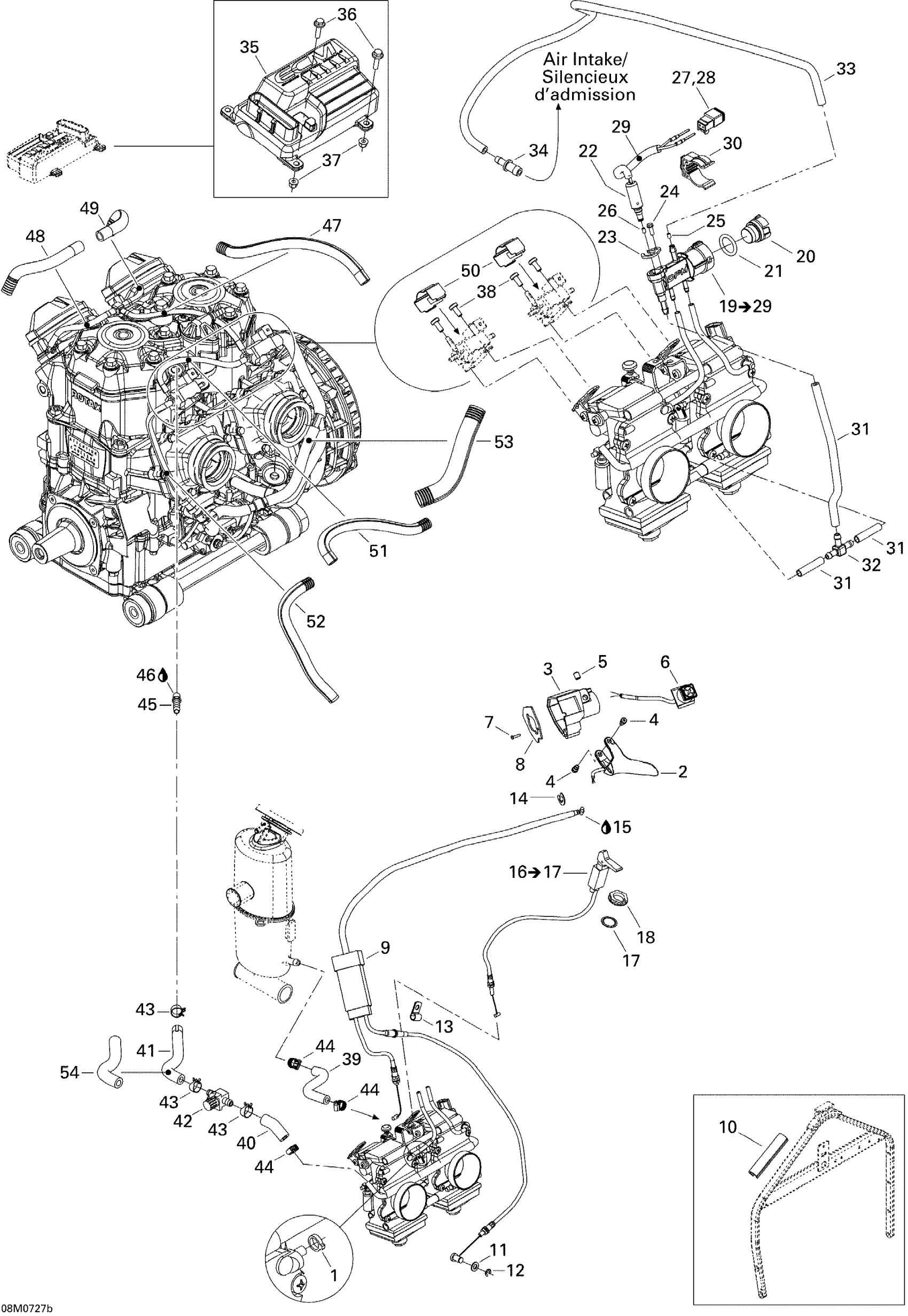

Ski-Doo Summit Adrenaline 800R, 2007 01- Engine 2, 800R Diagram

#

Description
Price

1

Tie Wrap 94 mm | 4X4

293750001

$1.03

2

Throttle Handle Ass'y | Includes 13 to 14

512060484

$124.99

3

Throttle Housing

512060603

$12.49

4

Flange Screw

732601143

$4.12

5

Socket Set Screw M8 X 10

414440800

$4.12

6

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

7

TORX SCREW M2.9 X 12 - Call your local BRP dealership

250000265

Unavailable

8

Plate

512060390

$10.33

9

THROTTLE CABLE - Call your local BRP dealership

512060088

Unavailable

10

PROTECTOR - Call your local BRP dealership

512059750

Unavailable

11

Flat Washer 8 mm, Nylon

234081100

$1.39

12

Circlip

414753500

$0.71

13

TIE CLAMP - Call your local BRP dealership

293750042

Unavailable

14

Circlip

414274500

$0.90

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

16

CHOKE CABLE - Call your local BRP dealership | Includes 47 to 48

512059266

Unavailable

17

Lock Washer, Interior Teeth

394103300

Unavailable

18

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

19

PRESSURE MANIFOLD ASS'Y - Call your local BRP dealership

512060002

Unavailable

20

CAP - Call your local BRP dealership

270600009

Unavailable

21

O-RING - Call your local BRP dealership

293300042

Unavailable

22

PRESSURE MANIFOLD HARNESS - Call your local BRP dealership

515175701

Unavailable

23

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

24

Screw K40 X 10

241140060

$1.48

25

Not Available As Spare Part - Friction Washer

Unavailable

26

STARTER JET - Call your local BRP dealership

404161825

Unavailable

27

Female Terminal Housing, 2 Circuits

515175670

$8.39

28

Female Lock, 2 Circuits

515175675

$4.55

29

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

30

SUPPORT - Call your local BRP dealership

512058919

Unavailable

31

Polyurethane Hose 10000Mm Long

219704410

$56.99

32

T-FITTING - Call your local BRP dealership | Engine 800R

414729300

Unavailable

33

Polyurethane Hose 10000Mm Long

219704410

$56.99

34

Straight Fitting

293710035

$8.89

35

CALIBRATED MODULE - Call your local BRP dealership

512060226

Unavailable

36

Hex.Flange Screw M5 X 20

207652044

$1.90

37

Hex. Flange Elastic Nut M5

233251414

$1.04

38

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

39

FORMED HOSE - Call your local BRP dealership

509000171

Unavailable

40

Was 509000407 Hose 8 mm

219704420

$50.99

41

FORMED HOSE - Call your local BRP dealership

512060185

Unavailable

42

Valve 5/16” | Grand Touring 500.

512059324

$44.99

43

Spring Clamp

414655700

$0.72

44

Tridon Gear Clamp

293650170

$1.99

45

Male Connector 1/8"-27 NPT

512060196

$10.33

46

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

47

Was 409901700 Tubing (9 mm)

219704399

$84.99

48

Was 409901700 Tubing (9 mm)

219704399

$84.99

49

Was 409901700 Tubing (9 mm)

219704399

$84.99

50

Heating Element Bracket

512059809

Unavailable

51

Was 409901700 Tubing (9 mm)

219704399

$84.99

52

Was 409901700 Tubing (9 mm)

219704399

$84.99

53

Was 409901800 Tubing (13 mm)

219704400

$14.49

54

Tubing 16 Mm 1000Mm Long

219704408

$7.49
