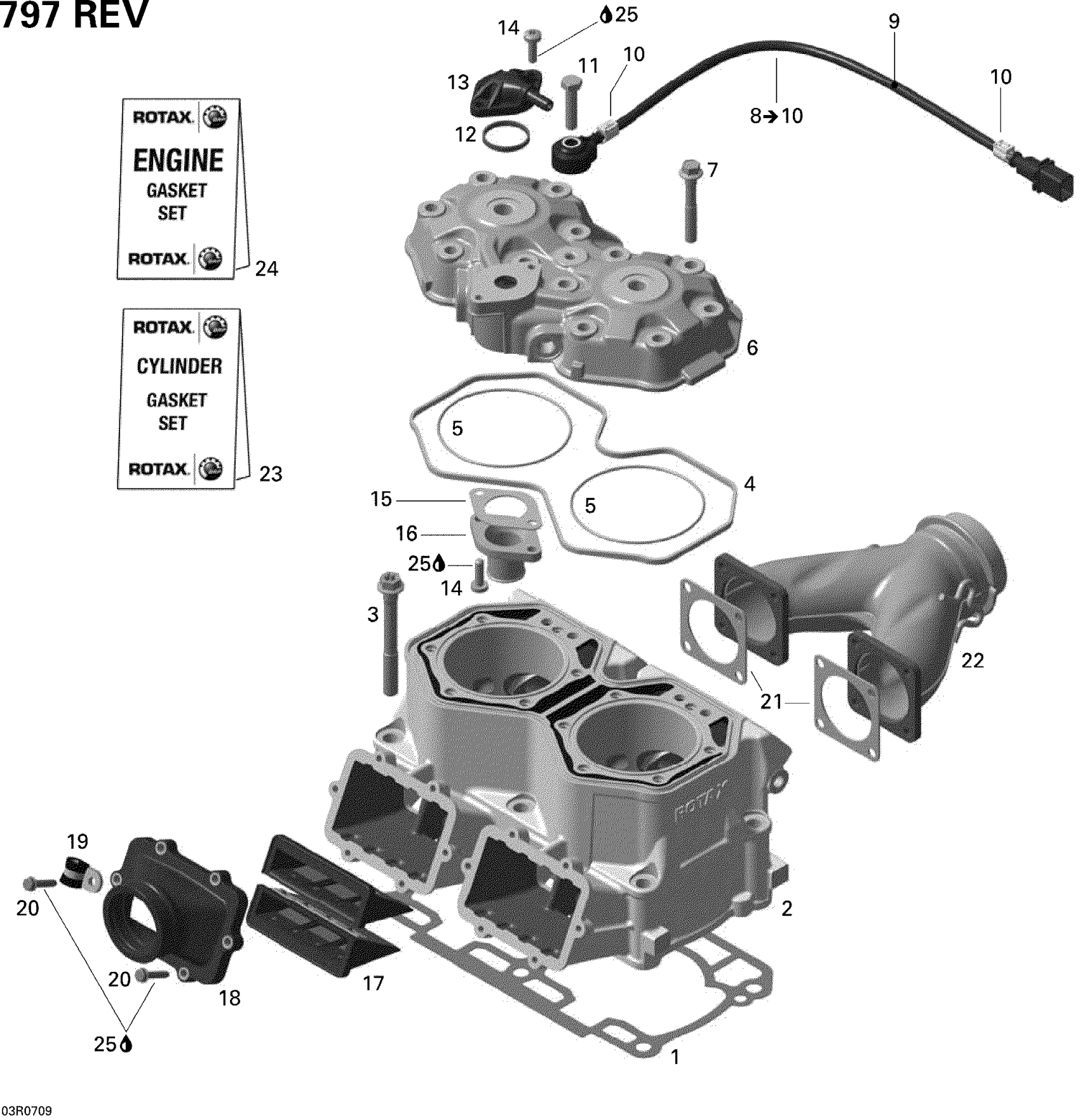

Ski-Doo Summit Adrenaline 800R, 2007 Cylinder and Cylinder Head Diagram

#

Description
Price

1

Double Gasket 0.5 mm

420430080

$25.35

1

Double Gasket 0.6 mm

420430081

$27.66

1

Double Gasket 0.7 mm

420430082

$34.58

1

Double Gasket 0.8 mm

420430083

$34.58

2

REBUILD-CYLINDER NICAS 797 07-09 - Call your local BRP dealership This part replaces 420623240.

421000666

Unavailable

2

REBUILD-CYLINDER NICAS 797 07-09 - Call your local BRP dealership This part replaces 420623240.

421000666

Unavailable

3

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.66

4

O-Ring

420430040

$5.69

5

O-Ring | Included in gasket kit

420931410

$2.67

6

Cylinder Head Cover

420613925

$274.99

7

Hex. Screw M8 X 56.5

420941627

$8.34

8

Knock Sensor Ass'y

420664035

Unavailable

9

TUBE - Call your local BRP dealership

420460010

Unavailable

10

CLIP - Call your local BRP dealership

420960890

Unavailable

11

Hex. Screw M8 X 35

207083544

$0.92

12

Gasket

420630780

$4.00

13

BENT OUTLET SOCKET - Call your local BRP dealership

420822370

Unavailable

14

Torx Flange Screw M6 X 20

420441386

$2.06

15

Gasket

420850338

$10.28

16

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

17

Reed Valve Ass'y

420924798

$39.20

18

Intake Socket This part replaces 420667109.

420667276

$73.05

19

Open Clamp

414176000

$1.86

20

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.05

21

Gasket

420430480

$13.06

22

Exhaust Manifold

420673370

Unavailable

23

Gasket Set, Cylinder

420892477

$158.43

24

Gasket Set, Engine

420892472

$343.05

25

Loctite 243, 10 ml

293800060

$20.77
