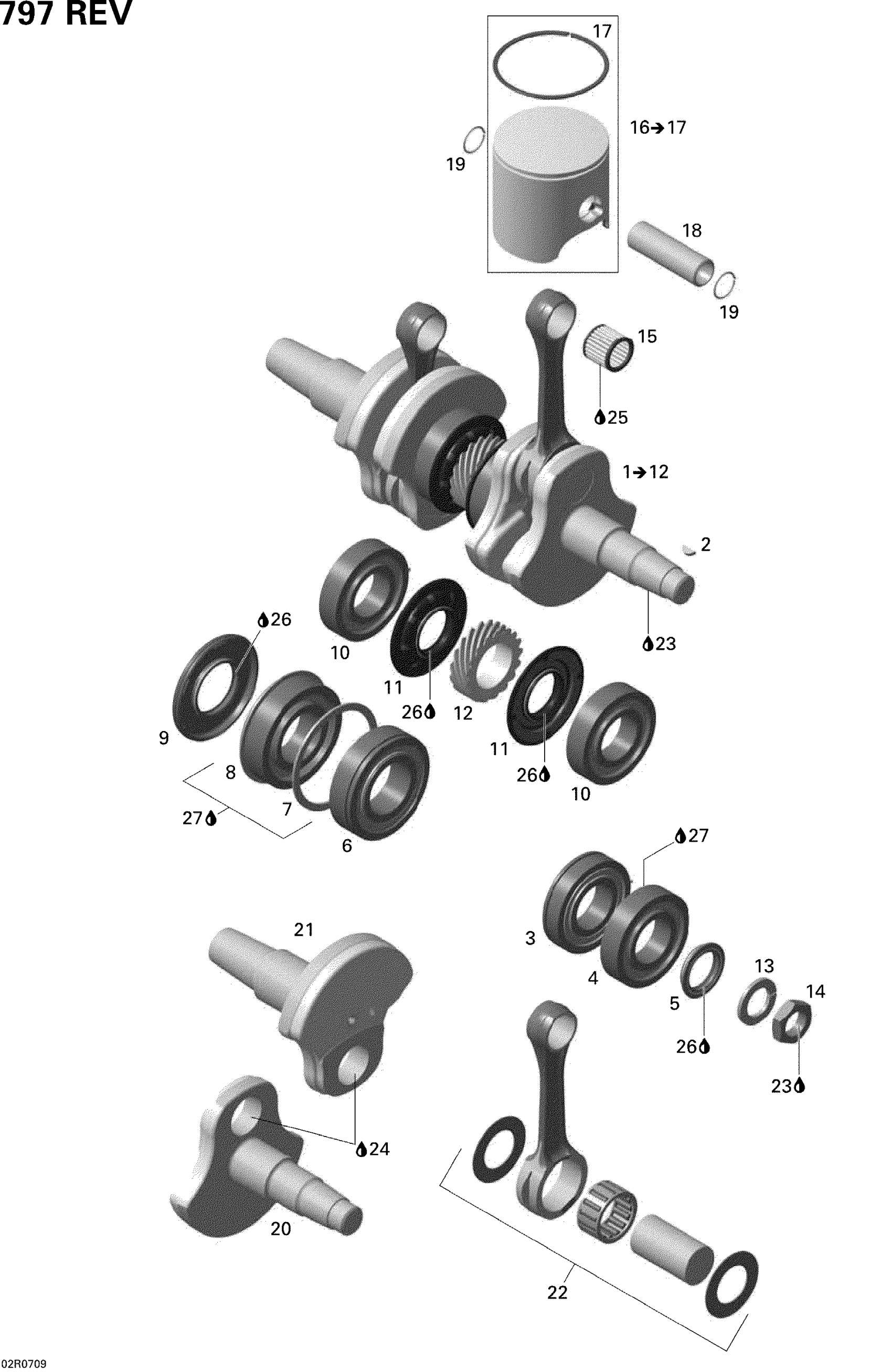

Ski-Doo Summit Adrenaline 800R, 2007 Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 to 12

420890732

Unavailable

2

Woodruff Key

420246015

$3.01

3

Ball Bearing Sealed, 6207

420832673

$94.00

4

Ball Bearing 6207 | With drive pin

420832575

$49.22

5

Oil Seal

420931795

$16.39

6

Ball Bearing | With drive pin

420832602

$94.00

7

Washer

420926190

$9.37

8

Ball Bearing | With drive pin

420832702

$83.55

9

Oil Seal | Included in gasket kit

420931284

$22.36

10

Ball Bearing 6207 | With drive pin

420832575

$49.22

11

Oil Seal

420931455

$33.55

12

CENTRAL GEAR - Call your local BRP dealership

420834565

Unavailable

13

Lock Washer, 22 mm

420945759

$1.55

14

Hex. Nut, M22 X 1.5

420842239

$14.27

15

Needle Bearing

420832800

Unavailable

16

Piston Ass'y | Includes 16 to 17

420890720

Unavailable

17

Semi-Trapez Ring

420815410

$64.15

18

Piston Pin

420916480

$36.54

19

Piston Circlip | Included in gasket kit

420845467

$3.74

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

ROD REPAIR KIT, MAG SIDE - Call your local BRP dealership

420890733

Unavailable

22

ROD REPAIR KIT, PTO SIDE - Call your local BRP dealership

420890734

Unavailable

23

Loctite 243, 10 ml

293800060

$20.77

24

Sealant Loctite 648

219703000

$35.72

25

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74

26

Petamo Grease, GHY133N, 400 g

420899271

$57.17

27

Isoflex Grease, TOPAS NB52, 50 g

293550021

$48.72
