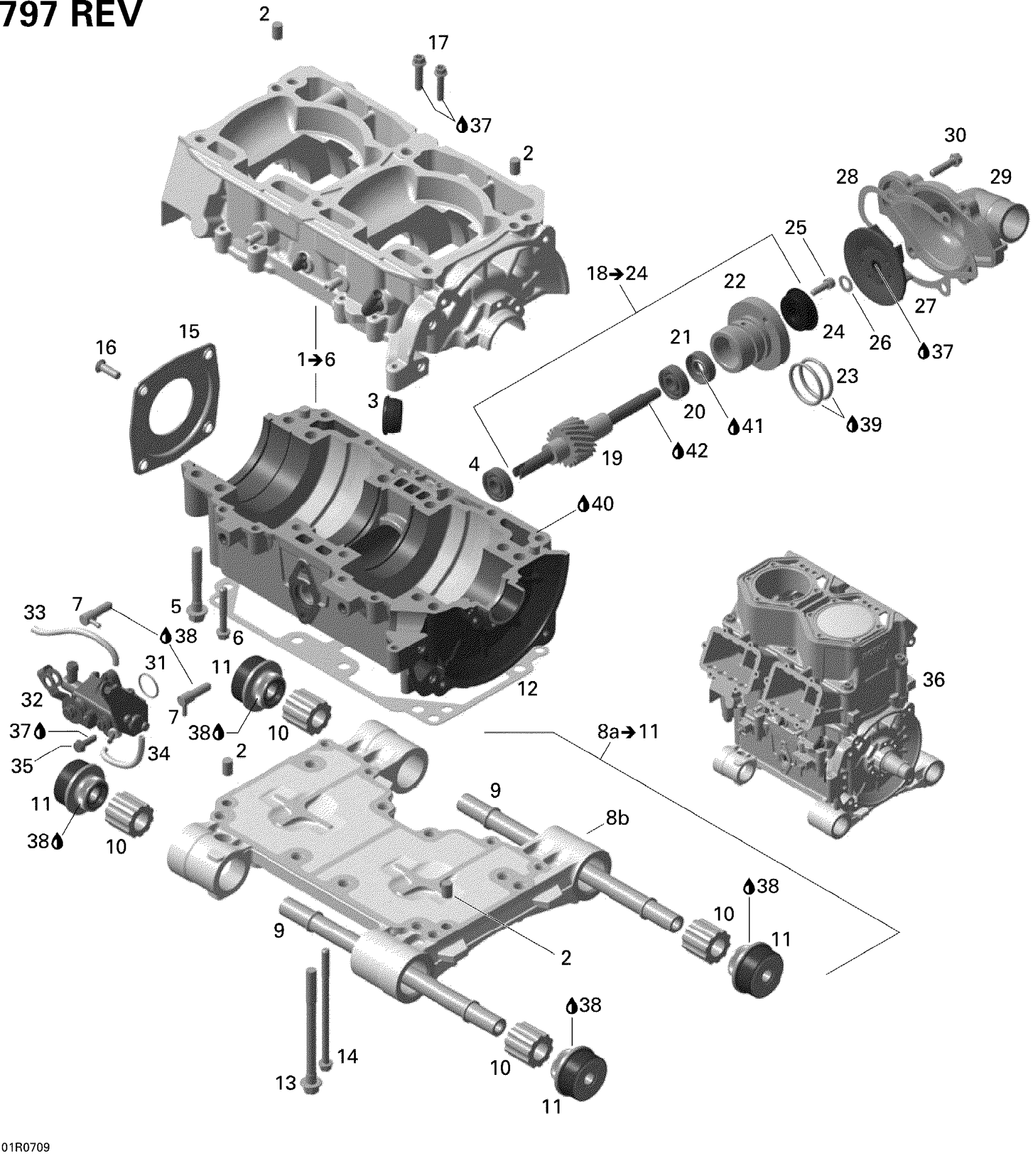

Ski-Doo Summit Adrenaline 800R, 2007 01- Crankcase, Water Pump And Oil Pump Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 6

420890743

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

Cable Grommet

420860965

$14.28

4

Ball Bearing

420232100

$20.99

5

Hex. Screw M8 X 56.5

420941627

$8.57

6

Torx Flange Screw M6 X 40

420440282

$3.17

7

Check Valve

420956511

$35.99

8a

ENGINE BASE PLATE ASS'Y - Call your local BRP dealership | Includes 8a to 11

420812681

Unavailable

8b

Not Available As Spare Part - Friction Washer

Unavailable

9

Rod Threaded

420929580

Unavailable

10

Damper

512060182

Unavailable

11

RUBBER MOUNT - Call your local BRP dealership

512059777

Unavailable

12

Gasket Engine Support

420430070

$23.99

13

Screw M8x105

420941518

$10.60

14

Torx Flange Screw M6 X 105

420440612

$7.41

15

Oil Seal Cover

420812422

$14.83

16

Screw M6 X 20

420941436

$3.17

17

Torx Flange Screw M6 X 25

420440234

$3.06

18

WATER PUMP/OIL PUMP SHAFT ASS'Y | Includes 13 to 19 This part replaces 420837676.

420837677

$232.99

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Ball Bearing

420232100

$20.99

21

Oil Seal

420230195

$15.36

22

Not Available As Spare Part - Friction Washer

Unavailable

23

O-Ring

420950890

$4.44

24

Rotary Seal

420650371

$43.49

25

Allen Screw M5 x 16

420840514

$1.90

26

Washer 8.4

420944033

$1.01

27

Water Impeller

420922805

$37.99

28

Joint Couv.Pom.*Gasket Cover Water Pump This part replaces 420430050.

420430051

$14.28

29

Water Pump Housing

420822280

$62.49

30

Torx Flange Screw M6 X 25

420440234

$3.06

31

O-Ring

293300041

$8.57

32

Oil Pump Ass’y

420888774

$459.99

33

Oil Hose 1500Mm Long

219704404

$17.26

34

Oil Hose 1500Mm Long

219704404

$17.26

35

Taptite Screw M5 X 16

420941928

Unavailable

36

Short Block 797 REV

420079701

Unavailable

36

REBUILD-CYLINDER-SHORT BLOCK 797 REV - Call your local BRP dealership

421000645

Unavailable

36a

Bottom End Ass'y

420079710

Unavailable

37

Loctite 243, 10 ml

293800060

$21.49

38

Sealant Loctite 648

219703000

$45.99

39

Dow Corning 111, 150 g

413707000

$59.99

40

Loctite 5910, 300 ml

293800081

$57.99

41

Petamo Grease, GHY133N, 400 g

420899271

$67.99

42

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99
