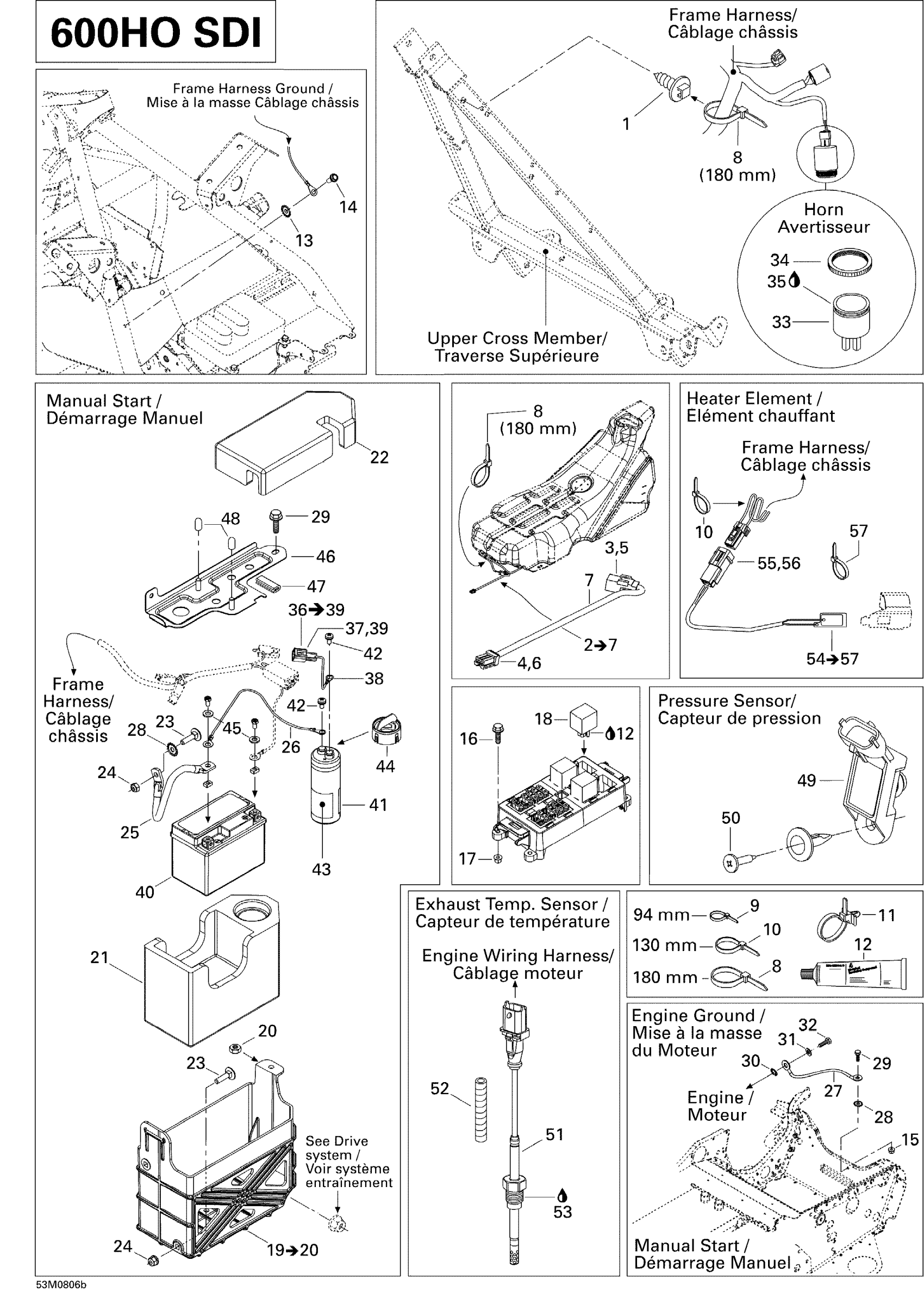

Ski-Doo Summit Adrenaline 600HO SDI, 2008 10- Electrical Accessories 2 Diagram

#

Description
Price

1

Mount Dart

293730040

$1.04

2

TAIL LIGHT HARNESS - Call your local BRP dealership | Includes 2 to 7

515176380

Unavailable

3

Male Terminal

515175232

$1.58

4

Female Terminal

515175231

$4.39

5

Male Housing, 3 Circuits

515175494

$16.18

6

Female Housing, 3 Circuits

515175495

$16.18

7

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

8

Tie-Rap 180 mm

414115200

$0.11

9

Tie Wrap 94 mm | 4X4

293750001

$1.03

10

Tie Wrap 142 mm

293750002

$1.25

11

Tie-Rap 173 mm

293750009

$1.04

12

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

13

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

14

Hex. Flange Screw M6 X 12

210261250

$1.90

15

Elastic Stop Nut M6

232561414

$0.55

16

Hex.Flange Screw M5 X 20

207652044

$1.90

17

Hex. Flange Elastic Nut M5

233251414

$1.04

18

Relais *Relay This part replaces 410113604.

515177672

$46.49

19

BATTERY SUPPORT - Call your local BRP dealership | Includes 11 to 12

515176423

Unavailable

20

Elastic Stop Nut M6

232561414

$0.55

21

CAPACITOR SUPPORT - Call your local BRP dealership | Manual Start

515176190

Unavailable

22

COVER - Call your local BRP dealership | Manual Start

515176114

Unavailable

23

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

25

Ground Wire

515175749

$20.99

26

GROUND HARNESS, CAPACITOR - Call your local BRP dealership | Manual Start

515176119

Unavailable

27

BATTERY ASSISTED GROUND CABLE - Call your local BRP dealership | Manual Start

515176276

Unavailable

28

Lock Washer Serrated M6

250200041

$1.15

29

Hex. Flange Screw M6 X 16

207661644

$0.74

30

Serrated Lock Washer 8 mm

234481608

$1.15

31

Flat Washer 8 mm

234081410

$0.83

32

Hex. Screw M8 x 16

207181644

$1.15

33

HORN - Call your local BRP dealership

515176035

Unavailable

34

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

35

Silicone Sealant 51388, 300 ml

296000309

$36.99

36

CAPACITOR HARNESS - Call your local BRP dealership | Manual Start, Includes 36 to 39

515176120

Unavailable

37

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

38

Ring Terminal

515175504

$9.12

39

MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership

515175509

Unavailable

40

Battery 12 Volt 4 Ah

415130961

Unavailable

41

CAPACITOR - Call your local BRP dealership

515176387

Unavailable

42

MECHANICAL SCREW - Call your local BRP dealership | Manual Start

515176388

Unavailable

43

CAPACITOR DECAL - Call your local BRP dealership

516002976

Unavailable

44

CAP - Call your local BRP dealership

515176211

Unavailable

45

Flat Washer M5

234051410

$0.53

46

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

47

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

48

Cap

515176141

$3.09

49

Pressure Sensor

270600040

$199.99

50

Tuflock Phillips Plastic Screw

414745900

$1.69

51

Temperature Sensor

515176132

$339.99

52

Tubing 6 Mm 3000Mm Long

219704425

$13.75

53

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

54

HEATER ELEMENT SUPPORT ASS'Y - Call your local BRP dealership | Includes 50 to 53

515176653

Unavailable

55

Male Terminal Housing, 2 Circuits

515175654

$9.12

56

Male Terminal

515175232

$1.58

57

Tie Wrap 94 mm | 4X4

293750001

$1.03
